European engineering mandates often reach the manufacturing bay as a specific numeric code: VDI 34. For hardware developers navigating the transition from a solitary prototype to a high-volume industrial batch, the choice of surface texture is a strategic decision that governs brand identity and functional durability. In the uncompromising world of Injection molding surface finishes, the vdi 3400 surface finish standard—originated by the Verein Deutscher Ingenieure (Society of German Engineers)—remains the undisputed global benchmark for Electrical Discharge Machining (EDM) textures. Unlike the SPI standard, which prioritizes manual polishing and gloss, the VDI scale defines the "roughness soul" of a part, utilizing the physics of spark erosion to create uniform matte surfaces. Jucheng Precision operates as a high-fidelity texturing house, utilizing elite Swiss EDM technology to ensure your designs achieve the exact tactile energy and specularity required for professional medical and automotive hardware.

Molecular consistency across complex 3D geometries is the primary challenge of modern texturing. Amateurs often rely on subjective sandblasting, which leads to "Texture Drift" across large batches. Professional vdi 3400 surface finish execution relies on the mathematical control of electrical pulses between a copper or graphite electrode and the tool steel. This process creates millions of microscopic craters that diffuse light perfectly, effectively masking molding imperfections and providing a non-slip grip. Jucheng Precision eliminates manufacturing doubt by performing a surgical DFM audit on every textured project, ensuring your draft angles are calibrated for the specific depth of the VDI grain. This guide deconstructs the VDI scale, the physics of spark erosion, and the strategic advantages of choosing matte over gloss to secure a high-yield market launch.

content:

The VDI Scale: Mapping Roughness and Specularity

Physics of the Spark: How EDM Textures are Born

Strategic Masking: Hiding Sink Marks and Fingerprints

Dimensional Guardrails: Draft Angles for Deep Textures

JUCHENG Protocol: Swiss EDM Mastery and Texture Consistency

The VDI Scale: Mapping Roughness and Specularity

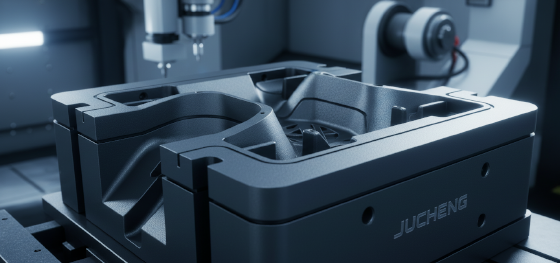

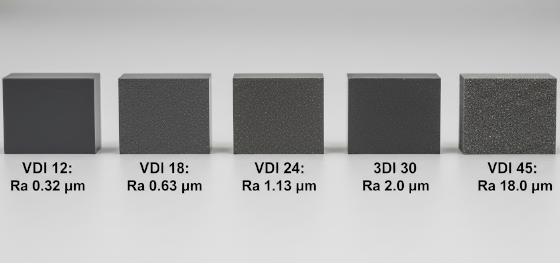

Numerical certainty is the bedrock of the vdi 3400 surface finish system. While the North American SPI standard ranges from A to D, the VDI system uses a scale of 12 to 45, where higher numbers represent increasing roughness. This scale is directly tied to the "Roughness Average" (Ra) and the "Ten-Point Mean Roughness" (Rz), providing engineers with a dispassionate way to specify surface energy. Jucheng Precision provides the following definitive comparison matrix for early-stage design routing:

Observing the relationship between the VDI number and Ra values reveals a logarithmic progression. Every 6-unit increase in the VDI scale effectively doubles the surface roughness. Jucheng Precision recommends VDI 24 to VDI 30 for most consumer electronics, providing a tactile premium that resists the "Greasiness" associated with polished plastics while maintaining easy part ejection.

Physics of the Spark: How EDM Textures are Born

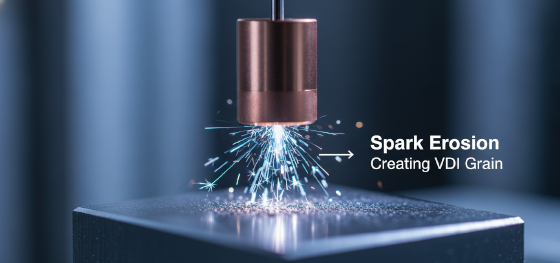

Mechanical replication of a vdi 3400 surface finish is an act of controlled destruction. Electrical Discharge Machining (EDM) utilizes a shaped electrode—typically copper or high-density graphite—submerged in a dielectric fluid. As the electrode approaches the mold steel, a high-frequency electrical pulse jumps the gap, vaporizing the metal and creating a microscopic crater. The "Roughness" of the texture is dictated by the energy and duration of these sparks. High-energy sparks create the deep valleys of VDI 45, while low-energy pulses produce the silky matte of VDI 18. Unlike sandblasting, which is a kinetic impact process that rounds off sharp mold details, EDM texturing is a non-contact process that preserves the geometric integrity of tight-tolerance ribs and bosses. At Jucheng Precision, we calibrate our EDM generators to ensure a randomized crater distribution, preventing the "Directional Grain" that ruins the look of low-quality textured parts. We provide the material science needed to ensure your matte finish is as structurally sound as it is visually uniform.

Strategic Masking: Hiding Sink Marks and Fingerprints

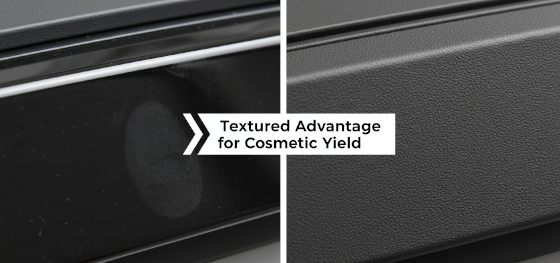

Yield optimization often relies on the visual deception of texture. Glossy surfaces are the ultimate critics of Injection molding defects; even a 0.01mm sink mark or a minor weld line becomes glaringly obvious under specular reflection. Utilizing a vdi 3400 surface finish between VDI 27 and VDI 33 act as a "Cosmetic Shield." The millions of randomized micro-craters scatter incoming light in every direction, effectively blurring the visual transition between thick and thin wall sections. This "Diffused Authority" allows engineers to pass cosmetic audits on parts that would be rejected in a high-gloss finish. Furthermore, VDI textures are naturally oil-resistant. While a polished smartphone case becomes smeared with fingerprints within seconds, a VDI 24 textured housing maintains its pristine industrial look through months of field use. We don't just "apply texture"; we engineer your surface to survive the messy reality of human contact, increasing your market-ready yield.

Dimensional Guardrails: Draft Angles for Deep Textures

Ejection violence is the inevitable penalty for under-drafted textures. Every VDI crater in the steel mold acts as a microscopic "Hook" that grabs the plastic during the cooling phase. If your design features vertical walls with zero taper, the ejection pins will physically "Shear" the texture off the part as it is pushed out, resulting in "Drag Marks" and shiny streaks. Manufacturing sovereignty requires respecting the "Draft-to-Depth" ratio. A standard vdi 3400 surface finish of VDI 24 typically requires a minimum draft angle of 1.5 to 2.0 degrees. Moving to a coarse VDI 36 texture necessitates at least 4.0 degrees of taper. Jucheng Precision eliminates these "De-molding Nightmares" by performing a surgical draft audit during the RFQ stage. We calculate the "Projected Interlock Force" of your chosen VDI grade and suggest geometry tweaks to ensure your parts glide out of the tool with zero scuffing. We treat every degree of draft as a structural insurance policy for your cosmetic finish.

JUCHENG Protocol: Swiss EDM Mastery and Texture Consistency

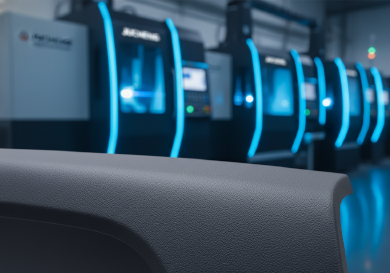

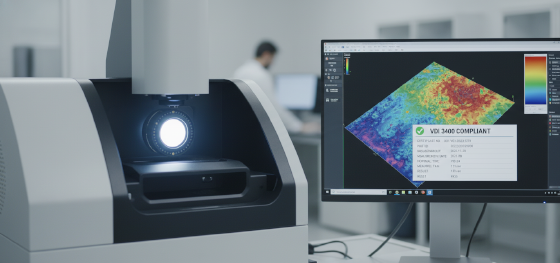

Manufacturing excellence at Jucheng Precision is built on the foundation of elite equipment and artisan process control. We don't just "spark" steel; we curate haptics. Our facility, housing over 150 CNC machines and 25 high-precision EDM centers, utilizes AgieCharmilles digital generators to maintain +/- 1% consistency in VDI crater depth across the entire mold cavity. This is vital for multi-part assemblies where a VDI 24 housing from the front of the mold must match a VDI 24 door from the back. We provide full material lot traceability and digital profilometer reports for every batch, ensuring your project meets the strict standards of the automotive and medical industries. Stop gambling your tactile brand identity with shops that treat VDI as a "best guess." Not sure if your draft angles support a VDI 33 finish? Upload your 3D CAD file to JUCHENG today for a Free DFM Review. Our experts will identify the optimal Injection molding surface finishes for your budget, ensuring your transition to production is seamless, consistent, and retail-ready.
