Sending CAD files to a foundry with a universal "Ra 0.8" roughness requirement stamped across the entire part guarantees a violently inflated price quote. Hardware founders routinely mistake raw metal injections for mirror-polished smartphone chassis, demanding impossible microscopic perfection directly out of the steel mold. Consulting a reliable die casting surface finish chart prevents this massive financial bleeding by aligning your cosmetic expectations with brutal manufacturing reality. Insisting on extreme smoothness where it does not mathematically matter forces your supplier to bolt the component into a milling machine, racking up completely unnecessary labor hours.
Evaluating exact die casting surface finish metrics dictates whether a hydraulic pump will securely hold pressure or leak oil everywhere. Raw injected metal possesses a natural, microscopic orange-peel texture. Operating our massive Shenzhen precision hub, JUCHENG actively prevents tolerance disasters by educating engineering teams on exactly where to deploy expensive machining versus where to rely on raw textures.
Designing profitable commercial hardware requires ruthless pragmatism. Let's decode exactly what Ra values actually mean on the factory floor, compare untreated metal against polished variants, and learn how bulk mechanical tumbling drastically lowers your final invoice.

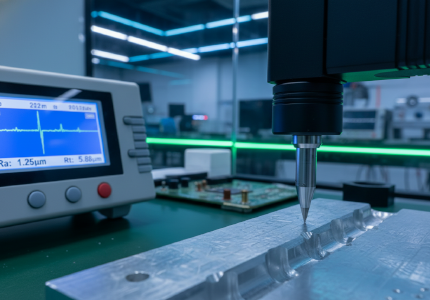

How do quality inspectors mathematically quantify a smooth tactile feel? Using a highly sensitive profilometer probe to drag across the metal, calculating the microscopic average height deviations between the tiny peaks and deep valleys located along the exterior skin.
Hardware feels smooth to a human hand long before it satisfies strict aerospace requirements. Engineers denote this microscopic variation using the Ra (Roughness Average) metric, typically measured in micrometers (µm) or microinches (µin). Lower numerical values represent phenomenally smoother, tightly packed molecular surfaces.
Misunderstanding this fundamental metric destroys critical watertight seals. If your design utilizes a rubber O-ring to block pressurized water, compressing that rubber against a jagged, high-Ra surface creates microscopic tunnels where fluid easily escapes. Knowing exactly when to specify lower Ra values ensures your product actually functions as intended.

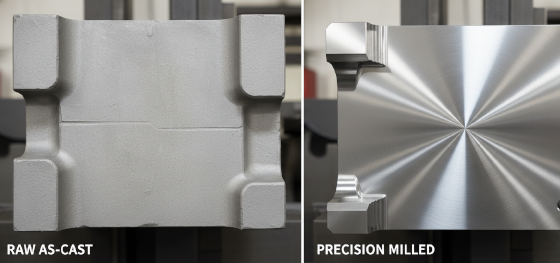

Chart Comparison: As-Cast Metals vs CNC Milling
Pinpointing the exact moment your design requires aggressive secondary cutting saves immense capital. The standard die casting surface finish chart provided below outlines the physical limits of raw injection versus the precision of wet milling.
Manufacturing Phase
Typical Ra Value (µm)
Primary Engineering Use Case
Raw As-Cast Aluminum
1.6 to 3.2
Internal brackets, standard paint-ready enclosures.
Raw As-Cast Zinc
0.8 to 1.6
Cosmetic consumer hardware ready for heavy electroplating.
Requesting a 0.8 Ra specification across a massive, complex automotive engine casing forces the factory to CNC mill every single exterior face. Smart procurement directors designate high-Ra limits for non-visible internal walls, reserving the expensive, ultra-smooth 0.8 Ra callouts exclusively for vital fluid junctions.
Altering the Value: How Tumbling Softens the Metal

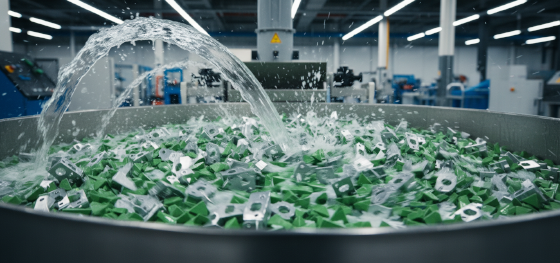

How do high-volume factories cheaply improve the overall tactile smoothness of raw parts? Throwing thousands of raw enclosures into automated massive bowls loaded with aggressive ceramic stones effectively sands down the jagged microscopic peaks uniformly across the entire batch.
Relying exclusively on expensive 5-axis CNC machining just to remove sharp manufacturing burrs destroys your profit margins. Foundries deploy vibratory finishing die casting protocols to aggressively batter the raw metal components, lowering the baseline roughness effectively without any human intervention.
Creating an excellent foundation for thick powder coating requires exactly this type of mechanical prep. The tumbling stones create a highly uniform, slightly matte texture that helps heavy industrial paint layers bite furiously into the metal, preventing premature flaking during outdoor deployments.
JUCHENG Hub: Download Your Manufacturing Guide
Why should engineers trust Jucheng Precision to validate their blueprint tolerances? Because we maintain deep expertise in both high-pressure injection and precision milling, allowing us to actively identify and correct unnecessarily expensive roughness callouts before tooling begins.
Submitting a poorly toleranced CAD file to a low-tier broker results in massive overcharging. They will happily accept your impossible demands and invoice you for hundreds of hours of unnecessary milling. Our dedicated engineering team actively challenges bad specifications, ensuring you only pay for precision where it physically matters.
Stop guessing how your raw hardware will actually feel in the hand. Send your complex assemblies to our facility today. We will provide a ruthless, mathematically driven DFM analysis, align your blueprint with commercial reality, and deliver flawlessly optimized structural components.
FAQ: Honest Answers About O-Rings and Draft Angles
Will an excessively rough raw casting physically damage a rubber O-ring? Yes. Jagged microscopic peaks act like tiny razor blades under heavy compression, physically tearing the elastomer seal apart and causing catastrophic fluid leaks over time.
Does the steel mold wear out and cause the parts to become rougher? Absolutely. Severe thermal fatigue creates micro-cracks (heat checking) on the H13 steel cavity. These cracks transfer directly onto the injected metal, slowly degrading the overall Ra value over millions of cycles.
Can thick industrial powder coating hide a terrible, high-Ra surface? Heavy powder coats excel at masking minor visual imperfections and minor flow marks, but they cannot hide deep structural gouges or severe ejection pin dragging marks.
Why do the side walls of a deep metal box feel rougher than the bottom? Because the side walls require drafting angles to successfully slide out of the steel mold. The mechanical friction during violent ejection naturally creates a slightly rougher vertical drag texture.
