Every great plastic product you have ever held in your hand was born from an unsung hero. An object of incredible precision and complexity that most people will never see. This hero is the tool. The mold.
And in the world of agile product development, the ability to create this hero quickly and affordably is a superpower. This is the craft and science of rapid prototype tooling.
It is not just a faster version of traditional tooling. It is a different philosophy. A process that combines advanced technology with skilled craftsmanship to turn a block of metal into your project's most valuable asset. Let's go inside the tool shop.
A tool is born not in the workshop, but in the mind of a tool designer. This is a highly specialized form of engineering.

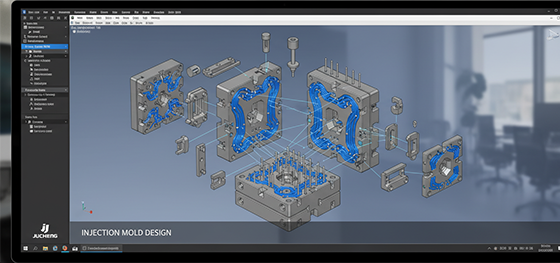

Our engineers take your 3D part design and build a complex, three-dimensional world around it. This is the mold design. It is a digital blueprint that includes every detail.
It defines the parting line where the mold will open. It designs the gate where the plastic will enter. It plans the cooling channels that will control the part's temperature. It places the ejector pins that will push the part out. For a complex design, a single mold can consist of dozens or even hundreds of individual, precisely designed components.
Carving the Heart: High-Speed CNC Machining
The heart of any Rapid Tooling is its core and cavity. These are the two halves that form the negative space of your part's shape. And the fastest way to create them is with high-speed CNC machining.
We start with a solid block of high-grade aluminum. This block is placed inside one of our advanced 5-axis CNC machines.

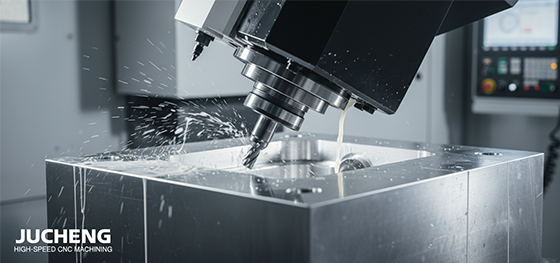

Guided by the digital blueprint, a series of cutting tools, spinning at tens of thousands of RPM, begin to carve the metal. The machine works with incredible speed and precision. It first uses larger tools for "roughing," quickly removing large amounts of material. Then, it switches to smaller, finer tools for "finishing," creating the final, precise surface of the mold.
This direct machining process is what puts the "rapid" in rapid tooling.
Refining the Details: EDM and Wire Cutting
But what about features that a spinning cutting tool cannot create? A very sharp internal corner. A very deep and narrow rib.

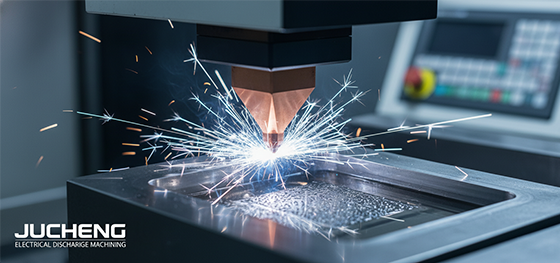

For these "impossible" features, we use the power of electricity. Electrical Discharge Machining (EDM) is a process that uses a precisely shaped electrode to erode metal with sparks. It can create razor-sharp internal corners and fine textures that are impossible to mill.
Wire cutting, or Wire EDM, uses a thin, energized wire to slice through the metal. It is used to create extremely precise openings for features like slides and lifters. These secondary processes are what give a tool its true complexity and capability.
Solving the Puzzle: Final Mold Assembly
Creating the core and cavity is just part of the story. A finished tool is a complex assembly of many different parts.

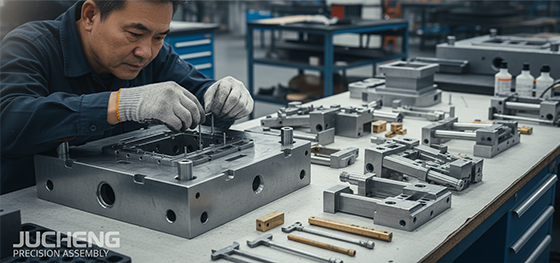

A skilled toolmaker must take all the CNC and EDM machined components and assemble them into the master mold base. This is a task of incredible precision.
They must fit the ejector pins, which must move smoothly. They must assemble the sliding mechanisms for any undercuts. They must connect the cooling channels. It is like building a high-precision, three-dimensional puzzle.
The final step is spotting and polishing. The two halves of the mold are brought together to ensure a perfect, leak-proof seal. The cosmetic surfaces of the cavity are polished to the specified finish. This final, human touch is what guarantees a perfect part.
More Than a Mold: A Strategic Asset
A finished piece of rapid prototype tooling is more than just an object. It is a strategic asset for your business.
It is the physical embodiment of your design, ready to replicate it thousands of times. It is a tool that allows you to get real, production-grade parts in your hands in a matter of days.
At JUCHENG, we are not just machinists. We are toolmakers. We understand the craft and science that goes into creating these remarkable assets. Our in-house tooling capability gives us full control over the quality and speed of your project, from the first cut of aluminum to the final, perfect plastic part.
