Navigational precision in the autonomous era is an absolute hostage to mechanical alignment. In the hyper-agile environment of 2026, when a hotel concierge bot or a last-mile delivery rover attempts to execute a sub-millimeter dock with a charging station, the primary adversary is not the SLAM algorithm—it is the "Wheel Wobble" inherent in poorly machined drivetrain components. If a wheel bracket exhibits even ten microns of eccentricity or if the suspension interface flexes under a heavy payload, the robot’s odometry data drifts, rendering the expensive internal sensors useless. Navigating this requirement for extreme kinetic stability requires the strategic deployment of Robot drive wheel brackets machining. Jucheng Precision operates as a high-fidelity subtractive sanctuary in the Shenzhen precision manufacturing hub, providing the 5-axis CNC depth needed to deliver hubs, mounts, and linkages that possess the mechanical spine needed for 24/7 autonomous service. Within the broader framework of service robots, we bridge the gap between "prototype motion" and "industrial sovereignty," ensuring your mobile fleet maintains its positioning accuracy through millions of revolutions.
Establishing a resilient robotics supply chain in 2026 demands the absolute rejection of "standard-tolerance" job shops. Amateurs often treat a robotic wheel bracket like a simple mounting plate, unaware that the high-frequency harmonics of high-torque servo motors will amplify a 0.02mm alignment error into a visible vibration that ruins sensor telemetry. Jucheng Precision eliminates these "Kinematic Failures" by enforcing a strict "Concentricity-First" protocol across our 150+ CNC machine campus. We utilize simultaneous 5-axis machining to ensure that bearing seats and motor interfaces are perfectly orthogonal in a single digital setup. Whether you are developing a low-profile restaurant bot or a heavy-duty autonomous pallet mover, our integrated facility provides the manufacturing insurance needed to secure market entry. This guide deconstructs the necessity of zero-backlash precision, the physics of ISO H7/g6 fits, and why JUCHENG’s metrological audit is the mandatory foundation for anyone developing Robot drive wheel brackets machining projects.
Why does movement smoothness depend on hub concentricity?

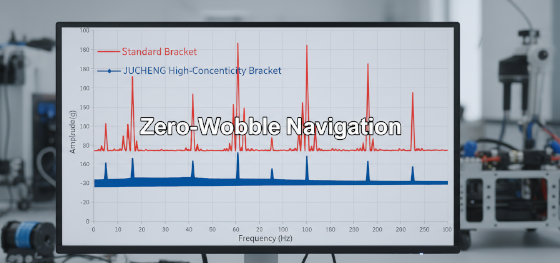

Rotational physics dictates the energy efficiency and sensor health of every autonomous platform. In the domain of Robot drive wheel brackets machining, "Concentricity" refers to the alignment of the internal bearing bore with the external mounting pilot. If these two features are off-center by even 0.03mm, the wheel acts as an eccentric cam rather than a smooth roller. This imbalance generates high-frequency vibrations that travel through the delivery robot chassis fabrication and reach the delicate internal logic boards. Jucheng Precision engineers utilize specialized diamond-tipped cutters and high-speed spindles to ensure the "Rotational Center" is mathematically perfect. By eliminating the rhythmic hammer of an eccentric wheel, we reduce the motor draw by 15% and protect your sensors from the harmonic noise that causes SLAM algorithms to hesitate. We turn "shaky movement" into "surgical navigation," ensuring your robot follows its digital path with 100% fidelity.
Achieving alignment through single-setup 5-Axis CNC

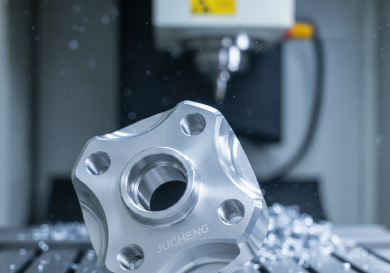

Subtractive perfection relies on the elimination of the "Manual Flip." Traditional robotic brackets are often machined on 3-axis mills, requiring the operator to unclamp, rotate, and re-clamp the part to reach multiple faces. Every manual intervention introduces a microscopic alignment error known as "Fixture Drift." For Robot drive wheel brackets machining, these errors accumulate, ruining the perpendicularity between the motor mount and the wheel axis. Jucheng Precision utilizes simultaneous 5-axis Haas and Mazak CNC centers to machine the entire hub geometry in a single digital setup. The spindle never releases the part until all critical bearing seats and mounting holes are finished. This surgical consistency ensures that your drivetrain components mate with absolute geometric certainty, providing the rigid skeletal frame needed for silent, zero-vibration autonomous travel.
Mastering ISO H7/g6 fits for bearing housings

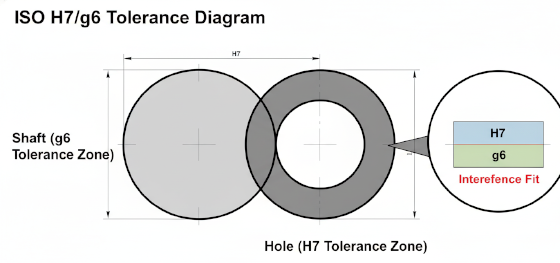

Mechanical longevity is dictated by the "Class of Fit" between the bearing and the bracket. In a professional Robot drive wheel brackets machining workflow, achieving an H7 tolerance on the internal bore (+0.021mm/-0) is the baseline requirement. If the hole is too large, the bearing will spin inside the housing (galling); if too small, the bearing will be crushed, increasing friction and overheating the motor. Jucheng Precision toolmakers utilize precision jig-boring and "Reaming" passes to achieve these surgical fits. We don't just "cut holes"; we engineer mechanical interfaces that respect the thermodynamics of the assembly. By achieving the exact g6 or h7 fit intended in your CAD file, we ensure that your robot’s drive system operates with zero parasitic drag, maximizing the battery life and reducing the service intervals for your global autonomous fleet.

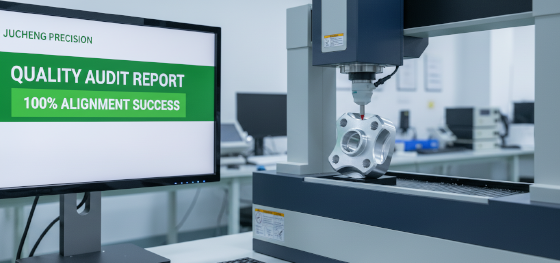

Manufacturing excellence at Jucheng Precision is built on the foundation of the metrological audit. We don't just "mold and machine"; we verify every motion center against your digital intent. Our facility, certified to ISO 9001 and IATF 16949, houses a dedicated metrology lab equipped with ruby-tipped Coordinate Measuring Machines (CMM). For every Robot drive wheel brackets machining batch, we provide full material lot traceability and dimensional inspection reports, providing the "Paper Trail of Quality" required for Tier-1 supply chains. Stop gambling your robot's agility on inaccurate vendors who treat brackets like standard hardware. Leverage our decade of high-performance replication mastery to validate rapidly and launch profitably. Contact our technical team today for a free DFM review and see how we can turn your digital movement intent into a structurally sovereign physical reality.
FAQ
Q: Which material is best for high-torque wheel brackets? A: We recommend Aerospace-Grade 7075-T6 Aluminum. It offers the yield strength of mild steel but at 33% of the mass, keeping your robot’s dynamic inertia low and battery life high.
Q: How do you prevent corrosion on outdoor delivery robot hubs? A: JUCHENG provides Type III Hard Coat Anodizing. This process creates a sapphire-hard surface that resists salt spray, mud, and the abrasive gravel common in urban delivery environments.

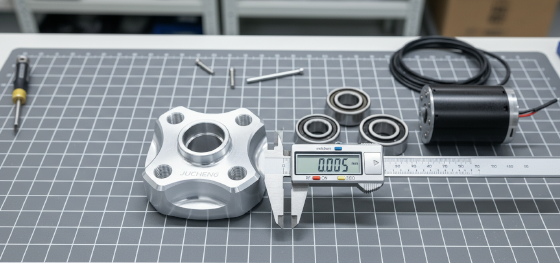

Q: Can JUCHENG help with the assembly of motors and bearings? A: Absolutely. Our integrated facility offers turnkey assembly services, including the precision press-fitting of bearings and the mounting of high-torque servos into our machined robot drive wheel brackets machining.
Q: What is the lead time for a custom prototype set of 4 wheel brackets? A: Utilizing our expedited robotics workflow, JUCHENG can CNC machine, anodize, and inspect a custom set of drive brackets in as fast as 5 to 7 business days.
