Automotive CNC Machining: From Prototyping to IATF Production

The automotive industry moves at the speed of light. In the competitive landscape of CNC machining industry applications, the ability to transition from a digital rendering to a functional, high-performance prototype can define the success of an entire vehicle platform. Whether it is a lightweight engine component for a performance car or a crystal-clear lens for an innovative LED headlight, Automotive CNC Machining is the bridge between aesthetic vision and road-ready reality. It is a sector where "standard" is never enough; where every micron of tolerance impacts fuel efficiency, safety, and brand perception.

At Jucheng Precision, we have centered our manufacturing ecosystem around the rigorous demands of global Tier 1 and Tier 2 suppliers. We understand that automotive engineers are under constant pressure to reduce weight without sacrificing structural stiffness. Operating from our IATF 16949 certified facility, we provide the technical rigor required for complex engine blocks, EV battery enclosures, and the intricate optical components that define modern vehicle lighting. This guide explores the mechanical foundations of automotive fabrication, our specialized expertise in clear polymers, and why JUCHENG’s commitment to a zero-defect culture ensures your designs are delivered with the precision needed for millions of miles.

Success in the automotive supply chain requires more than just machines; it requires a deep investment in process stability. Whether you are building a small batch of racing crankshafts or a thousand high-precision assembly jigs, the integrity of the cut is where your reputation is earned. Let us examine the technical pillars that allow JUCHENG to drive automotive innovation forward.

content:

Rapid Prototyping: Carving Performance from Solid Billet

Optical Precision: JUCHENG’s Specialization in Lighting

The EV Revolution: Machining Lightweight Power Solutions

Unsung Heroes: High-Accuracy Jigs and Inspection Fixtures

The IATF 16949 Standard: Engineering a Zero-Defect Culture

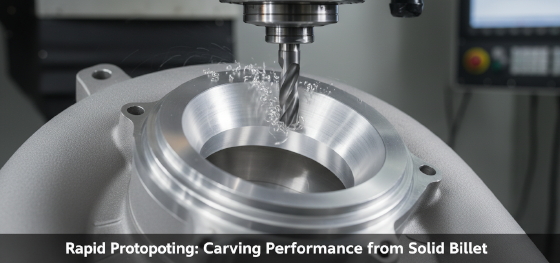

Rapid Prototyping: Carving Performance from Solid Billet

In the early stages of vehicle development, casting and forging are often too slow and expensive for iterative testing. This is where Automotive CNC Machining proves its worth as an agile manufacturing tool. At Jucheng Precision, we specialize in "Billet Prototyping"—machining complex engine blocks, cylinder heads, and turbocharger housings directly from a solid block of 6061-T6 or 7075 aluminum. This process allows engineers to test new thermodynamic designs without the six-month lead time required for a production mold.

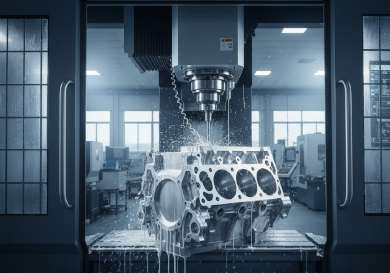

Machining a monolithic engine block is a study in thermal management and tool reach. We utilize our high-torque 5-axis centers to carve intricate internal cooling galleries and oil passages that would traditionally be cast. By using a solid billet, the part benefits from a much finer grain structure and higher density than a cast part, providing the superior strength needed for high-boost racing environments. Our capability for rapid material removal allows JUCHENG to deliver a fully functional, high-precision engine prototype in a matter of weeks. We treat these "hero parts" with extreme technical rigor, ensuring that every valve seat and head surface is flat within microns, allowing your R&D team to push the limits of performance without worrying about material failure. This agility is a cornerstone of our service within the broader CNC machining industry applications portfolio.

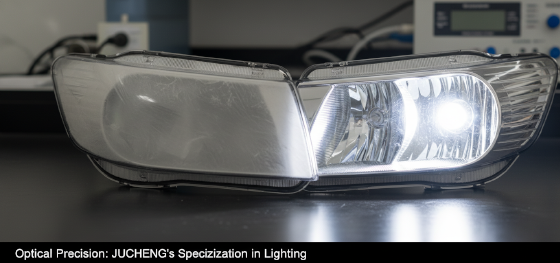

Optical Precision: JUCHENG’s Specialization in Lighting

The visual identity of a modern car is defined by its eyes—the lighting system. Automotive lighting has moved beyond simple bulbs to complex arrays of light pipes, thick-walled lenses, and intricate reflectors. These components must be optically perfect to ensure the LED beam pattern meets global road safety standards. This is where Jucheng Precision truly shines. We have developed a proprietary workflow for CNC Acrylic Machining and Polycarbonate milling specifically for the automotive lighting sector.

Machining a 100mm thick light pipe requires a mastery of internal stress management. If the material overheats, the polymer chains will warp, causing "light leakage" and a ruined aesthetic. JUCHENG technicians utilize diamond-polished tooling and cryogenic cooling to maintain the pristine molecular structure of the plastic. Following the machining cycle, we perform multi-stage Vapor Polishing to achieve a "water-white" transparency that is indistinguishable from an injection-molded part. Our light pipe prototypes allow automotive designers to verify the "luminous intensity" and color uniformity of their designs on a test bench before committing to million-dollar production tooling. This high-fidelity prototyping is a rare capability, making JUCHENG a vital partner for the world's leading luxury car brands.

The EV Revolution: Machining Lightweight Power Solutions

The shift toward Electric Vehicles (EVs) has fundamentally changed the requirements of Automotive CNC Machining. In an EV, every saved gram of weight translates directly to increased range. This has led to a massive demand for thin-walled, high-strength aluminum enclosures and sophisticated thermal management systems. We are no longer just machining gears; we are machining complex battery trays and motor housings that must be both lightweight and perfectly sealed.

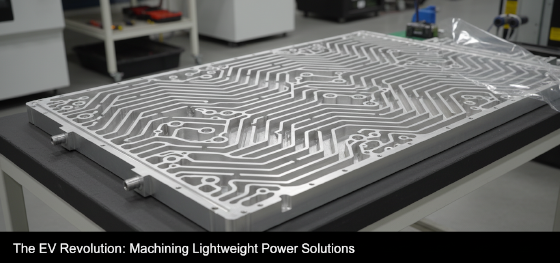

Jucheng Precision specializes in machining "Liquid Cold Plates" for EV battery packs. These components feature labyrinthine internal channels that carry cooling fluid to regulate battery temperature during high-speed charging. Achieving a leak-proof seal on a thin, large-format cold plate is a significant machining challenge. We utilize high-speed 5-axis milling to maintain extreme flatness over the entire surface area, ensuring that the O-ring seals and mating plates bond perfectly. We also produce high-precision busbars and electrical connectors from high-conductivity copper alloys, utilizing our expertise in CNC machining industry applications to manage the high-current demands of the modern powertrain. By combining lightweighting strategies with advanced thermal engineering, JUCHENG helps EV manufacturers build safer, more efficient vehicles that go the distance.

Unsung Heroes: High-Accuracy Jigs and Inspection Fixtures

While the parts on the car get all the attention, the machines that build them are the backbone of the factory. Automotive production lines rely on thousands of custom jigs, assembly fixtures, and inspection gauges to maintain a high-speed rhythm. These "tools for the tools" must be more accurate than the parts they are holding. A robotic assembly jig with a 0.05mm error can lead to an entire production shift of misaligned car doors.

Jucheng Precision is a specialist in large-format industrial tooling for the automotive sector. We machine inspection fixtures that serve as the "Gold Standard" for checking stamped metal body panels. These fixtures often involve complex, multi-component assemblies made from a mix of tool steel and lightweight aluminum, all synchronized to a single master datum. Our 5-axis capability allows us to machine the complex "checking surfaces" that mirror the organic curves of the vehicle’s body. We provide 100% CMM inspection reports for every fixture we build, ensuring that your quality team can trust the measurements coming off the line. This capability ensures that JUCHENG supports the entire automotive product development cycle—from the first design clay to the final quality audit on the assembly floor.

The IATF 16949 Standard: Engineering a Zero-Defect Culture

In the automotive supply chain, quality is not a visual check—it is a documented system. Jucheng Precision operates according to the rigorous IATF 16949 standard. This is the highest global standard for automotive quality, and it represents our commitment to a "Zero-Defect" mindset. For our clients, this certification means that every Automotive CNC Machining project is backed by a proactive risk-management culture. We implement APQP (Advanced Product Quality Planning) and provide full PPAP (Production Part Approval Process) documentation for every production-level order.

This systematic approach involves performing PFMEA (Process Failure Mode and Effects Analysis) to identify and eliminate potential manufacturing risks before they ever reach your factory. We monitor our process stability using Statistical Process Control (SPC), ensuring that if a tool starts to wear, the machine is paused before a single out-of-spec part is made. This level of rigor is essential for safety-critical parts like steering knuckles and brake components. When you partner with JUCHENG, you aren't just buying machining; you are buying the engineered assurance that your parts are safe, compliant, and delivered exactly to spec. Whether you are launching a new EV startup or managing a legacy OEM platform, Jucheng Precision has the technical depth and the certified consistency to stabilize your supply chain. Contact our engineering team today for a comprehensive DFM review and see how our automotive protocols can accelerate your next project.
