Why Aerospace and Medical Industries Rely on Passivation
Views: 7 Author: Allen Xiao Publish Time: 2025-11-14 Origin: Site
For some engineering projects, failure is not an option. A part inside a satellite cannot be repaired. A component in a medical implant must last for decades.
For these critical applications, how do you ensure the absolute maximum stability and corrosion resistance of an aluminum part? The answer is a process that is often misunderstood. It is not about adding a coating. It is about perfecting the metal itself.
This process is the passivation of aluminum. It is a subtle but powerful Aluminum surface treatment. It is designed to create the purest and most stable surface possible, without changing the part in any other way.
Aluminum is naturally corrosion-resistant. It automatically forms a thin, protective layer of aluminum oxide when exposed to air. This layer protects the metal underneath.
So why is any treatment needed? The problem is contamination.

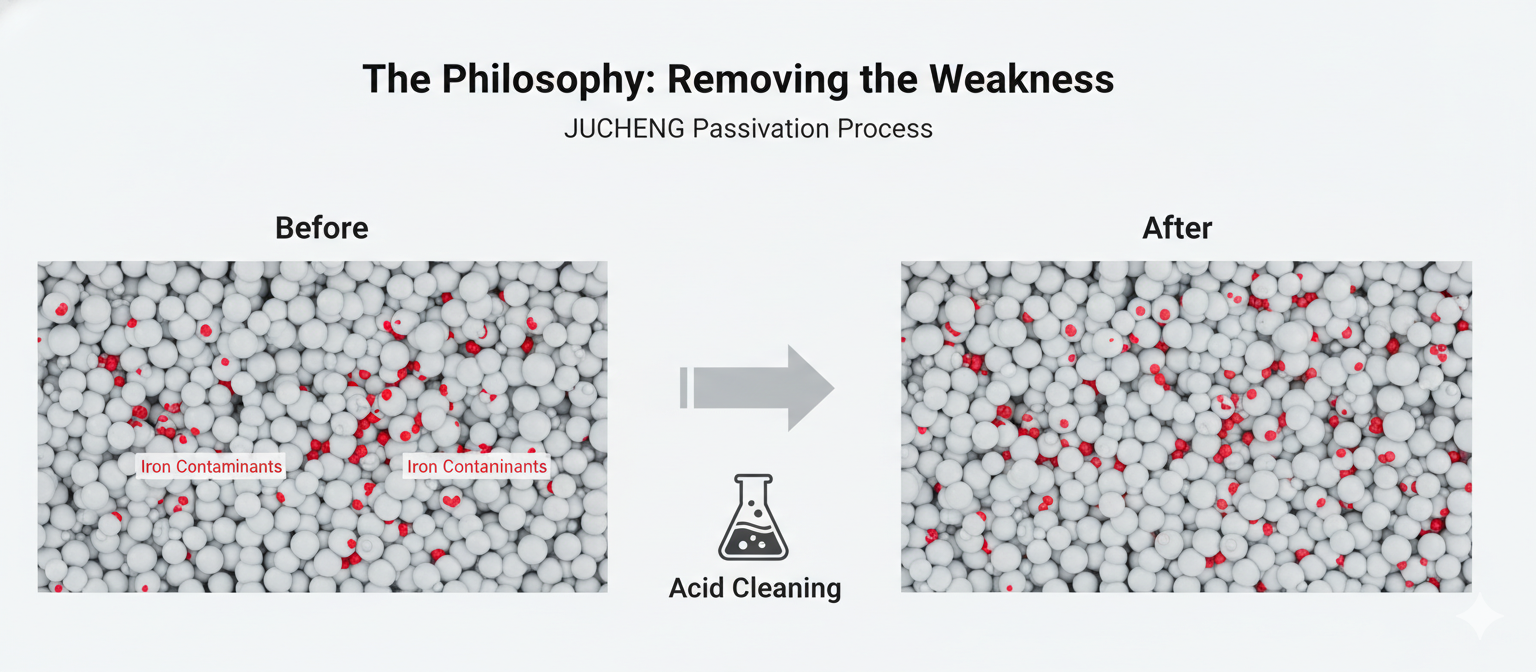

During the manufacturing process, tiny particles of iron from cutting tools can become embedded in the surface of the aluminum part. These particles are a point of weakness. When exposed to moisture, these iron particles will begin to rust. This rust can break through the natural oxide layer and cause the aluminum around it to start corroding.
The philosophy of passivation is simple. It is a highly controlled cleaning process. Its only job is to remove these foreign contaminants. It leaves behind an ultra-pure aluminum surface. This pure surface can then form the most perfect, stable, and protective natural oxide layer possible.
The Process: A Controlled Cleaning
The passivation of aluminum is a chemical process. The part is submerged in a mild acid bath, usually nitric acid or citric acid.
This acid is carefully chosen. It is strong enough to dissolve the embedded iron particles and other contaminants. But it is not strong enough to significantly attack the aluminum itself.
The part is left in the bath for a specific amount of time under controlled temperatures. After the treatment, it is rinsed with ultra-pure, deionized water to remove all traces of the acid.
The result is a part that looks almost identical to how it started. It has no new coating. Its dimensions have not changed. But its surface is now chemically pure. It is now ready to form its own perfect, natural armor against corrosion.

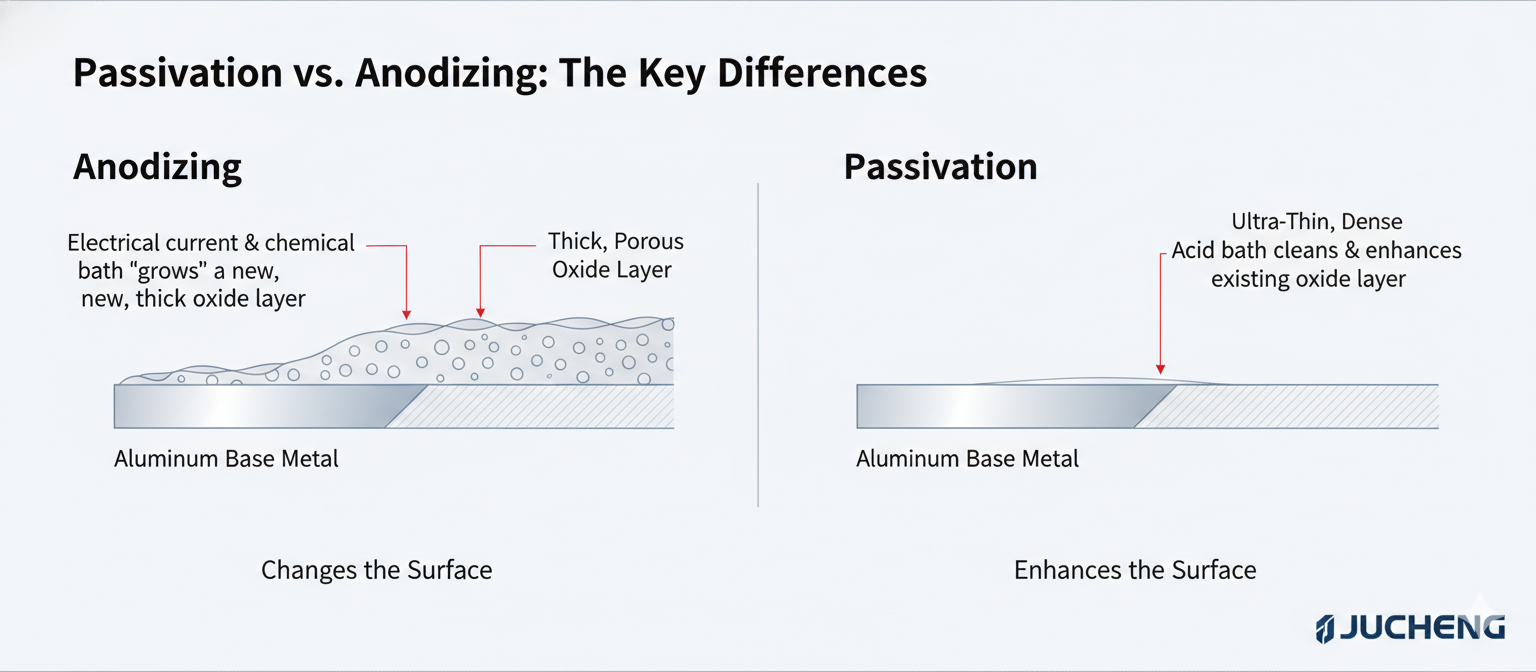

Passivation vs. Anodizing: The Key Differences
It is easy to confuse passivation with anodizing. Both improve corrosion resistance. But they are very different.
Anodizing is an electrochemical process that grows a thick, artificial layer of aluminum oxide. This layer significantly changes the surface. It adds hardness. It can be dyed different colors. It is also an electrical insulator.
Passivation is a much more subtle chemical process. It does not grow a thick, artificial layer. It simply cleans the surface to allow a better natural layer to form. It does not change the part's dimensions or appearance. It does not add significant hardness. And it maintains the electrical conductivity of the aluminum.
Think of it this way. Anodizing is like putting on a thick, protective jacket. Passivation is like washing your hands to let your skin's natural defenses work better.
When is Passivation the Only Choice?
For most products, anodizing is a great choice. But for some critical applications, passivation is the only acceptable option.

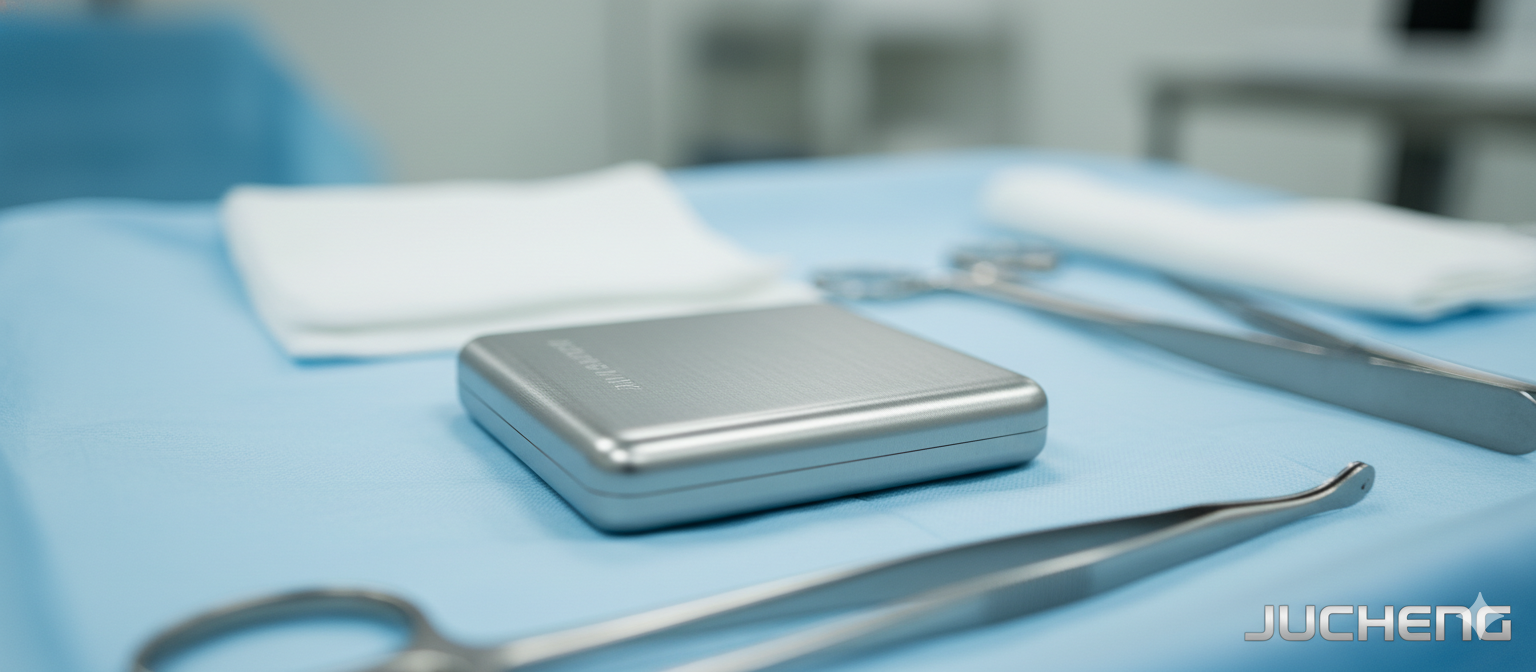

This is especially true in the medical device industry. For a part that might be implanted in the human body, you cannot have any extra coatings. You need the material to be as pure and biocompatible as possible. Passivation provides corrosion resistance without adding any new materials.
It is also critical in the aerospace and defense industries. For a precision part in a satellite or a missile, you cannot afford any change in dimensions. The thick layer from anodizing might be a problem. Passivation protects the part without altering its precise fit.
It is also used when you need both corrosion resistance and electrical conductivity for grounding or shielding purposes.
The JUCHENG Advantage: Process Control is Everything
Passivation is a process of extreme precision and control. The chemical concentrations, temperatures, and immersion times must be perfect.
At JUCHENG, we have a deep understanding of these critical processes. We serve demanding industries that rely on this level of quality.
Our process is rigorously controlled and documented. We provide full traceability. We can provide certificates of conformance that prove the process was done exactly to aerospace or medical standards.
For your most critical parts, you need more than just a finish. You need certainty. This is the ultimate value that a professional Aluminum surface treatment partner provides.
