CNC PEEK Machining: A Guide to Taming the Ultimate Polymer
Views: 3 Author: Allen Xiao Publish Time: 2025-12-20 Origin: Site
In our workshop, there is one material that commands a different level of respect. It arrives with a material certification that looks like a birth certificate. We handle it with extra care. We machine it with a unique discipline.
That material is PEEK. It is a legend in the world of polymers. It offers a combination of strength, temperature resistance, and chemical inertness that few other materials can match.
But it is also famously expensive and notoriously difficult to work with. The process of peek cnc machining is not just a job. It is an exercise in precision and discipline. This guide is a look inside that process.

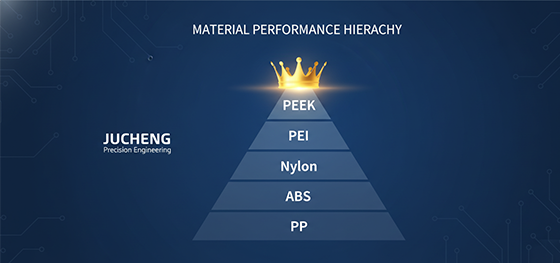

PEEK (Polyether Ether Ketone) sits at the very top of the polymer performance pyramid. It is a semi-crystalline thermoplastic with a unique and powerful personality.
It is incredibly strong and stiff, often used to replace metal parts. It has outstanding wear and fatigue resistance. It is also one of the most heat-resistant of all melt-processable CNC machining materials, capable of continuous use at 260°C (500°F). And it is virtually immune to a huge range of chemicals. This combination makes it a go-to material for the most demanding jobs.
Virgin PEEK for Medical Applications
In its purest, unfilled form, "Virgin PEEK" has another superpower: it is biocompatible. This means it can be safely used inside the human body without causing a reaction.
This property, combined with its strength and ability to be sterilized in an autoclave, has made it a revolutionary material in the medical industry.
It is used to make spinal fusion cages, cranial implants, and other surgical components. Machining these parts requires an extremely clean environment and a process that maintains the material's purity and integrity.
Glass-Filled PEEK for Structural Strength
For applications that need even higher stiffness and strength, we turn to filled grades of PEEK.
Glass-Filled PEEK contains tiny glass fibers mixed into the polymer. These fibers act like an internal skeleton, dramatically increasing the material's rigidity and dimensional stability, especially at high temperatures.
Carbon-Filled PEEK offers even higher stiffness, plus the added benefit of better wear resistance and electrical conductivity. These filled grades are the top choice for highly stressed structural components in the aerospace and high-performance automotive industries, such as pistons, seals, and bearings.
The Secret to Precision: Annealing
Here is the secret that separates professional PEEK machinists from amateurs. The process of making a PEEK block or rod can trap a huge amount of internal stress in the material.
You cannot see this stress. But when you start to CNC machine the material, you are cutting away the stressed outer layers. This can cause the material to move, warp, or bend, right on the machine. A perfectly straight cut can become a banana shape.

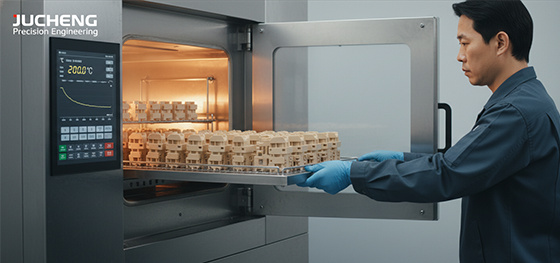

The only way to prevent this is with a carefully controlled annealing process. Before we machine it, and sometimes even in the middle of the process, the PEEK material is heated in an oven for many hours at a precise temperature, and then very, very slowly cooled down. This process relaxes the polymer chains and relieves the internal stress.
This "invisible" step is absolutely critical for holding tight tolerances on any high-precision PEEK part.
JUCHENG's Zero-Scrap Goal
The raw material for PEEK is incredibly expensive. A single block can cost thousands of dollars. This means that a mistake during machining is not just a delay; it is a major financial loss.
This is why our approach to peek cnc machining is built around a "zero-scrap goal."
We use our most advanced 5-axis CNC machines. We use specialized, new or freshly sharpened cutting tools. Our most experienced engineers and machinists are assigned to PEEK projects. We follow a strict, documented process that includes annealing and careful process control.
We treat this expensive material with the respect it deserves. This discipline is our promise to you. It is your guarantee that we will get your critical, high-value part right the first time.
