Why Plating on ABS Plastic is the Standard for Automotive

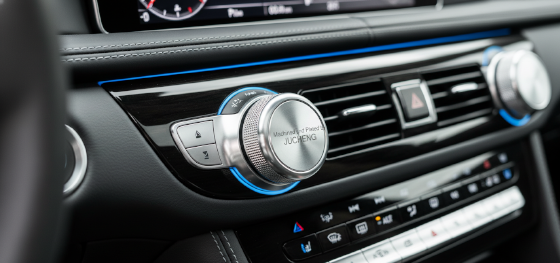

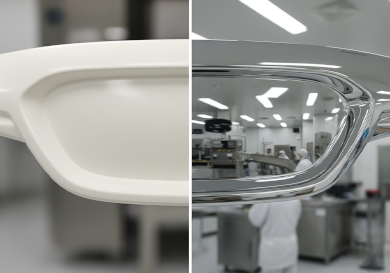

Metallic aesthetics drive consumer desire. Whether it is the cool touch of a volume knob in a luxury sedan or the brilliant chrome finish of a high-end medical device, humans are naturally drawn to the luster and weight of metal. However, solid metal components are often too heavy, too expensive, or too complex to manufacture in high volumes. This engineering gap is bridged by Plating on ABS Plastic. It is the definitive method for transforming a lightweight, cost-effective polymer into a component that is visually and tactilely indistinguishable from solid brass or steel.

At Jucheng Precision, we specialize in the synergy between abs cnc machining and advanced surface finishing. We understand that a plated part is only as good as the substrate beneath it. If the machining marks are too deep or the internal stresses are too high, the plating will reveal every flaw or, worse, peel off in the field. This guide dives into the technical "alchemy" of the plating process, the specific chemistry that makes ABS the king of platable plastics, and the DFM strategies JUCHENG uses to ensure your metallic designs achieve world-class durability.

Turning plastic into metal is a multi-stage journey of chemical transformation. From the initial etching to the final electrolytic bath, every second matters. Let us examine the manufacturing pillars that support professional-grade plastic electroplating.

content:

The Chemical Bond: Why ABS is the Plating King

The Electroless Bridge: Creating Conductivity

Designing for the Tank: DFM for Uniform Surfaces

The Plating Spectrum: Chrome, Nickel, and Beyond

JUCHENG's Integrated Workflow: Machining plus Plating

The Chemical Bond: Why ABS is the Plating King

Electroplating requires electricity to travel across the surface of the part, but most plastics are excellent insulators. To solve this, we must first prep the material to "accept" a metal layer. Among all engineering polymers, Acrylonitrile Butadiene Styrene (ABS) is unique because of its tri-polymer structure. It contains microscopic particles of butadiene rubber dispersed within a rigid acrylonitrile-styrene matrix. This molecular arrangement is the "secret sauce" of Plating on ABS Plastic.

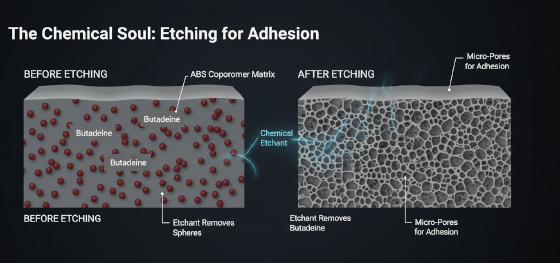

The process begins with a concentrated chemical etching bath, usually containing chromic and sulfuric acids. This acid aggressively attacks and dissolves the butadiene rubber particles on the very surface of the part, while leaving the rigid styrene matrix intact. This creates a landscape of millions of microscopic "craters" or pits. These pits are essential because they provide the mechanical "teeth" for the metal to grab onto. Without this microscopic roughness, the metal plating would simply slide off like water on a waxed car. At Jucheng Precision, we calibrate the etching time based on the specific grade of ABS used during abs cnc machining, ensuring that we create enough pits for massive adhesion without compromising the structural integrity of the part’s walls. This chemical foundation is what prevents the plating from bubbling or peeling even when exposed to extreme temperature shifts.

The Electroless Bridge: Creating Conductivity

Once the surface is etched and pitted, the part is still an insulator. We cannot simply hook it up to a battery and start plating. We need an "Electroless Bridge." This is a purely chemical, non-electrical process where the part is dipped into a bath of palladium activator and then into a solution of electroless nickel or copper. The palladium seeds itself into the tiny pits created during etching, acting as a catalyst for the nickel to deposit itself onto the plastic.

This stage creates a continuous, albeit very thin, metallic skin across the entire ABS component. It is now electrically conductive. This electroless layer is the most delicate part of the Plating on ABS Plastic journey. If the layer is too thin, the high currents of the subsequent electroplating stages will "burn" the plastic. If it is too thick, it can become brittle. JUCHENG technicians monitor the bath chemistry and immersion times with extreme rigor. We ensure that every nook and cranny of a complex machined part—including deep internal bores and threads—receives a uniform conductive coating. This technical bridge is what enables us to transition from the world of organic polymers to the world of inorganic metallurgy, paving the way for a durable, high-gloss finish.

Designing for the Tank: DFM for Uniform Surfaces

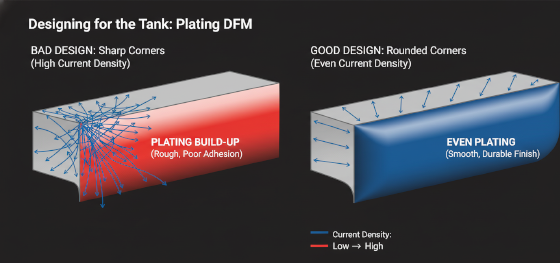

A common mistake in abs cnc machining for plating is assuming that any geometry can be successfully coated. Electroplating is governed by the laws of electromagnetics. Electricity follows the path of least resistance, which means it tends to "crowd" around sharp corners and "starve" in deep recesses. If a part has a sharp 90-degree outer corner, the plating will build up there much thicker than on the flat surfaces, leading to a "dog-bone" effect and potentially ruining dimensional tolerances.

During our DFM review at Jucheng Precision, we suggest specific geometry tweaks for Plating on ABS Plastic. We advocate for generous radii—ideally 0.5mm or more—on all corners to ensure uniform current density. We also look for "air traps" in your CAD model. If a part has a blind hole with no exit, air bubbles can get trapped during the dipping process, preventing the chemicals from reaching the plastic. We suggest adding small "bleed holes" or "vent holes" to ensure 100% surface coverage. Furthermore, we must account for "Racking Marks." Every part must be physically held by a conductive wire or rack. We work with you to identify non-critical hidden surfaces where the rack can touch the part without affecting the final aesthetic. By designing for the tank, we ensure a flawless finish that requires zero secondary touch-ups.

The Plating Spectrum: Chrome, Nickel, and Beyond

With the conductive bridge in place, we can now apply the heavy-duty metal layers. Most Plating on ABS Plastic projects involve a "triple-plate" process: a thick layer of ductile copper to smooth out the surface, followed by a layer of bright nickel for hardness and corrosion resistance, and finally a top-coat for the desired aesthetic. The most popular choice is Chrome. Chrome plating provides that classic, ultra-bright "cool blue" shine seen on high-end appliances and automotive grills. It is exceptionally hard and scratch-resistant.

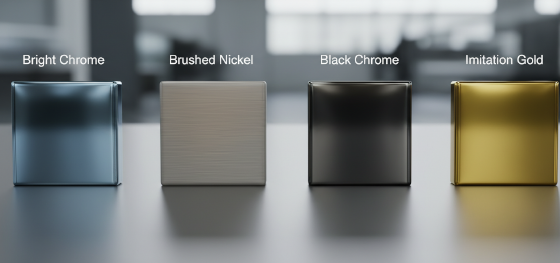

However, Jucheng Precision offers a full spectrum of finishes to match your brand's identity. Satin Nickel (or Pearl Chrome) provides a sophisticated, matte-metallic look that hides fingerprints, making it ideal for medical controls or handheld consumer electronics. We can also provide Black Chrome for a modern, aggressive aesthetic, or even 24K Gold plating for luxury decorative components. Each finish has its own specific technical properties—for instance, nickel provides better chemical resistance, while gold offers superior electrical conductivity for shielding applications. Our team helps you navigate these choices, ensuring that the finish you select survives the environmental stresses of your specific industry, from high-humidity bathrooms to UV-exposed car exteriors.

JUCHENG's Integrated Workflow: Machining plus Plating

The greatest risk in plastic plating is the fragmentation of the supply chain. If you buy machining from one shop and plating from another, who is responsible if the plating peels or the dimensions are out of spec? "Vendor finger-pointing" is the primary cause of project delays in this sector. Jucheng Precision eliminates this risk by offering a true one-stop-shop solution. We manage the entire lifecycle of the part: from the high-precision abs cnc machining to the chemical etching and final electrolytic finish.

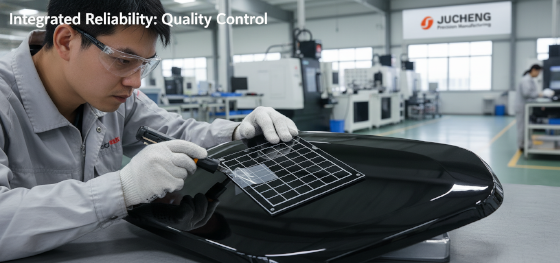

Our internal SOPs are designed for "Plating-Grade Quality." We optimize our tool paths to minimize surface roughness ($Ra$), as even tiny machining grooves will be magnified by the bright chrome finish. We also manage the thermal stress during machining; if a part is overheated, the butadiene rubber particles can migrate, leading to "bald spots" where the plating won't stick. Every batch of plated parts at JUCHENG undergoes a rigorous adhesion test, including thermal cycling (alternating between freezing and boiling water) and the "cross-hatch" tape test. We don't just ship you a pretty part; we ship you a verified metallic-plastic composite that is built to last. Whether you are developing a prototype for a new high-end faucet or a production run of automotive emblems, Jucheng Precision has the technical rigor and chemical expertise to turn your plastic designs into a metallic reality. Contact our team today for a free technical consultation on your next plated ABS project.
