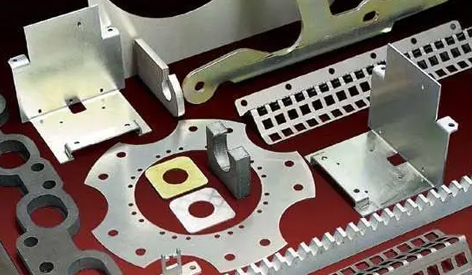

20 Gauge Sheet Metal Guide Copper, Steel, Aluminum, Stainless Steel

Sheet metal fabrication is a fundamental process in manufacturing, involving the transformation of flat metal sheets into various products and components. The term "gauge" refers to the thickness of the sheet metal, and in this guide, we focus on 20 gauge sheet metal. The gauge system can be somewhat confusing, as a lower gauge number indicates a thicker sheet, while a higher number represents a thinner sheet. For 20 gauge, the thickness varies slightly depending on the type of metal, but it generally falls around 0.032 inches (0.81 mm).


This article provides a comprehensive guide to 20 gauge sheet metal, covering copper, steel, aluminum, and stainless steel. We will explore the characteristics, applications, and benefits of each material, as well as provide insights into best practices for working with them. Finally, we will introduce Jucheng Precision, a leader in precision sheet metal fabrication.

Understanding 20 Gauge Sheet Metal

What is Gauge in Sheet Metal?

The gauge of sheet metal refers to its thickness. The most commonly used gauge system in the U.S. is the American Wire Gauge (AWG) system. For sheet metal, gauges range from 3 to 38, with 3 being the thickest and 38 being the thinnest. The specific thickness for 20 gauge varies slightly between different types of metals:


· Copper: Approximately 0.032 inches (0.81 mm)

· Steel: Approximately 0.036 inches (0.91 mm)

· Aluminum: Approximately 0.032 inches (0.81 mm)

· Stainless Steel: Approximately 0.0375 inches (0.95 mm)


Understanding these thicknesses is crucial for selecting the right material for your project, as each type of metal offers different properties and advantages.

Copper 20 Gauge Sheet Metal

Characteristics of Copper

Copper is known for its excellent electrical and thermal conductivity, corrosion resistance, and malleability. It has a distinctive reddish-brown color and can develop a green patina over time when exposed to the elements.

Applications of Copper Sheet Metal

1. Electrical Applications: Due to its superior conductivity, copper is widely used in electrical wiring, connectors, and other electrical components.

2. Plumbing: Copper's resistance to corrosion makes it ideal for plumbing pipes and fittings.

3. Roofing and Gutters: Copper sheets are often used in roofing and gutter systems due to their durability and aesthetic appeal.

4. Decorative Items: Copper's unique appearance makes it popular for decorative items, art pieces, and architectural accents.

Working with Copper Sheet Metal

· Cutting: Copper can be easily cut using shears, snips, or a laser cutter.

· Forming: Copper's malleability allows it to be easily bent and shaped without cracking.

· Joining: Soldering is commonly used for joining copper pieces, especially in electrical and plumbing applications.

Steel 20 Gauge Sheet Metal

Characteristics of Steel

Steel is an alloy made primarily of iron and carbon. It is known for its strength, durability, and relatively low cost. There are various types of steel, including mild steel, galvanized steel, and high-strength low-alloy (HSLA) steel.

Applications of Steel Sheet Metal

1. Automotive Industry: Steel is widely used in automotive bodies, frames, and other components due to its strength and durability.

2. Construction: Steel sheets are used in building structures, roofing, and cladding.

3. Manufacturing: Steel is a common material for manufacturing parts, machinery, and equipment.

4. Furniture: Steel sheet metal is often used in the production of furniture and fixtures.

Working with Steel Sheet Metal

· Cutting: Steel can be cut using various methods, including shearing, sawing, and plasma cutting.

· Forming: Steel sheets can be bent, rolled, and stamped into various shapes.

· Welding: Steel is easily welded using methods such as MIG, TIG, and arc welding.

Aluminum 20 Gauge Sheet Metal

Characteristics of Aluminum

Aluminum is a lightweight, corrosion-resistant metal with excellent thermal and electrical conductivity. It is also highly reflective and non-magnetic.

Applications of Aluminum Sheet Metal

1. Aerospace: Aluminum's light weight and strength make it ideal for aircraft structures and components.

2. Transportation: Used in automotive bodies, frames, and rail cars to reduce weight and improve fuel efficiency.

3. Construction: Aluminum sheets are used in building facades, roofing, and window frames.

4. Consumer Electronics: Aluminum's conductivity and lightweight properties make it suitable for electronic housings and components.

Working with Aluminum Sheet Metal

· Cutting: Aluminum can be cut using shears, saws, or laser cutting.

· Forming: Aluminum is easily formed using bending, stamping, and extrusion processes.

· Joining: Welding, riveting, and adhesive bonding are common methods for joining aluminum parts.

Stainless Steel 20 Gauge Sheet Metal

Characteristics of Stainless Steel

Stainless steel is an alloy known for its corrosion resistance, strength, and aesthetic appeal. It contains chromium, which forms a passive layer that protects against rust and corrosion.

Applications of Stainless Steel Sheet Metal

1. Food and Beverage Industry: Stainless steel is used for kitchen equipment, food processing machinery, and storage tanks due to its hygienic properties.

2. Medical Devices: Used in surgical instruments, implants, and medical equipment because of its biocompatibility and resistance to sterilization processes.

3. Construction: Stainless steel is used in architectural features, cladding, and structural components.

4. Marine Applications: Due to its corrosion resistance, stainless steel is used in boat fittings, anchors, and other marine hardware.

Working with Stainless Steel Sheet Metal

· Cutting: Stainless steel can be cut using shears, saws, water jets, or laser cutting.

· Forming: Requires more force than other metals due to its strength, but can be bent, stamped, and rolled.

· Welding: Specialized techniques and equipment are required for welding stainless steel, such as TIG welding.

Best Practices for Working with 20 Gauge Sheet Metal

Safety Measures

1. Personal Protective Equipment (PPE): Always wear appropriate PPE, including gloves, safety glasses, and hearing protection.

2. Proper Ventilation: Ensure adequate ventilation when cutting or welding sheet metal to avoid inhaling fumes.

3. Machine Safety: Follow safety protocols when operating cutting and forming machinery.

Handling and Storage

1. Avoid Scratches: Use protective coverings to prevent scratches and damage during handling and storage.

2. Storage Conditions: Store sheet metal in a dry, clean environment to prevent corrosion and contamination.

3. Labeling: Clearly label different types of sheet metal to avoid mix-ups and ensure proper use.

Quality Control

1. Inspection: Regularly inspect sheet metal for defects, such as cracks, warping, and surface imperfections.

2. Testing: Perform mechanical tests to verify material properties and ensure they meet project specifications.

3. Documentation: Maintain detailed records of material specifications, inspection results, and quality control procedures.


20 gauge sheet metal is a versatile and widely used material in various industries, including construction, automotive, aerospace, and electronics. Understanding the unique characteristics, applications, and best practices for working with copper, steel, aluminum, and stainless steel sheet metal is essential for achieving high-quality results. By following the guidelines provided in this article, you can ensure successful fabrication and meet the demands of modern manufacturing.


Are you looking for sheet metal services for all kinds of material processing?


At Jucheng Precision, we specialize in the precision fabrication of 20 gauge sheet metal in a variety of materials, including copper, steel, aluminum, and stainless steel. Our state-of-the-art facility is equipped with advanced machinery and technology to deliver high-quality, customized sheet metal solutions tailored to your specific needs.


With a commitment to excellence and customer satisfaction, Jucheng Precision ensures that every project is completed to the highest standards of quality and precision. Our team of skilled professionals is dedicated to providing innovative solutions and exceptional service from start to finish.


Whether you need prototyping, small batch production, or large-scale manufacturing, Jucheng Precision is your trusted partner for all your sheet metal fabrication needs. Contact us today to learn more about our services and how we can help you achieve your manufacturing goals with precision and efficiency.
