3D printing has revolutionized manufacturing, allowing for rapid prototyping, customization, and small-scale production across various industries. To achieve high-quality prints and ensure the functionality of printed parts, having the right 3D printing tool kit is essential. This article delves into the components of a comprehensive 3D printing tool kit, best practices for maintaining quality, and tips for ensuring functionality.

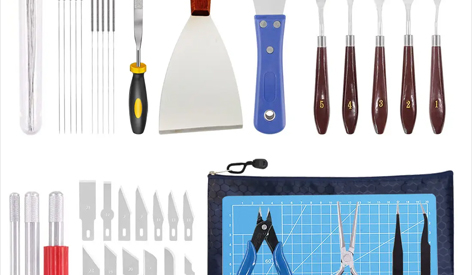

Components of a 3D Printing Tool Kit
A well-equipped 3D printing tool kit includes various tools and accessories to facilitate the printing process, post-processing, and maintenance. Here are the key components:
1. Basic Tools
· Spatula/Scraper: Essential for removing prints from the build plate without damaging the part or the printer.
· Tweezers: Useful for handling small parts, removing filament remnants, and cleaning the nozzle.
· Pliers: Needle-nose and flush cutters help with removing support structures and trimming filament.
· Utility Knife: Ideal for precise trimming and clean-up of printed parts.
2. Cleaning and Maintenance Tools
· Brushes: Nylon or brass brushes are used to clean the nozzle, build plate, and other printer components.
· Compressed Air: Helps remove dust and debris from hard-to-reach areas.
· Nozzle Cleaning Kit: Includes needles or specialized tools for unclogging nozzles and maintaining a smooth filament flow.
3. Calibration and Measurement Tools
· Digital Caliper: Ensures dimensional accuracy of printed parts by measuring thickness, width, and other critical dimensions.
· Feeler Gauges: Used for leveling the build plate and ensuring proper nozzle distance.
· Bed Leveling Sensors: Automated sensors to assist in achieving a perfectly level build surface.
4. Adhesives and Surface Preparation
· Glue Stick: Commonly used to enhance bed adhesion for prints.
· Painters Tape/Build Surface Tape: Provides a removable surface that helps with part adhesion and easy removal.
· PEI Sheets: Polyetherimide sheets provide a durable build surface that promotes excellent adhesion.
5. Post-Processing Tools
· Sanding Tools: Sandpaper, files, and rotary tools help smooth and finish printed parts.
· Paint and Finishing Supplies: For aesthetic enhancements, including paints, primers, and brushes.
· Solvents: Isopropyl alcohol (IPA) for cleaning prints and removing excess resin in SLA printing.
Best Practices for Ensuring Quality
Printer Calibration
Regular calibration of your 3D printer is crucial for maintaining print quality. This includes:
· Bed Leveling: Ensuring the build plate is perfectly level prevents issues like warping and poor adhesion. Manual or automated leveling systems can be used.
· Extruder Calibration: Verifying that the extruder is delivering the correct amount of filament ensures dimensional accuracy and prevents over-extrusion or under-extrusion.
· Temperature Calibration: Setting the correct temperature for the nozzle and build plate based on the filament type is essential for consistent extrusion and layer bonding.
Filament Management
Proper filament handling and storage directly impact print quality. Key practices include:
· Dry Storage: Filaments should be stored in a dry environment, preferably in sealed bags with desiccants, to prevent moisture absorption, which can lead to printing issues.
· Filament Cleaning: Using a filament cleaner or oiler can remove dust and debris from the filament before it enters the extruder, preventing clogs and improving print quality.
Print Settings Optimization
Optimizing print settings for each specific filament and model is critical. Important settings include:
· Layer Height: Smaller layer heights result in finer details but increase print time.
· Print Speed: Balancing print speed with quality is essential; slower speeds generally produce better prints.
· Retraction Settings: Proper retraction settings prevent oozing and stringing, enhancing the surface finish.
· Infill Density and Pattern: Choosing the right infill density and pattern affects the strength, weight, and print time of the part.
Build Plate Adhesion
Ensuring good adhesion of the first layer is critical for print success. Techniques to improve adhesion include:
· Cleaning the Build Plate: Regular cleaning with IPA removes oils and debris, improving adhesion.
· Using Adhesives: Applying glue stick, hairspray, or specialized adhesives to the build plate can help prevent warping and improve part adhesion.
Tips for Ensuring Functionality
Design Considerations
Designing parts for 3D printing involves understanding the limitations and strengths of the technology. Key considerations include:
· Overhangs and Supports: Designing with minimal overhangs and the proper use of supports can prevent print failures and improve surface finish.
· Tolerance and Fit: Accounting for the precision of your printer when designing parts that need to fit together ensures functional assemblies.
· Orientation: Printing parts in the optimal orientation can enhance strength and surface quality while reducing the need for supports.
Material Selection
Choosing the right material for your application is vital for functionality. Factors to consider include:
· Mechanical Properties: Tensile strength, flexibility, and impact resistance should match the requirements of the part.
· Thermal Properties: Heat resistance and thermal expansion are crucial for parts exposed to high temperatures.
· Chemical Resistance: Selecting materials that withstand exposure to chemicals and solvents is important for certain applications.
Post-Processing Techniques
Post-processing can significantly enhance the functionality and aesthetics of printed parts. Techniques include:
· Sanding and Polishing: Smooths surfaces and improves the appearance of printed parts.
· Painting and Coating: Adds aesthetic appeal and can provide additional protection against environmental factors.
· Heat Treatment: Enhances the mechanical properties of certain materials, like annealing PLA to increase strength and reduce brittleness.
Conclusion
Ensuring quality and functionality in 3D printing involves a combination of having the right tools, following best practices, and optimizing processes. From proper calibration and filament management to design considerations and material selection, each step contributes to achieving high-quality prints that meet functional requirements.
