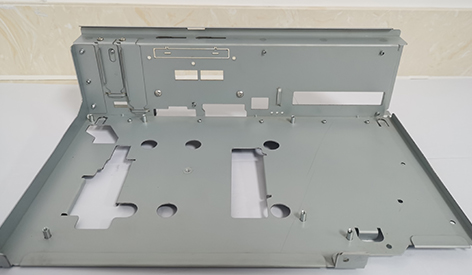

What Processes Are Used in Sheet Metal Prototyping?

Sheet metal prototyping involves the creation of prototype parts or components using various sheet metal fabrication processes. These processes are chosen based on factors such as material type, part complexity, tolerances, and the desired end-use application. Here are some common processes used in sheet metal prototyping:

Laser Cutting:

Process: A laser beam is used to cut through the sheet metal along a programmed path, creating precise and intricate shapes.

Advantages: High precision, minimal material waste, and suitability for complex designs.

CNC Punching:

Process: Computer Numerical Control (CNC) punches are used to create holes, notches, and other features in the sheet metal.

Advantages: Efficient for creating patterns of holes and features, high-speed production.

Bending or Press Brake Forming:

Process: The sheet metal is bent or folded into the desired shape using a press brake.

Advantages: Allows for the creation of three-dimensional shapes, high accuracy in bending angles.

Deep Drawing:

Process: A blank sheet is formed into a three-dimensional shape by drawing it into a die using a punch.

Advantages: Suitable for creating complex and deep-drawn components, high production efficiency.

Stamping:

Process: A press with a die and punch is used to cut or form sheet metal into the desired shape.

Advantages: Efficient for high-volume production, can include various operations like blanking, piercing, and coining.

Waterjet Cutting:

Process: A high-pressure stream of water mixed with abrasive particles is used to cut through sheet metal.

Advantages: Versatile for cutting a wide range of materials, cold cutting process.

Roll Forming:

Process: Continuous bending of a long strip of sheet metal through a series of rolls to achieve a desired cross-section.

Advantages: Suitable for creating long, consistent profiles, high production speeds.

Welding:

Process: Parts are joined together using various welding techniques such as MIG, TIG, or spot welding.

Advantages: Allows for the assembly of complex structures, suitable for joining dissimilar metals.

Powder Coating or Painting:

Process: A protective and decorative finish is applied to the sheet metal surface.

Advantages: Enhances corrosion resistance, provides a finished appearance.

Assembly:

Process: Individual sheet metal components are assembled into the final product.

Advantages: Allows for the creation of multi-component systems.

The specific combination of these processes depends on the requirements of the sheet metal prototype, including the desired geometry, material properties, and the overall design intent. The goal is to create functional and representative prototypes for testing and evaluation before moving into full-scale production.
