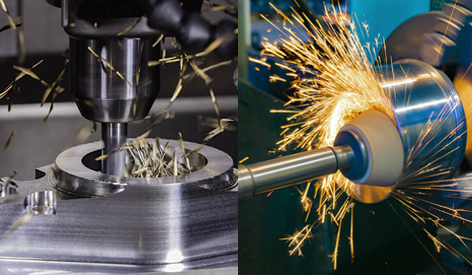

Milling and grinding are two essential manufacturing processes used to shape and finish materials. Each has unique characteristics, applications, and advantages, making them suitable for different types of tasks. This article explores the details of milling and grinding, comparing their attributes and highlighting their specific applications.
Characteristics of Milling
Definition
Milling is a machining process that uses rotary cutters to remove material from a workpiece. It involves the movement of the workpiece against the rotating cutter to produce the desired shape and size.
Process
The milling process can be categorized into two primary types: face milling and peripheral milling.
· Face Milling: In this type, the cutting action occurs primarily at the end corners of the milling cutter. Face milling is used to create flat surfaces and is commonly employed to machine large surfaces quickly.
· Peripheral Milling: Here, the cutting action occurs along the circumference of the cutter. It is used to create detailed features and contours on a workpiece.
Equipment
Milling machines come in various configurations, including vertical, horizontal, and CNC (Computer Numerical Control) milling machines. Key components include:
· Milling Cutter: The cutting tool used in milling, available in various shapes and sizes.
· Spindle: Holds and rotates the cutter.
· Table: Supports and moves the workpiece.
· Control System: Manages the movement of the table and spindle, particularly in CNC machines.
Characteristics
· Versatility: Milling can produce a wide range of shapes, from simple flat surfaces to complex geometries.
· Precision: Modern milling machines, especially CNC machines, offer high precision and repeatability.
· Material Removal Rate (MRR): Milling generally has a high MRR, making it suitable for removing large volumes of material quickly.
Characteristics of Grinding
Definition
Grinding is a machining process that uses an abrasive wheel as the cutting tool. The wheel's abrasive particles remove small amounts of material from the workpiece, resulting in a high surface finish and dimensional accuracy.
Process
The grinding process can be classified into several types, including surface grinding, cylindrical grinding, and centerless grinding.
· Surface Grinding: Involves grinding flat surfaces. The workpiece is held on a table that moves back and forth under a rotating abrasive wheel.
· Cylindrical Grinding: Used to grind cylindrical surfaces. The workpiece rotates while being moved against the abrasive wheel.
· Centerless Grinding: The workpiece is supported between two wheels, one of which is a grinding wheel and the other a regulating wheel. This setup allows for continuous processing and high throughput.
Equipment
Grinding machines also come in various types, each designed for specific applications. Key components include:
· Abrasive Wheel: The cutting tool in grinding, available in various grades and materials.
· Spindle: Holds and rotates the abrasive wheel.
· Workholding Device: Secures the workpiece during grinding.
· Control System: Manages the movement of the workpiece and abrasive wheel, particularly in CNC grinding machines.
Characteristics
· Surface Finish: Grinding provides an excellent surface finish, often required for precision parts.
· Dimensional Accuracy: Grinding can achieve tight tolerances and high dimensional accuracy.
· Material Removal Rate (MRR): Grinding has a lower MRR compared to milling, but it excels in producing fine finishes and accurate dimensions.
Applications of Milling
General Machining
Milling is widely used in general machining operations to create a variety of features, such as slots, pockets, and holes. It is versatile and can handle a wide range of materials, including metals, plastics, and composites.
Aerospace and Automotive Industries
In the aerospace and automotive industries, milling is used to produce complex components, such as engine parts, airframe structures, and transmission components. The high precision and repeatability of CNC milling make it ideal for these applications.
Prototyping
Milling is often used in prototyping to create functional prototypes and test parts. Its ability to quickly produce complex shapes makes it valuable in the design and development stages.
Tool and Die Making
Milling is essential in the production of tools and dies used in manufacturing processes like stamping and injection molding. It allows for the creation of intricate and precise shapes required for these applications.
Applications of Grinding
Precision Engineering
Grinding is crucial in precision engineering applications, where high surface finish and tight tolerances are required. It is used to produce parts such as bearing components, precision shafts, and gears.
Surface Finishing
Grinding is commonly used to achieve a smooth surface finish on components. It is employed in the final stages of production to ensure that parts meet the required specifications for surface quality.
Hard Materials
Grinding is suitable for machining hard materials that are difficult to machine with other processes. It is used to shape and finish materials such as hardened steel, ceramics, and carbide.
Medical Devices
In the medical device industry, grinding is used to produce precision components, such as surgical instruments and implants. The process ensures that these parts have the necessary surface finish and dimensional accuracy.
Comparison of Milling and Grinding
Material Removal Rate (MRR)
· Milling: Generally has a higher MRR, making it suitable for removing large amounts of material quickly.
· Grinding: Has a lower MRR, but excels in achieving fine finishes and high accuracy.
Surface Finish
· Milling: Provides a good surface finish, but may require additional finishing processes for high precision parts.
· Grinding: Offers an excellent surface finish and is often used as a finishing process.
Tolerances
· Milling: Capable of achieving moderate to high tolerances, particularly with CNC machines.
· Grinding: Can achieve extremely tight tolerances, making it ideal for precision components.
Versatility
· Milling: Highly versatile, capable of producing a wide range of shapes and features.
· Grinding: Less versatile in terms of shape creation, but essential for finishing and precision applications.
Equipment and Cost
· Milling: Milling machines are generally more expensive and complex, but offer greater versatility.
· Grinding: Grinding machines can be more cost-effective for finishing operations, though high-precision grinding machines can be expensive.
Conclusion
Milling and grinding are both indispensable processes in modern manufacturing, each with unique characteristics and applications. Milling excels in material removal and versatility, making it suitable for a wide range of machining operations. Grinding, on the other hand, is essential for achieving high surface finishes and tight tolerances, particularly in precision engineering and finishing applications.
