Polyether Ether Ketone (PEEK) is widely recognized as the pinnacle of engineering thermoplastics, essential for high-stress, high-temperature, and wear-critical applications. From lightweight, high-strength joints in automated prosthetics to structural components in aircraft and downhole drilling tools, PEEK's combination of mechanical strength and chemical inertness is unmatched.
However, its high cost and unique material properties make CNC Machining PEEK a specialized challenge. This process requires expert thermal management and specific tooling strategies to prevent material waste, ensure dimensional accuracy, and preserve PEEK’s structural integrity. This guide provides B2B buyers with the technical insight needed to successfully navigate the complexities of sourcing precision PEEK components.
content:
Cost Efficiency: CNC Machining PEEK’s High Material Value
Thermal Management: Mitigating Stress and Warpage
Tooling Strategy: High-Speed Cutting and Chip Control
The Composite Factor: Machining Glass-Filled PEEK (PEEK + GF30)
Applications and Compliance: Medical and Aerospace Standards
Cost Efficiency: CNC Machining PEEK’s High Material Value
PEEK is one of the most expensive engineering plastics available. Because CNC Machining is a subtractive process—removing material to form the final shape—material cost efficiency is paramount.

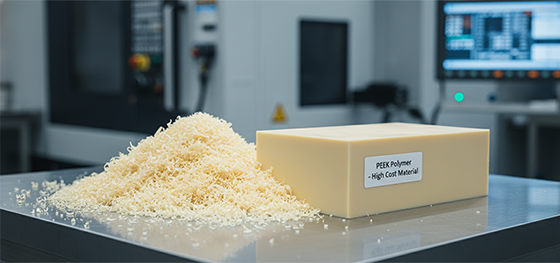

Material Waste: Waste from PEEK machining can quickly dwarf the labor costs. An experienced manufacturer minimizes waste through optimized tool paths and by starting with the most precise stock size possible (e.g., bar, rod, or sheet) to minimize the material that turns into chips.
Rapid Prototyping: While cost-intensive, CNC Machining PEEK is the ideal method for creating functional prototypes and low-volume critical components. It is often the only way to achieve the required dimensional accuracy with the actual end-use material.
Near-Net Shape: For highly complex parts, PEEK prototypes can sometimes be initially molded (if feasible) to a near-net shape, and then finished with CNC Machining. This blend of processes can reduce material waste and machining time.
Thermal Management: Mitigating Stress and Warpage
Despite its high thermal stability (high glass transition temperature), PEEK can build up internal stress during processing, especially when significant material is removed from large stock pieces. This can lead to warpage and cracking:
Internal Stress: Stress is inherent in PEEK stock and is released as material is removed during the CNC process. This thermal and mechanical release of stress causes the part to slightly change dimensions and potentially warp.

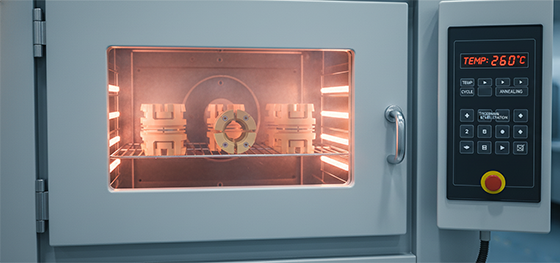

Annealing (Stress Relief): For tight-tolerance PEEK parts, a post-machining annealing process is often required. This controlled heating and slow cooling treatment relaxes the molecular structure, eliminates residual stress, and ensures maximum dimensional stability and mechanical performance.
Cooling Strategy: Unlike metals, PEEK is a poor heat conductor. The CNC process requires highly specialized cooling strategies (often using compressed air or dedicated cutting fluids) to keep the cutting zone cool, preventing smearing or melting of the plastic.
Tooling Strategy: High-Speed Cutting and Chip Control
Machining PEEK requires tools and parameters specifically designed for polymers, emphasizing sharp edges over brute force:
Tool Geometry: Sharp, single-point tools with a high rake angle are preferred for PEEK. These tools slice the material rather than pushing it, which generates less heat and prevents the formation of rough, smeared surfaces.
High RPM, Low Feed: High spindle speeds (RPM) combined with controlled, light feeds are used to ensure the material is removed quickly, preventing the heat buildup that leads to melting and poor surface finish.

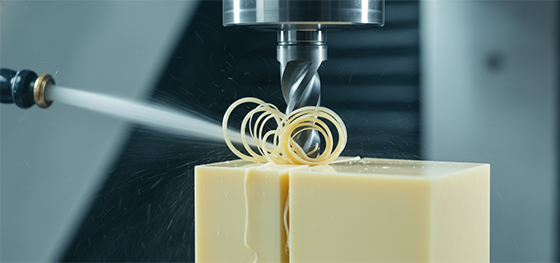

Chip Evacuation: PEEK chips are stringy and can quickly wrap around the tool, causing friction and thermal damage. Effective chip evacuation through air blasts or specialized vacuum systems is mandatory for continuous, high-quality production.
The Composite Factor: Machining Glass-Filled PEEK (PEEK + GF30)
For applications demanding even higher mechanical performance (e.g., structural joints), PEEK is reinforced with carbon or glass fibers (like PEEK + GF30). This composite material introduces a new set of machining challenges:
Tool Wear: Glass fibers are extremely abrasive and rapidly dull standard tools. Machining PEEK composites requires specialized tooling, such as diamond-coated inserts, to maintain a sharp edge and ensure a quality surface finish.
Surface Finish: The presence of glass fibers can leave a slightly rougher surface finish on the component. If an ultra-smooth finish is required (e.g., for bearing surfaces), a special polishing or finishing technique must be used to mitigate fiber pull-out.
Material Integrity: The CNC process must be precise enough not to compromise the fiber-matrix bond, ensuring the final part retains the full structural integrity for which the composite was selected.
Applications and Compliance: Medical and Aerospace Standards
PEEK is a material of choice in highly regulated industries. Successful sourcing depends on the manufacturer's ability to meet stringent quality management system (QMS) standards:

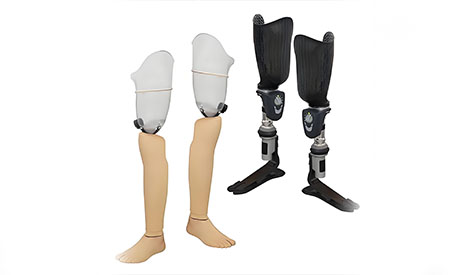

Medical/Prosthetics (ISO 13485): Used for non-implantable surgical tools, external joints in prosthetics, and high-performance diagnostic equipment components due to its chemical resistance to sterilization and lightweight strength. Full material traceability is mandatory.

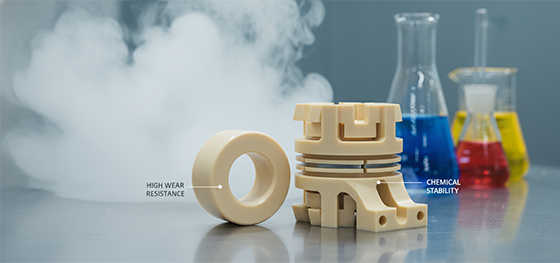

Aerospace (IATF 16949 / AS9100): Used for bushings, insulators, and structural brackets where its strength, low weight, and resistance to jet fuel/hydraulic fluids are essential. Requires validated process control and material certification.

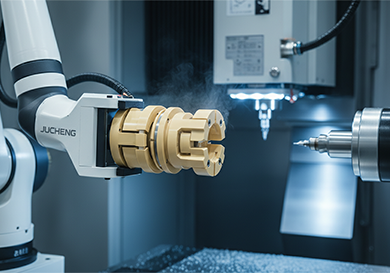

CNC Machining PEEK is a specialized engineering service that combines mastery of thermal dynamics with advanced tooling strategy. Jucheng Precision Technology’s certified expertise in stress-relief annealing and machining high-cost composites ensures your critical PEEK components are delivered with ultimate dimensional accuracy and structural performance.
Secure precise, high-performance PEEK components. Contact us today to discuss the thermal and dimensional requirements for your next PEEK prototype or low-volume production run.
