Engineering the Perfect Grip: Flexible Polyurethane Vacuum Casting Guide

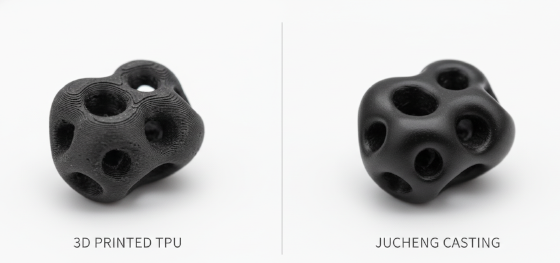

Tactile disappointment is the silent killer of consumer hardware. Engineers often spend months perfecting the internal electronics of a smartwatch or the ergonomic curvature of a surgical handle, only to have the entire user experience ruined by a "sticky" or "plasticky" rubber component. Standard 3D printed elastomers, such as TPU or flexible resins, frequently fail the human-factors audit because they feel like porous experiments rather than retail-ready hardware. When your project demands the authentic squish of a silicone seal or the high-rebound energy of an athletic wearable, the only professional pathway is flexible polyurethane vacuum casting. This technology bridges the gap between digital intent and physical comfort, utilizing specialized liquid elastomers that possess the molecular density and surface energy of injection-molded rubber. At Jucheng Precision, we recognize that flexibility is a spectrum, not a single setting. Our facility engineers custom durometers that allow your prototypes to breathe, stretch, and seal with a level of fidelity that additive manufacturing simply cannot fathom.

Authenticity in flexible prototyping requires mastering the physics of "Compression Set" and "Tear Strength"—two metrics where 3D printing consistently fails. polyurethane vacuum casting survives as the industry standard because it produces isotropic parts with uniform molecular cross-linking. Whether you are validating a waterproof IP68 gasket or a soft-touch ergonomic grip, JUCHENG provides the material spine needed to ensure your test data is predictive of mass production behavior. This guide deconstructs the science of Shore A selection, the chemistry of chemical bonding, and why our bespoke resin blending is the mandatory choice for elite hardware development teams.

content:

Durometer Sovereignty: Navigating the Shore A Spectrum

Mechanical Survival: The Physics of High Tear Strength

Fluid Dynamics: Engineering Watertight Seals and Gaskets

Overmolding Mastery: The Chemical Bond of Soft and Rigid

Aesthetic Freedom: Custom Pigmentation and Haptics

JUCHENG Protocol: Zero-Drift Elastomeric Production

Durometer Sovereignty: Navigating the Shore A Spectrum

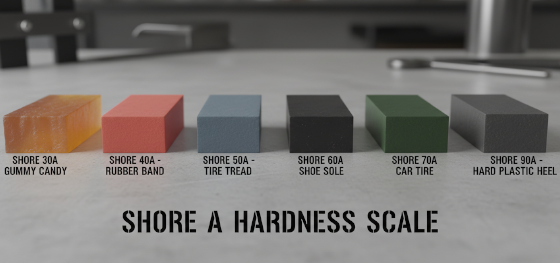

Hardness in the elastomeric world is not a binary choice; it is a nuanced sliding scale that dictates functionality. Engineers often specify a generic "Shore 60A" without realizing how a 5-point deviation can alter the assembly's tactile success. flexible polyurethane vacuum casting at Jucheng Precision allows for hyper-specific durometer control. We offer a material palette ranging from Shore 30A (possessing the squish of a gummy candy) to Shore 90A (the rigid toughness of a shopping cart wheel). For wearables, the "Sweet Spot" often lies between 45A and 55A, providing enough compliance to be skin-safe but enough rigidity to hold its shape under the tension of a buckle. Unlike fixed-property 3D printing filaments, our liquid resins are mixed in-house, allowing our technicians to "dial-in" an exact hardness—even a non-standard Shore 52A—to perfectly match your production target. This precision ensures that your ergonomic studies yield data that is 100% predictive of user comfort and device fit.

Mechanical Survival: The Physics of High Tear Strength

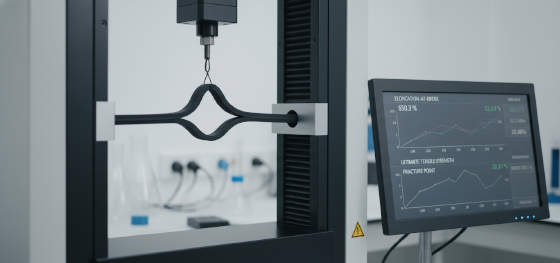

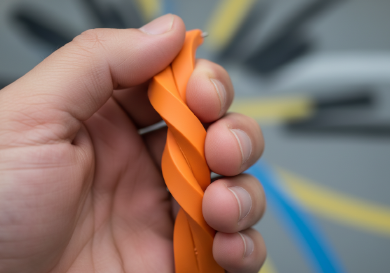

Resistance to rip and tear determines the field-readiness of a flexible part. Additive elastomers often fail when a user pulls a strap or stretches a gasket because the force propagates along the layer lines, causing instant delamination. flexible polyurethane vacuum casting utilizes high-performance resins like the Hei-Cast T0387 series, which are formulated for high-tear strength and extreme elongation (often exceeding 400%). This means you can stretch a cast component to four times its original length, and it will snap back to its original dimensions with zero permanent deformation. This "Memory Effect" is vital for validating living hinges on flexible enclosures or "squeeze-to-release" mechanisms. Jucheng Precision subjects every flexible batch to rigorous tensile audits, ensuring that the cross-linking density of the polymer is sufficient to survive the most abusive "torture tests" your engineers can devise. We provide the material spine that ensures your prototypes don't just look flexible—they behave with industrial-grade resilience.

Fluid Dynamics: Engineering Watertight Seals and Gaskets

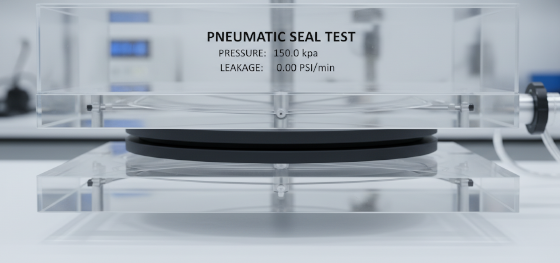

Hermetic integrity is a non-negotiable mandate for medical manifolds, underwater sensors, and electronic enclosures. Relying on a 3D printed gasket for an IP67 water-resistance test is an exercise in futility; the microscopic porosity inherent in the printing process creates thousands of leak paths for air and water molecules. flexible polyurethane vacuum casting produces 100% dense, non-porous components. Because the resin is degassed under a vacuum of 29 inches of Mercury before pouring, the resulting part is a monolithic chemical barrier. We specialize in casting intricate gaskets with complex "rib-and-valley" geometries that require low "Compression Set"—the ability of the rubber to spring back after being squashed for months. This technical capability allows your team to perform long-term hydrostatic pressure tests and thermal cycling audits, knowing that a failure is due to the design's geometry, not a defect in the prototype material. We turn "leak-prone" mockups into "pressure-ready" functional units.

Overmolding Mastery: The Chemical Bond of Soft and Rigid

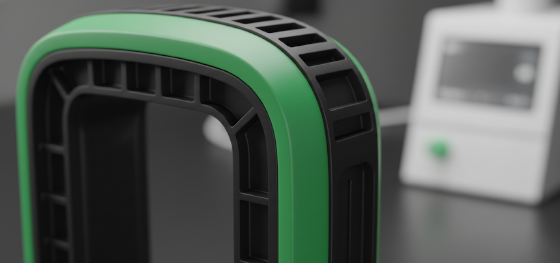

Ergonomic sophistication often requires the seamless integration of a soft-touch grip onto a rigid internal chassis. This "Multi-Shot" experience is the hallmark of premium hardware, from high-end power tools to surgical instruments. Jucheng Precision excels in simulating this through advanced overmolding casting protocols. Unlike simple assemblies that rely on weak adhesives, we utilize a "two-hit" process where the soft polyurethane is cast directly over a pre-cast rigid core. By carefully managing the surface energy and temperature of the substrate, we induce a chemical cross-link at the interface. The result is a monolithic part where the soft skin will not peel, even under extreme shear stress. This allows your human-factors team to conduct valid "peel strength" audits and ergonomic reviews with prototypes that handle exactly like final mass-produced units. We eliminate the "clunky" feel of glued prototypes, delivering a streamlined, professional touch that wins boardroom approvals.

Aesthetic Freedom: Custom Pigmentation and Haptics

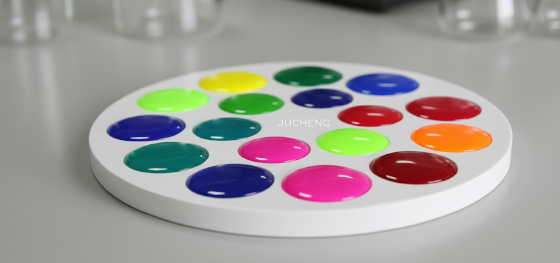

Brand identity in the wearable space is often defined by a specific, vibrant color palette. A "neon green" fitness tracker or a "translucent smoke" earphone tip must be visually perfect to secure market interest. flexible polyurethane vacuum casting allows for "In-Mold Pigmentation," where high-concentration dyes are mixed into the liquid resin before the pour. Jucheng Precision calibrates these colors against physical Pantone or RAL swatches, ensuring the color is "baked-through" the entire part. This is a critical advantage over topical painting; if a flexible part is scratched or stretched, the color remains uniform and consistent. We can even create specialized "Dual-Tone" parts or achieve specific transparency levels—from crystal-clear flexible lenses to "frozen" semi-opaque seals. This visual sovereignty ensures that your marketing samples are ready for high-definition photography the moment they emerge from the silicone tool, providing a retail-ready look that 3D prints simply cannot replicate.

JUCHENG Protocol: Zero-Drift Elastomeric Production

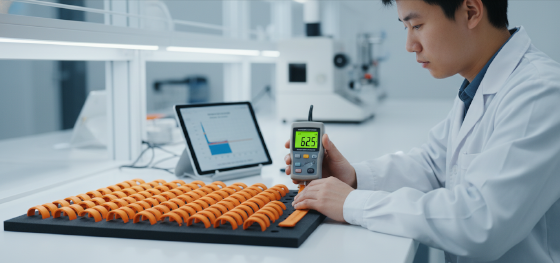

Manufacturing consistency is the cornerstone of Jucheng Precision’s operational philosophy. We recognize that flexible polyurethane vacuum casting is as much a science as it is an art. We utilize digital mixing stations and stabilized curing ovens to ensure that every part in a 50-unit batch exhibits the exact same Shore A hardness and dimensional accuracy. Our quality control lab audits every unit with precision durometers and CMM equipment, ensuring that shrinkage compensation for flexible materials (which can be more volatile than rigid ones) is perfectly managed. By partnering with JUCHENG, you aren't just buying rubber parts; you are securing a predictable manufacturing lifecycle. We provide the traceability, material documentation, and engineering support needed to move your most ambitious flexible designs from the lab to the global market. Stop compromising your brand’s tactile soul with crude 3D prints. Leverage our decade of chemical replication mastery to validate comfortably and launch profitably. Contact our technical team today for a free DFM review and see how we can turn your flexible CAD visions into high-fidelity physical reality.
