Injection molding is one of the most widely used manufacturing processes for producing plastic parts in high volumes. The key to successful injection molding lies in understanding the critical conditions required for setting up and operating an efficient workbench kit. This guide will explore the essential conditions needed for creating a functional injection molding workbench, from machine requirements and mold considerations to workspace ergonomics, safety protocols, and environmental factors. By following these guidelines, manufacturers can ensure quality production, minimize defects, and improve overall efficiency.
1. Introduction to Injection Molding
Injection molding is a process in which molten plastic is injected into a mold cavity, cooled, and ejected as a finished part. The technique is suitable for creating parts with complex shapes, tight tolerances, and repeatability. Injection molding is used in a variety of industries, including automotive, consumer electronics, medical devices, and household goods.
A well-organized and equipped injection molding workbench kit is essential to achieve high-quality parts while maintaining a smooth production flow. The components of this setup range from the machine and molds to tools, workspace layout, and environmental conditions. Let's examine the specific requirements for each aspect of the injection molding workbench kit.
2. Injection Molding Machine: Core Component of the Workbench
The centerpiece of any injection molding workbench kit is the injection molding machine itself. Machines come in various sizes, types, and configurations, but several key factors should be considered to select the right machine for a given application.
A. Machine Size and Tonnage
The size of the machine is determined by its clamping force or tonnage. The tonnage represents the pressure required to keep the mold closed during the injection process. The appropriate tonnage is based on the size and complexity of the part being molded, as well as the material used.
· Small parts: Machines with 50–150 tons of clamping force are typically used for small, intricate parts such as electronic connectors and consumer goods.
· Medium-sized parts: For components like automotive interiors or larger plastic parts, machines with 150–500 tons of clamping force are more appropriate.
· Large parts: For very large parts such as automotive bumpers or industrial containers, machines with clamping forces exceeding 500 tons are required.
B. Shot Size and Injection Capacity
The shot size refers to the amount of plastic material that can be injected into the mold during each cycle. It's essential to choose an injection molding machine with a shot size that matches or slightly exceeds the volume of the part being produced. Oversizing the shot capacity can lead to longer cooling times and wasted material, while undersizing can result in incomplete parts and material shortages.
C. Screw Design and Material Compatibility
The screw inside the barrel of the injection molding machine is responsible for melting, mixing, and injecting the plastic. Different screw designs are optimized for specific materials, such as:
· General-purpose screws: These are suitable for processing a wide range of thermoplastics, such as polyethylene (PE), polypropylene (PP), and acrylonitrile butadiene styrene (ABS).
· Barrier screws: Designed for efficient melting and mixing, they are used for engineering resins like polycarbonate (PC) and nylon.
· Vented screws: These allow gases to escape during the melting process, which is crucial for processing materials like polyvinyl chloride (PVC) that release volatile compounds.
The choice of screw depends on the material and the part’s specifications. Ensuring proper screw design is critical for consistent part quality and efficient material use.
3. Mold Design and Preparation
The mold is another critical component of the injection molding process. Proper mold design, construction, and maintenance are key to producing high-quality parts. Several factors must be considered when preparing a mold for use in an injection molding workbench kit.
A. Mold Material
Molds are typically made from steel or aluminum, with each material offering different advantages:
· Steel molds: These are durable and suitable for high-volume production runs. They can handle a wide range of materials and offer excellent part surface finish and dimensional accuracy. However, they are more expensive and take longer to machine.
· Aluminum molds: These are more cost-effective and quicker to machine, making them ideal for prototyping and low- to medium-volume production. However, they may wear faster and are not suitable for materials that require high injection pressures.
B. Mold Cavities and Cores
The number of cavities in a mold determines how many parts can be produced per cycle. A mold can have a single cavity or multiple cavities, depending on production requirements. Multi-cavity molds increase efficiency by producing several parts simultaneously, but they require more complex design and higher precision to ensure uniform quality across all parts.
Cores are the protruding features in a mold that form internal features of the part, such as holes or threads. The accuracy and durability of the cores are crucial for maintaining part consistency over long production runs.
C. Venting and Cooling
Proper venting is essential to allow air and gases to escape during the injection process. Poor venting can lead to defects such as voids, burns, or short shots (incomplete parts). Vent locations must be carefully designed to ensure complete filling without compromising the part's surface finish.
Cooling is another critical aspect of mold design. Efficient cooling channels reduce cycle times by quickly dissipating heat from the mold. This not only increases production efficiency but also helps maintain part quality by preventing warping and shrinkage.
4. Workspace Layout and Ergonomics
A well-organized workspace is vital for efficient injection molding operations. The layout should prioritize ease of access to tools, equipment, and materials, as well as worker comfort and safety. Here are the key factors to consider when setting up an injection molding workbench kit.
A. Equipment Placement

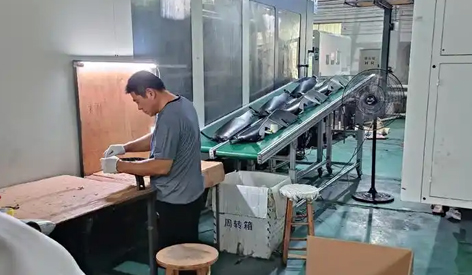

The injection molding machine should be placed in a central location, with adequate space for mold changes, material handling, and part removal. Surrounding workbenches should be positioned to allow easy access to tools, measurement instruments, and cleaning supplies.
Material storage, such as bins or racks for resin pellets, should be located near the machine to minimize downtime during material changes. Finished parts should be stored in dedicated bins or trays to prevent contamination or damage.
B. Operator Ergonomics
Injection molding operators perform repetitive tasks, such as loading material, inspecting parts, and conducting maintenance. Proper ergonomics can help reduce operator fatigue and improve productivity.
· Workbench height: The height of the workbench should be adjustable to accommodate operators of different heights and reduce the need for bending or reaching.
· Tool organization: Frequently used tools, such as wrenches, screwdrivers, and cleaning brushes, should be easily accessible and organized to minimize time spent searching for them.
· Part removal: Automated part removal systems, such as robotic arms or conveyors, can help reduce operator strain and increase efficiency in high-volume production environments.
5. Environmental Conditions and Safety Requirements
Maintaining the right environmental conditions in the injection molding workspace is essential for producing consistent, high-quality parts. Safety protocols must also be implemented to protect workers from potential hazards.
A. Temperature and Humidity Control
Temperature and humidity can affect both the injection molding process and the quality of the final parts. Excessive heat can cause material degradation, while too much humidity can lead to moisture absorption, especially in hygroscopic materials like nylon.
· Temperature: The workspace should be kept at a consistent temperature to prevent material inconsistencies and ensure uniform cooling. In some cases, temperature-controlled environments may be necessary for certain materials.
· Humidity: Dehumidifiers may be required to maintain optimal moisture levels, especially in environments with high humidity.
B. Safety Precautions
Injection molding involves high temperatures and pressures, making safety a top priority. The following safety precautions should be implemented in the workbench setup:
· Protective equipment: Operators should wear heat-resistant gloves, safety glasses, and protective clothing to guard against hot materials and sharp tools.
· Machine guarding: Injection molding machines should be equipped with safety guards and interlocks to prevent accidental access to moving parts during operation.
· Emergency stops: Machines must have accessible emergency stop buttons that can be used to quickly shut down the equipment in case of malfunction or operator injury.
6. Quality Control and Inspection
Ensuring part quality is an ongoing process that involves regular inspection and testing throughout the injection molding cycle. The workbench kit should include tools and equipment for monitoring key quality parameters.
A. Dimensional Inspection
Measuring tools such as calipers, micrometers, and gauges should be readily available to inspect the dimensions of molded parts. Automated inspection systems, such as coordinate measuring machines (CMMs), can be used for more complex parts that require tight tolerances.
B. Visual Inspection
Operators should perform visual inspections to check for surface defects such as sink marks, flash, or short shots. Automated vision systems can be employed to inspect parts for defects in high-volume production environments.
C. Material Testing
Material properties such as tensile strength, impact resistance, and hardness should be tested to ensure the parts meet the required specifications. This can be done through destructive or non-destructive testing methods, depending on the application.
7. Conclusion: Setting Up the Ideal Injection Molding Workbench Kit
Creating an efficient and well-organized injection molding workbench kit requires attention to detail in machine selection, mold design, workspace layout, environmental conditions, and safety protocols. By addressing these factors, manufacturers can ensure consistent part quality, minimize defects, and improve overall productivity. Whether producing small, intricate parts or large, high-volume components, a properly equipped injection molding workbench kit is essential for success.
