Laser marking is a critical final step in the manufacturing chain, transforming a raw aluminum component into a functional, traceable asset. Yet, the process is far more than simply drawing on the surface. For B2B applications, successful Laser Marking Aluminum means engineering a mark that is permanent, highly legible, and compliant with strict industry traceability standards (like those in Medical and Aerospace).
The biggest challenge is ensuring the mark survives the part's entire lifecycle without compromising the structural integrity or corrosion resistance of the aluminum. This guide provides an essential checklist for optimizing laser processes, especially concerning the widely used anodized finish, to achieve ultimate durability and contrast.
content:
Marking Techniques: Engraving vs. Annealing for Aluminum
Post-Processing Mastery: Laser Marking on Anodized Aluminum
Traceability Compliance: Meeting UID and Data Matrix Standards
Durability Testing: Ensuring the Mark Survives Abrasion

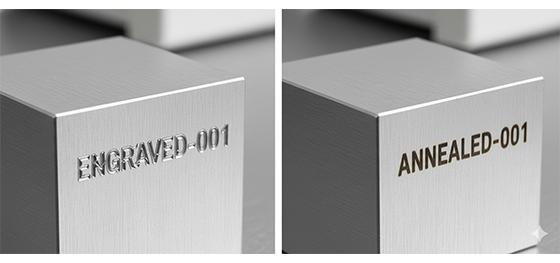

Marking Techniques: Engraving vs. Annealing for Aluminum
The choice of laser technique directly determines the durability and contrast of the final mark. For raw aluminum, two main methods are used, each with trade-offs:
Laser Engraving (Physical Removal): This uses high power to vaporize the aluminum, creating a permanent, recessed mark (a physical cavity). While extremely durable and permanent, excessive depth can introduce stress risers, potentially weakening a structurally critical component.
Laser Annealing (Surface Fusion): This technique heats the material below the melting point, causing the surface to oxidize or change its microstructure. It creates a dark, high-contrast mark with minimal depth, preserving the surface integrity, but it is typically slower and less durable against abrasion than engraving.
Process Control: A quality manufacturer must precisely control laser power and speed to avoid creating a deep, stress-inducing engraving while still ensuring the mark is legible and meets durability standards.
Post-Processing Mastery: Laser Marking on Anodized Aluminum
The most common and most effective way to mark aluminum is by lasering the anodized layer. Anodizing (Type II or Type III) creates a hard, porous oxide layer that drastically enhances corrosion resistance and creates a perfect canvas for contrast:

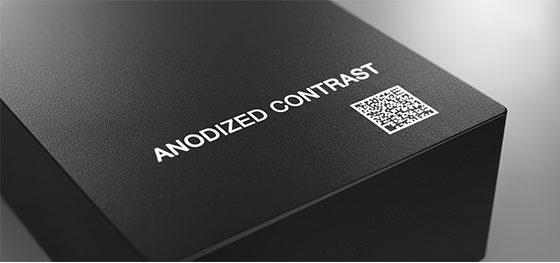

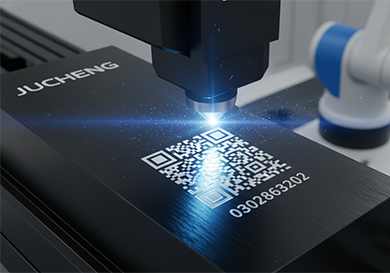

Color Contrast: Laser marking on anodized aluminum works by vaporizing the colored oxide layer, exposing the underlying bright, natural aluminum. This achieves the highest possible contrast (e.g., bright white mark on black anodized aluminum).
Anodizing First: The part must be anodized first, then marked. Marking raw aluminum and then trying to anodize it would seal the mark with color, making it illegible.
Post-Marking Sealing: For ultimate durability, a laser marking specialist can lightly seal the exposed aluminum substrate after marking, further protecting the material without losing contrast.
Traceability Compliance: Meeting UID and Data Matrix Standards
For regulated industries, the laser mark must be a highly functional asset used for tracking and inventory management. This requires adherence to global standards for Unique Identification (UID) and Data Matrix codes:

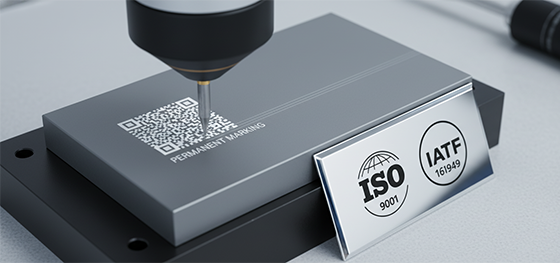

Data Matrix Codes (2D Barcodes): These compact codes encode vast amounts of data (part number, date, batch number) in a small area, making them ideal for small medical device components or aerospace fasteners. The mark must be high contrast and free of voids to ensure 100% readability by industrial scanners.

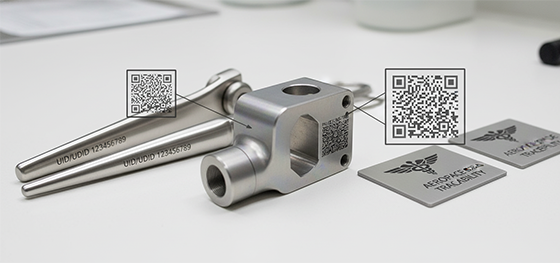

Medical Compliance (ISO 13485): Medical device parts often require a mark that is readable after repeated sterilization (autoclaving) and cannot shed material. This demands highly precise laser annealing or light etching that does not create debris.
Aerospace Compliance (IATF 16949 / AS9100): Structural aluminum parts require permanent, non-detrimental marking. The laser process must be validated not to reduce the part's fatigue life or introduce stress risers.
Durability Testing: Ensuring the Mark Survives Abrasion
The best way to verify a laser mark's effectiveness is through rigorous durability testing, ensuring the mark's legibility remains intact throughout the part's operational life:
The Rub Test (Abrasion Resistance): This simple, yet effective, test involves subjecting the marked area to repeated rubbing with a cloth and solvent to simulate wear and cleaning processes. The mark must remain fully legible to pass.
Salt Spray Testing: For parts in marine or highly corrosive environments, the marked area is subjected to a salt spray chamber. The mark must not show signs of corrosion or loss of contrast after exposure.
Laser Contrast Verification: Automated vision systems are used to assign a grade (A, B, C, etc.) to the mark based on its contrast and cell damage. A high-quality partner ensures the mark meets an A or B grade for consistent scanning.
Laser marking is the final, critical layer of quality control and traceability. Jucheng Precision Technology integrates laser marking directly into the CNC Machining and anodizing workflow, guaranteeing compliant, highly durable marks for every aluminum component.
Secure permanent traceability and contrast. Contact us today to discuss your complex aluminum part fabrication and marking compliance requirements.
