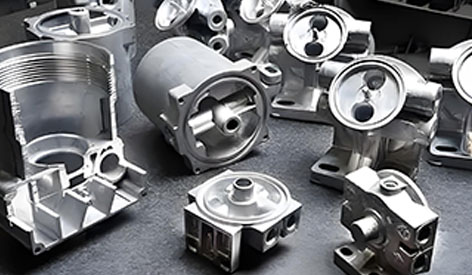

Metal casting is a widely used manufacturing process that involves pouring molten metal into a mold, allowing it to solidify, and then removing the final part. However, one of the most significant challenges in metal casting is shrinkage, which occurs as the metal cools and solidifies. Metal casting shrinkage can lead to defects, dimensional inaccuracies, and compromised mechanical properties, making it a critical factor in achieving high-quality cast components.
This article explores metal casting shrinkage from three perspectives: the technical process, the customer viewpoint, and the services provided by professional casting companies to mitigate shrinkage defects. Finally, we will introduce the high-quality part manufacturing solutions offered by Jucheng Precision.
content:
1. Metal Casting Shrinkage: Technical Perspective
1.1 Understanding Metal Shrinkage in Casting
Shrinkage in metal casting refers to the reduction in volume that occurs when molten metal cools and solidifies. This phenomenon is a natural consequence of thermal contraction and phase transformation. Shrinkage defects can be classified into three main types:
Liquid Shrinkage: Reduction in volume due to cooling of the liquid metal before solidification.
Solidification Shrinkage: Volume contraction during the phase change from liquid to solid.
Solid Shrinkage: Contraction that occurs after the metal has completely solidified.
1.2 Factors Influencing Shrinkage
Several factors influence the degree of shrinkage in casting, including:
Metal Composition: Different metals and alloys exhibit different shrinkage rates. For example:
Cooling Rate: Faster cooling rates can lead to uneven shrinkage and internal stresses.
Mold Material: Sand molds, investment casting molds, and permanent molds all affect heat dissipation differently.
Pouring Temperature: Higher pouring temperatures generally lead to increased shrinkage due to the greater volume difference between liquid and solid states.
1.3 Common Shrinkage Defects and Their Remedies
1.3.1 Shrinkage Porosity
Shrinkage porosity occurs when voids form within the metal due to inadequate feeding of molten metal during solidification. It typically appears as sponge-like cavities.Solutions:
Proper riser and gating system design to ensure continuous feeding.
Use of chills to promote directional solidification.
Optimization of alloy composition to control solidification behavior.
1.3.2 Shrinkage Cavities
Shrinkage cavities are larger voids that occur when sections of the casting solidify without a proper compensatory metal supply.Solutions:
Increase the number and size of feeders.
Modify casting design to reduce isolated thick sections.
Improve mold insulation and cooling strategies.
1.3.3 Hot Tearing
Hot tearing is caused by uneven contraction, leading to cracks in the casting.Solutions:
Adjusting mold design to reduce thermal stress concentration.
Use of flexible mold materials.
Controlling the cooling rate.
2. Customer Concerns Regarding Shrinkage in Casting
2.1 Dimensional Accuracy
Shrinkage can lead to parts that do not meet dimensional tolerances, causing rework or rejection. Customers often require precise shrinkage compensation in mold design to ensure finished parts meet specifications.
2.2 Mechanical Properties
Shrinkage porosity and cavities can weaken castings, reducing tensile strength, impact resistance, and fatigue life. Customers expect high-performance parts free from internal voids.
2.3 Aesthetic and Surface Quality
Shrinkage defects can create rough surfaces or visible imperfections. Industries such as automotive, aerospace, and medical require castings with minimal surface defects to meet functional and cosmetic standards.
2.4 Cost and Lead Time Implications
Casting defects due to shrinkage lead to increased production costs due to scrap, rework, and quality control measures. Customers prioritize suppliers who can minimize shrinkage and ensure consistent, defect-free production.
3. How Professional Casting Companies Manage Shrinkage
3.1 Advanced Simulation and Modeling
Professional casting companies utilize computer-aided engineering (CAE) and casting simulation software such as MAGMASOFT, ProCAST, or SOLIDCast to predict and prevent shrinkage defects before production.
3.2 Optimized Gating and Riser Design
Using strategically placed risers and an optimized gating system, companies ensure a continuous supply of molten metal to compensate for shrinkage, reducing porosity and cavities.
3.3 Use of High-Quality Mold Materials
Companies select mold materials with appropriate thermal conductivity to control cooling rates and minimize shrinkage-related stress.
3.4 Heat Treatment and Post-Casting Processing
Post-processing techniques such as hot isostatic pressing (HIP), solution treatment, and annealing are used to reduce internal shrinkage defects and improve mechanical properties.
3.5 Precision Machining and Quality Control
CNC machining is often used to refine dimensional tolerances.
Non-destructive testing (NDT) methods such as X-ray, ultrasonic testing, and dye penetrant testing ensure shrinkage defects are identified and eliminated.
3.6 Customized Solutions for Specific Industries
Professional casting companies tailor their shrinkage compensation strategies based on industry needs. For example:
Aerospace: High-strength alloys and precision-controlled shrinkage.
Automotive: High-volume production with consistent quality.
Medical Devices: Biocompatible materials with defect-free surfaces.
4. Jucheng Precision: A Trusted Partner in High-Quality Metal Parts Manufacturing
Jucheng Precision is a leading provider of high-quality, precision-engineered metal components, specializing in casting, CNC machining, and custom part production. By employing state-of-the-art casting simulation, optimized gating designs, and rigorous quality control, Jucheng Precision ensures that every part meets the highest standards of accuracy, durability, and reliability.
Key advantages of Jucheng Precision's manufacturing services:
Advanced casting technologies to minimize shrinkage defects.
High-precision machining for superior dimensional accuracy.
Comprehensive quality assurance, including NDT inspection.
Custom solutions tailored to specific industry requirements.
By choosing Jucheng Precision, manufacturers gain access to cost-effective, high-performance casting solutions that enhance product reliability while reducing waste and production inefficiencies.
5.Conclusion
Metal casting shrinkage is an inherent challenge in the casting process, but with advanced techniques, proper process control, and professional expertise, shrinkage defects can be significantly reduced. Customers must work with experienced casting companies that offer advanced simulation, optimized gating designs, and high-quality quality control methods to ensure defect-free production.
Jucheng Precision stands out as a trusted manufacturing partner, providing reliable, high-quality casting solutions to meet diverse industrial needs. With a commitment to excellence, innovation, and precision, Jucheng Precision ensures superior metal part production with minimal shrinkage issues, making them the ideal choice for demanding applications across industries.
