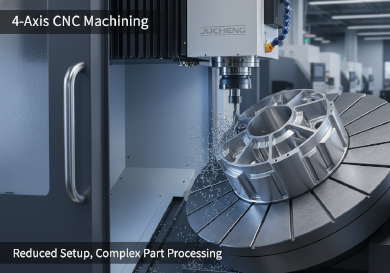

While 3-axis CNC machines are the foundation of machining, 4-Axis CNC represents a crucial step up in efficiency and complexity. By adding a rotating A-axis (the rotary table), a 4-axis machine can perform operations on multiple faces of a part in a single setup, drastically reducing both cycle time and the risk of accumulated errors.
For B2B buyers sourcing complex parts for Automotive and Medical Devices, the 4-axis capability is key to optimizing cost and ensuring precision. This guide explores the strategic advantages of 4-axis technology, its role as a high-efficiency alternative to standard 3-axis, and how a manufacturer’s access to advanced 5-axis capabilities further secures your complex projects.
content:
Efficiency Gains: The Cost Impact of Single-Setup Machining
Precision Control: Minimizing Cumulative Error in 4-Axis
Complex Features: Machining Undercuts and Off-Center Holes
The 4-to-5-Axis Bridge: Scaling Complexity and Capacity

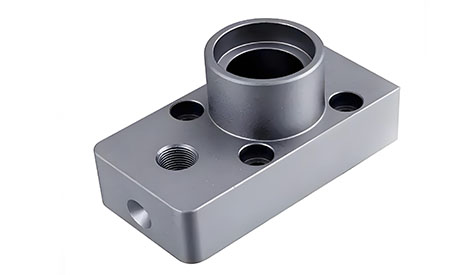

Efficiency Gains: The Cost Impact of Single-Setup Machining
The primary financial advantage of 4-Axis CNC over 3-Axis is the dramatic reduction in setup time. Every time a part is removed from the machine, rotated, and re-clamped, costs accumulate and errors are introduced:
Reduced Cycle Time: For a part requiring machining on four sides, a 3-axis machine requires four separate setups. A 4-axis machine requires only one or two. Eliminating three setups directly translates to lower labor costs, faster cycle times, and quicker delivery.
Automation Potential: With the operator spending less time manually flipping and clamping parts, 4-axis machines are easier to integrate into automated, high-volume production cells, significantly lowering the unit cost for medium-batch runs.
Tooling Savings: Fewer setups mean less wear on specialized tooling and fixtures, reducing overall maintenance and consumable expenses.
Precision Control: Minimizing Cumulative Error in 4-Axis
For components requiring high-precision alignment between features on different faces (e.g., matching bolt patterns or intersecting holes), 4-axis technology is essential for risk mitigation:

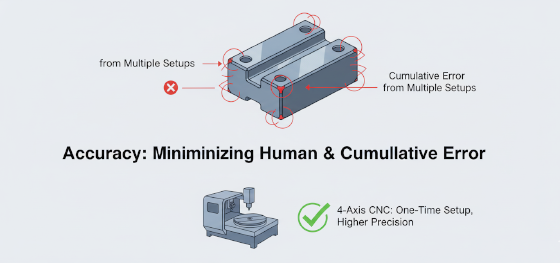

Eliminating Operator Error: Each manual setup requires the operator to re-align the part perfectly. Any minute misalignment introduces a cumulative error (tolerance stacking) that risks scrapping the part. The 4-axis machine’s rotary table removes the human element from this critical alignment step.
Improved Concentricity: For cylindrical parts that require features milled or drilled around the perimeter, the controlled rotation of the 4th axis ensures the highest degree of concentricity and circularity, crucial for rotating assemblies.
Surface Finish: By allowing the cutter to remain at an optimal angle relative to the surface, 4-axis machining can achieve a superior surface finish and extend tool life, especially when using end mills.

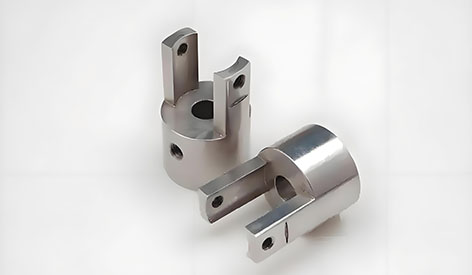

Complex Features: Machining Undercuts and Off-Center Holes
The added rotational capability of a 4-axis machine unlocks the ability to create geometries that are simply impossible or impractical on a standard 3-axis mill:
Undercuts and Channels: The rotary table allows the workpiece to be presented to the tool at a precise angle, enabling the creation of internal undercuts, slots, and keyways that run along the length of a cylindrical part.
Wrap-Around Features: The 4th axis allows features like engravings, slots, and off-center holes to be "wrapped around" a curved or cylindrical part, maintaining the correct spatial relationship between all features.
Aerospace and Fluid Dynamics: This capability is critical for components like manifolds, turbine blades, and automotive fittings, where internal ports and angled features are required for optimal fluid flow.
The 4-to-5-Axis Bridge: Scaling Complexity and Capacity
A truly capable manufacturer not only offers 4-axis capabilities but also maintains a fleet of advanced 5-axis machines. This ensures that when a component exceeds the 4-axis's fixed-angle limits, the project can be seamlessly scaled up without moving to a new supplier.
The 5-Axis Advantage: Our 25 high-precision 5-axis Haas/Mazak machines offer continuous tool path movement along two rotational axes simultaneously, allowing for the machining of extremely complex, organic shapes that are impossible on a 4-axis machine.
Risk Mitigation: By partnering with a company that masters both 4- and 5-axis machining (along with Die Casting and Injection Molding), you mitigate the risk of needing to switch partners when your prototype complexity increases or production volume scales up.
Global Certification: Unlike small local shops, Jucheng Precision Technology's multi-axis fleet operates under stringent IATF 16949 and ISO 13485 certifications, guaranteeing the quality and process control demanded by global automotive and medical clients.
4-Axis CNC is a strategic investment in manufacturing efficiency and part precision. Jucheng Precision Technology offers the capacity, technology, and certified quality to maximize the efficiency of your 4-axis projects while providing the necessary 5-axis capability to handle your most complex structural designs.
Secure advanced, high-efficiency machining for your complex parts. Contact us today to leverage our multi-axis expertise and global manufacturing excellence.
