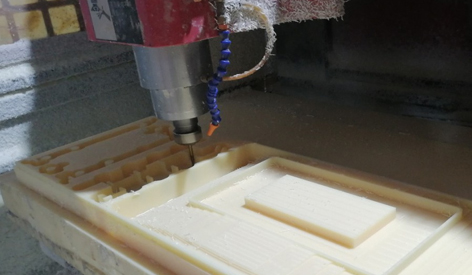

Machining plastic blocks is a common practice in manufacturing industries to create precision components for various applications, including automotive, aerospace, medical devices, and consumer goods. This article explores the technical measures and optimization processes necessary to achieve high-quality results when machining plastic blocks. Key aspects include material selection, tooling, machining parameters, cooling and lubrication, and post-processing techniques.
Introduction to Machining Plastic Blocks
Plastic materials offer several advantages over metals, such as lower weight, corrosion resistance, and ease of machining. However, machining plastics presents unique challenges, including issues with heat generation, material deformation, and achieving tight tolerances. Understanding the properties of different plastic materials and optimizing the machining process are critical to overcoming these challenges.
Commonly Machined Plastic Materials
1. Acrylonitrile Butadiene Styrene (ABS): Known for its toughness and impact resistance, ABS is widely used in automotive and consumer goods applications.
2. Polycarbonate (PC): Offers high impact resistance and optical clarity, making it suitable for medical devices and safety equipment.
3. Polyethylene (PE): Available in various densities, PE is known for its chemical resistance and low moisture absorption.
4. Polypropylene (PP): Valued for its chemical resistance and flexibility, PP is used in a variety of industrial applications.
5. Polyoxymethylene (POM): Also known as acetal, POM is characterized by its high stiffness, low friction, and excellent dimensional stability.
Technical Measures for Machining Plastic Blocks
Material Selection
Choosing the appropriate plastic material is the first step in ensuring successful machining. Factors to consider include:
1. Mechanical Properties: Strength, toughness, and hardness influence how the material responds to machining.
2. Thermal Properties: Heat resistance and thermal expansion are critical, as plastics can deform or melt under high temperatures.
3. Chemical Resistance: The material's ability to withstand exposure to coolants, lubricants, and environmental conditions.
4. Dimensional Stability: The ability of the material to maintain its shape and size during and after machining.
Tooling
Selecting the right tools is essential for achieving high-quality machined plastic parts. Key considerations include:
1. Tool Material: High-speed steel (HSS) and carbide tools are commonly used for machining plastics. Carbide tools offer better wear resistance and are suitable for abrasive plastics.
2. Tool Geometry: Optimizing tool geometry, including rake angle, clearance angle, and edge sharpness, helps reduce heat generation and material deformation. Sharp tools with positive rake angles are recommended for plastics.
3. Tool Coatings: Coatings such as titanium nitride (TiN) can improve tool life and reduce friction, enhancing the machining process.
Machining Parameters
Optimizing machining parameters is crucial for achieving the desired surface finish and dimensional accuracy. Important parameters include:
1. Cutting Speed: Plastics generally require higher cutting speeds than metals. However, excessive speed can lead to heat buildup and material melting.
2. Feed Rate: The feed rate should be balanced to avoid excessive tool wear and ensure a smooth surface finish. Too high a feed rate can cause chipping or tearing, while too low a feed rate can result in poor surface quality.
3. Depth of Cut: Incremental depth of cut helps manage heat generation and material removal. Taking multiple shallow passes rather than a single deep cut can improve overall quality.
Cooling and Lubrication
Effective cooling and lubrication are essential to prevent heat buildup and ensure smooth machining of plastics. Considerations include:
1. Coolants: Water-soluble coolants are commonly used for machining plastics. They help dissipate heat and reduce friction between the tool and the workpiece.
2. Lubricants: Lubricants such as cutting oils can minimize friction and prevent material sticking to the tool. However, compatibility with the plastic material must be considered to avoid chemical reactions.
3. Air Cooling: Compressed air can be used to cool the cutting zone and remove chips, reducing the risk of heat-induced deformation.
Workholding
Securely holding the plastic block during machining is critical to achieving precision and preventing vibration or movement. Techniques include:
1. Vices and Clamps: Using vices and clamps designed for delicate materials helps prevent damage and ensures stable positioning.
2. Vacuum Fixtures: Vacuum fixtures provide a strong hold without mechanical stress, ideal for thin or flexible plastic parts.
3. Soft Jaws: Soft jaws made from plastic or rubber can grip the workpiece without marring the surface.
Optimization Processes
Process Planning
Effective process planning involves sequencing machining operations to achieve the best results. Key steps include:
1. Initial Roughing: Removing the bulk of the material with roughing cuts to form the general shape of the part.
2. Semi-Finishing: Refining the shape and preparing for final finishing operations.
3. Finishing: Achieving the final dimensions and surface finish with precise, low-depth cuts.
Tool Path Optimization
Optimizing the tool path can significantly enhance machining efficiency and quality. Techniques include:
1. Adaptive Clearing: Using adaptive clearing strategies to maintain a constant chip load and reduce tool wear.
2. High-Speed Machining (HSM): Implementing HSM techniques to minimize cycle times while maintaining accuracy and surface finish.
3. Trochoidal Milling: Employing trochoidal milling for improved chip evacuation and reduced heat buildup, especially in complex geometries.
Quality Control
Maintaining strict quality control throughout the machining process ensures consistent results. Key practices include:
1. Inspection: Regularly inspecting parts using calipers, micrometers, and coordinate measuring machines (CMMs) to verify dimensions and tolerances.
2. Surface Finish Assessment: Evaluating the surface finish with profilometers or visual inspection to ensure it meets specifications.
3. In-Process Monitoring: Using in-process monitoring systems to detect tool wear, vibration, and other issues that could affect part quality.
Post-Processing
Post-processing techniques can enhance the functionality and appearance of machined plastic parts. Common methods include:
1. Deburring: Removing sharp edges and burrs with tools such as deburring knives, files, or rotary tools.
2. Polishing: Achieving a smooth, glossy finish with polishing compounds and equipment.
3. Annealing: Relieving internal stresses in the plastic through controlled heating and cooling to improve dimensional stability.
Conclusion
Machining plastic blocks requires a combination of careful material selection, appropriate tooling, optimized machining parameters, effective cooling and lubrication, and rigorous quality control. By following these technical measures and optimization processes, manufacturers can produce high-quality, precision plastic parts that meet the demands of various applications.
