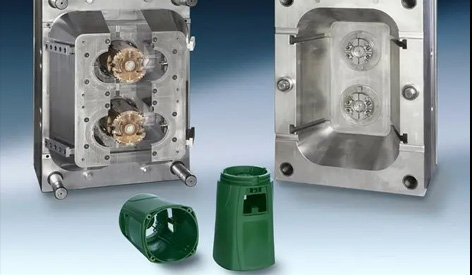

Plastic injection molding is a widely used manufacturing process for producing high-quality plastic parts. This method involves injecting molten plastic into a mold cavity, where it cools and solidifies into the desired shape. The quality of plastic parts produced by injection molding is influenced by various factors, including material selection, mold design, process parameters, and quality control measures. This article explores these factors in detail, providing a comprehensive understanding of how to achieve and maintain high quality in plastic injection-molded parts.
Material Selection
Types of Plastics
The choice of plastic material is crucial for the quality of the final product. Different types of plastics offer varying properties, such as strength, flexibility, chemical resistance, and temperature stability. Common plastics used in injection molding include:
· Polypropylene (PP): Known for its chemical resistance, low density, and flexibility.
· Acrylonitrile Butadiene Styrene (ABS): Offers excellent impact resistance, toughness, and rigidity.
· Polyethylene (PE): Available in various densities, PE is known for its flexibility and chemical resistance.
· Polycarbonate (PC): Provides high impact resistance and optical clarity.
· Nylon (PA): Known for its strength, durability, and resistance to wear and chemicals.
Material Properties
Understanding the properties of the selected plastic is essential to ensure that it meets the requirements of the application. Key properties to consider include:
· Melt Flow Index (MFI): Indicates the viscosity of the molten plastic, affecting the ease of flow into the mold.
· Tensile Strength: Measures the material's resistance to breaking under tension.
· Flexural Modulus: Indicates the material's stiffness or resistance to bending.
· Heat Deflection Temperature (HDT): The temperature at which the material deforms under a specified load.
· Shrinkage Rate: The reduction in size of the plastic part as it cools and solidifies, affecting dimensional accuracy.
Mold Design
Precision and Accuracy
The quality of the mold directly impacts the quality of the injection-molded parts. A well-designed mold ensures that parts are produced with high precision and accuracy. Key considerations in mold design include:
· Cavity and Core: The cavity and core form the shape of the part. They must be precisely machined to achieve the desired dimensions and surface finish.
· Cooling System: Efficient cooling channels within the mold help control the cooling rate, reducing cycle times and improving part quality.
· Ejection System: The ejection system must be designed to remove the part from the mold without causing damage or deformation.
· Gating System: The design of the gates and runners affects the flow of molten plastic into the mold cavities, influencing the filling pattern and minimizing defects.
Mold Materials
The materials used for mold construction affect the durability and performance of the mold. Common materials include:
· Tool Steel: Known for its hardness and wear resistance, making it suitable for high-volume production.
· Aluminum: Lightweight and easier to machine, suitable for low to medium-volume production and prototyping.
· Beryllium-Copper Alloys: Used in areas requiring high thermal conductivity for improved cooling efficiency.
Process Parameters
Injection Pressure and Speed
The injection pressure and speed must be carefully controlled to ensure that the mold cavity is filled uniformly and completely. High pressure and speed can reduce cycle times but may increase the risk of defects such as flash (excess material) and burn marks. Conversely, low pressure and speed can result in incomplete filling and short shots.
Temperature Control
Temperature control is critical at various stages of the injection molding process:
· Barrel Temperature: The temperature of the plastic in the injection barrel must be maintained within a specific range to ensure proper melting and flow.
· Mold Temperature: The mold temperature affects the cooling rate and, consequently, the dimensional stability and surface finish of the part.
· Nozzle Temperature: The nozzle temperature must be controlled to prevent premature solidification or degradation of the plastic.
Cycle Time
Cycle time is the total time required to produce one part, including injection, cooling, and ejection. Optimizing cycle time is essential for improving productivity while maintaining part quality. Reducing cycle time without compromising quality involves balancing the various process parameters and ensuring efficient cooling and ejection.
Quality Control Measures
In-Process Monitoring
Continuous monitoring of the injection molding process helps identify and address issues in real-time. Key in-process monitoring techniques include:
· Pressure and Temperature Sensors: These sensors provide real-time data on the conditions within the mold, allowing for adjustments to maintain optimal parameters.
· Vision Systems: Cameras and image processing software can inspect parts for defects such as surface imperfections, dimensional deviations, and color variations.
Post-Production Inspection
Comprehensive inspection of the final parts is crucial to ensure they meet the required specifications. Common inspection methods include:
· Visual Inspection: Identifies obvious defects such as surface blemishes, flash, and sink marks.
· Dimensional Inspection: Measures the dimensions of the parts using tools such as calipers, micrometers, and coordinate measuring machines (CMMs) to ensure they meet the specified tolerances.
· Functional Testing: Tests the parts under actual operating conditions to verify their performance and durability.
Statistical Process Control (SPC)
SPC involves the use of statistical methods to monitor and control the injection molding process. By analyzing data from the production process, manufacturers can identify trends, detect variations, and implement corrective actions to maintain consistent quality. Common SPC tools include control charts, process capability analysis, and Pareto analysis.
Common Quality Issues and Solutions
Warping
Warping occurs when different areas of the part cool and shrink at different rates, causing the part to deform. Solutions include:
· Uniform Wall Thickness: Designing parts with uniform wall thickness reduces the likelihood of warping.
· Cooling Rate Control: Ensuring even cooling throughout the mold helps minimize internal stresses that lead to warping.
Sink Marks
Sink marks are depressions on the surface of the part, often caused by thick sections of material cooling and shrinking unevenly. Solutions include:
· Proper Gate Placement: Placing gates near thick sections helps ensure even filling and cooling.
· Optimized Packing Pressure: Applying sufficient packing pressure during the cooling phase helps compensate for shrinkage.
Flash
Flash is excess material that escapes from the mold cavity and solidifies along the parting line. Solutions include:
· Mold Maintenance: Regular maintenance and inspection of the mold ensure that it remains properly aligned and free of wear.
· Optimal Clamping Force: Applying the appropriate clamping force prevents the mold from opening slightly during injection.
Short Shots
Short shots occur when the mold cavity is not completely filled, resulting in incomplete parts. Solutions include:
· Proper Venting: Ensuring adequate venting allows trapped air to escape, facilitating complete filling.
· Increased Injection Pressure and Speed: Increasing the injection pressure and speed helps ensure the molten plastic reaches all areas of the mold cavity.
Conclusion
The quality of plastic parts produced by an injection-molding operation depends on several critical factors, including material selection, mold design, process parameters, and quality control measures. By carefully managing these factors, manufacturers can produce high-quality parts that meet stringent specifications and performance requirements.
