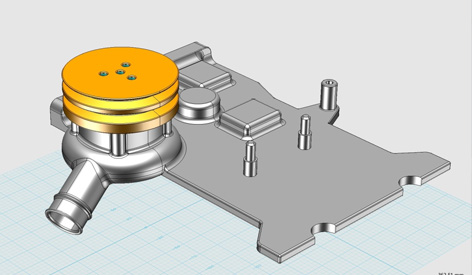

precision metal design

Precision metal design is a field that blends engineering acumen, creative craftsmanship, and advanced material science to produce high-quality components and products. These components are essential in various industries, including aerospace, automotive, medical devices, and electronics, where exact specifications and performance criteria are paramount. This article delves into the critical aspects of precision metal design, covering the necessary skills, structural considerations, craftsmanship, and material selection, providing a comprehensive guide for professionals and enthusiasts alike.

The Essential Skills in Precision Metal Design

Designing precision metal parts requires a combination of technical skills, creativity, and practical knowledge. Key skills include:

1. Technical Proficiency

· CAD Software Expertise: Proficiency in computer-aided design (CAD) software is fundamental. Tools like SolidWorks, AutoCAD, and CATIA enable designers to create detailed models and simulations, ensuring that the design meets all specifications and can be accurately manufactured.

· Understanding of Manufacturing Processes: Knowledge of various manufacturing processes, such as CNC machining, stamping, casting, and additive manufacturing, is essential. This understanding helps designers create parts that are not only functional but also manufacturable.

2. Mathematical and Analytical Skills

· Geometry and Trigonometry: Precision design often involves complex shapes and structures that require a solid grasp of geometry and trigonometry.

· Finite Element Analysis (FEA): This analytical technique helps in predicting how parts will react to real-world forces, such as heat, vibration, and pressure, allowing for optimization of the design before manufacturing.

3. Attention to Detail

Precision metal design requires meticulous attention to detail. Every dimension, tolerance, and finish must be specified accurately to ensure the part functions correctly and integrates seamlessly with other components.

4. Problem-Solving Abilities

Designers must be adept at identifying potential issues in the design phase and developing innovative solutions to address them. This includes troubleshooting design flaws and optimizing parts for performance and manufacturability.

5. Communication Skills

Effective communication is vital, as precision metal design often involves collaboration with engineers, machinists, quality control specialists, and clients. Clear communication ensures that design intent is understood and correctly implemented throughout the production process.

Structural Considerations in Precision Metal Design

The structural integrity of precision metal parts is crucial, especially in applications where failure could lead to significant consequences. Key structural considerations include:

1. Load-Bearing Capacity

· Stress Analysis: Conducting stress analysis helps determine how the part will handle different loads and forces. This is particularly important for parts subjected to dynamic or cyclic loading.

· Factor of Safety: Incorporating a factor of safety into the design ensures that the part can withstand unexpected stresses and loads, enhancing reliability and durability.

2. Dimensional Tolerances

· Tight Tolerances: Precision parts often require extremely tight tolerances to function correctly. This demands high precision in both design and manufacturing.

· Geometric Dimensioning and Tolerancing (GD&T): GD&T standards help in accurately defining the geometry of parts and their allowable variations, ensuring consistent quality and interoperability.

3. Thermal Stability

· Material Properties: Understanding how materials react to temperature changes is essential, especially for parts used in high-temperature environments.

· Thermal Expansion: Designers must account for thermal expansion and contraction to prevent parts from deforming or losing functionality under varying temperatures.

4. Vibration and Fatigue Resistance

· Dynamic Analysis: Analyzing how parts will respond to vibrations and repeated stresses can prevent fatigue failure and extend the lifespan of the components.

· Material Selection: Choosing materials with high fatigue resistance and incorporating design features that reduce stress concentrations can enhance durability.

Craftsmanship in Precision Metal Design

Craftsmanship in precision metal design involves the skillful application of techniques and processes to transform raw materials into finely crafted components. Key aspects include:

1. Machining Techniques

· CNC Machining: Computer Numerical Control (CNC) machining allows for the production of highly precise and complex parts with consistent quality.

· Manual Machining: Skilled machinists use lathes, mills, and other manual tools to create custom parts, often making adjustments based on their experience and intuition.

2. Surface Finishing

· Polishing and Buffing: These techniques improve the surface finish, enhancing the appearance and reducing friction.

· Coating and Plating: Applying protective coatings or plating (e.g., anodizing, electroplating) can improve corrosion resistance and wear properties.

3. Assembly and Integration

· Precision Assembly: Assembling parts with high precision ensures that the final product meets all functional and aesthetic requirements.

· Testing and Validation: Rigorous testing and validation processes verify that assembled parts perform as expected under real-world conditions.

4. Customization and Prototyping

· Rapid Prototyping: Techniques like 3D printing enable quick production of prototypes, allowing for iterative design improvements and faster development cycles.

· Custom Solutions: Craftsmanship often involves creating custom solutions tailored to specific applications and requirements, showcasing the blend of technical skill and creative problem-solving.

Material Selection in Precision Metal Design

The choice of materials plays a pivotal role in the performance and manufacturability of precision metal parts. Key considerations for material selection include:

1. Mechanical Properties

· Strength and Hardness: Materials must have sufficient strength and hardness to withstand operational stresses without deforming or failing.

· Toughness: Tough materials can absorb energy and resist impact without fracturing, which is important for parts subjected to sudden forces.

2. Corrosion Resistance

· Environmental Exposure: Parts exposed to harsh environments, such as marine or chemical applications, require materials with high corrosion resistance, such as stainless steel or titanium.

· Protective Coatings: Applying coatings like zinc plating or anodizing can enhance the corrosion resistance of the base material.

3. Thermal Properties

· Heat Resistance: Materials used in high-temperature applications, such as aerospace components, must retain their mechanical properties at elevated temperatures.

· Thermal Conductivity: For applications involving heat dissipation, materials with high thermal conductivity, like copper or aluminum, are preferred.

4. Machinability

· Ease of Machining: Materials that are easier to machine reduce production time and tool wear, leading to cost savings.

· Surface Finish: Some materials inherently achieve better surface finishes, which can reduce the need for additional finishing processes.

5. Availability and Cost

· Material Availability: Readily available materials reduce lead times and production costs.

· Cost-Effectiveness: Balancing material performance with cost is essential to ensure the economic viability of the design.

Conclusion

Precision metal design is a multifaceted discipline that requires a blend of technical skills, structural insight, craftsmanship, and strategic material selection. By mastering these elements, designers can create components that meet stringent performance criteria and add significant value to their applications. Whether it’s for aerospace, automotive, medical devices, or electronics, precision metal design remains a cornerstone of modern engineering and manufacturing.
