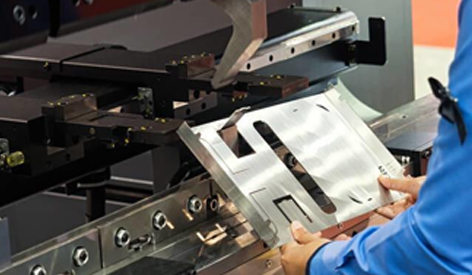

Stainless steel stampings are critical components in various industries, from automotive to aerospace, due to their strength, corrosion resistance, and durability. Ensuring the highest quality in stainless steel stampings involves meticulous attention to several factors, including material selection, design considerations, tooling, stamping process optimization, and quality control measures. This article explores these aspects in detail to provide a comprehensive guide on improving the quality of stainless steel stampings.
Material Selection
Grades of Stainless Steel
Choosing the right grade of stainless steel is paramount for achieving the desired properties in the stamped parts. Common grades used in stamping include:
· Austenitic Stainless Steels (e.g., 304, 316): Known for their excellent corrosion resistance and formability. Grade 304 is the most widely used, while grade 316 offers enhanced corrosion resistance.
· Ferritic Stainless Steels (e.g., 430): Provide good corrosion resistance and are more affordable but less formable than austenitic grades.
· Martensitic Stainless Steels (e.g., 410, 420): Known for their high strength and hardness but less corrosion-resistant than austenitic and ferritic grades.
· Duplex Stainless Steels: Combine the properties of austenitic and ferritic grades, offering high strength and excellent resistance to stress corrosion cracking.
Material Properties
Understanding the specific properties of the selected stainless steel grade is crucial for optimizing the stamping process. Key properties to consider include:
· Yield Strength: Indicates the stress at which the material begins to deform plastically. Higher yield strength can lead to greater springback during stamping.
· Tensile Strength: The maximum stress the material can withstand while being stretched or pulled.
· Elongation: Measures the material's ductility, impacting its ability to be formed without cracking.
· Hardness: Affects the wear resistance and machinability of the material.
· Corrosion Resistance: Determines the material's suitability for the intended environment.
Design Considerations
Part Geometry
Designing for manufacturability is essential to ensure high-quality stampings. Key considerations include:
· Uniform Wall Thickness: Maintaining consistent wall thickness reduces the risk of warping and ensures uniform material flow during stamping.
· Avoiding Sharp Corners: Rounded corners help distribute stress more evenly and reduce the likelihood of cracking.
· Adequate Draft Angles: Including appropriate draft angles facilitates easier ejection of parts from the die.
Tolerances and Specifications
Defining precise tolerances and specifications is critical for achieving consistent quality. Close collaboration between design and manufacturing teams helps ensure that the design is feasible and meets the required standards.
Finishing and Surface Treatments
Consideration of surface finishes and treatments is essential for improving the aesthetic and functional properties of the stamped parts. Common treatments include:
· Passivation: Enhances corrosion resistance by removing surface contaminants.
· Electropolishing: Provides a smooth, reflective surface finish.
· Coating and Plating: Additional protective layers can be applied for enhanced durability and appearance.
Tooling
Die Design and Maintenance
The quality of the die directly impacts the quality of the stamped parts. Key aspects of die design and maintenance include:
· Precision Machining: Dies must be machined with high precision to ensure accurate part dimensions and surface finishes.
· Regular Maintenance: Routine inspection and maintenance of dies prevent wear and damage, ensuring consistent quality over time.
· Material Selection for Dies: High-quality tool steels, such as D2 or M2, are commonly used for their durability and resistance to wear.
Progressive Dies
Progressive dies are widely used in stainless steel stamping due to their ability to perform multiple operations in a single pass. This improves efficiency and part consistency. Key benefits include:
· High Throughput: Progressive dies enable high-speed production, reducing cycle times.
· Consistency: By performing multiple operations in a single pass, progressive dies ensure consistent part quality.
Stamping Process Optimization
Process Parameters
Optimizing the stamping process parameters is crucial for achieving high-quality parts. Key parameters include:
· Press Speed and Force: Adjusting press speed and force to match the material and part geometry ensures proper forming without causing defects.
· Lubrication: Proper lubrication reduces friction and wear on the dies, improving part quality and extending tool life.
· Temperature Control: Maintaining appropriate temperatures during stamping can help prevent material deformation and improve dimensional accuracy.
Springback Compensation
Springback is a common issue in stainless steel stamping due to the material's high strength and elasticity. Techniques to compensate for springback include:
· Over-Bending: Slightly over-bending the part to account for the material's tendency to return to its original shape.
· Using Springback Compensation Software: Advanced software can predict and compensate for springback during the design phase.
Process Automation
Automating the stamping process enhances quality by reducing human error and ensuring consistent operation. Key aspects of automation include:
· Robotic Handling: Robots can handle parts with precision and consistency, reducing the risk of damage.
· Real-Time Monitoring: Sensors and monitoring systems provide real-time data on process parameters, allowing for immediate adjustments to maintain quality.
Quality Control Measures
In-Process Monitoring
Continuous monitoring during the stamping process helps detect and address issues early. Key techniques include:
· Force and Displacement Sensors: These sensors provide real-time data on the forces and displacements during stamping, helping identify anomalies.
· Vision Systems: Cameras and image processing software can inspect parts for surface defects and dimensional deviations.
Post-Production Inspection
Thorough inspection of stamped parts is essential to ensure they meet the required specifications. Common inspection methods include:
· Visual Inspection: Identifies obvious defects such as surface blemishes, burrs, and deformations.
· Dimensional Inspection: Measures the dimensions of the parts using tools such as calipers, micrometers, and coordinate measuring machines (CMMs) to ensure they meet the specified tolerances.
· Material Testing: Conducting tests such as hardness testing and tensile testing to verify the material properties.
Statistical Process Control (SPC)
SPC involves using statistical methods to monitor and control the stamping process. By analyzing data from the production process, manufacturers can identify trends, detect variations, and implement corrective actions to maintain consistent quality. Common SPC tools include control charts, process capability analysis, and Pareto analysis.
Common Quality Issues and Solutions
Burrs
Burrs are unwanted raised edges or small pieces of material remaining attached to the part after stamping. Solutions include:
· Optimized Tooling: Using high-quality, well-maintained dies reduces the occurrence of burrs.
· Deburring Processes: Implementing secondary deburring processes, such as tumbling, grinding, or brushing, removes burrs and improves part quality.
Surface Defects
Surface defects, such as scratches and dents, can occur during handling and processing. Solutions include:
· Proper Handling: Using appropriate handling techniques and equipment to prevent damage.
· Protective Coatings: Applying protective coatings to the dies and parts reduces the risk of surface defects.
Dimensional Variations
Dimensional variations can result from improper process parameters or tooling issues. Solutions include:
· Precision Tooling: Ensuring that dies are machined and maintained to high precision standards.
· Process Optimization: Continuously monitoring and adjusting process parameters to maintain dimensional accuracy.
Cracking and Splitting
Cracking and splitting can occur due to excessive stress or improper material selection. Solutions include:
· Material Selection: Choosing a material grade with adequate ductility and toughness for the application.
· Stress Relief: Implementing stress relief processes, such as annealing, to reduce internal stresses in the material.
Conclusion
Improving the quality of stainless steel stampings requires a comprehensive approach, considering material selection, design, tooling, process optimization, and quality control measures. By addressing these factors, manufacturers can produce high-quality stampings that meet the stringent requirements of various industries.
