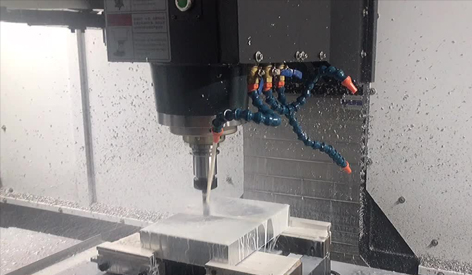

Vertical milling machines are fundamental to modern manufacturing, offering versatility, precision, and efficiency in producing a wide range of parts. This article delves into the intricacies of vertical milling machines, exploring their components, the process of producing parts, and the applications in various industries. By understanding the capabilities and techniques associated with vertical milling machines, manufacturers can optimize their production processes and achieve superior results.
Components of a Vertical Milling Machine
1. Base and Column
The base of a vertical milling machine provides stability and support for the entire structure. It is typically made of cast iron to absorb vibrations and ensure rigidity. The column, which is mounted on the base, extends vertically and supports other components like the spindle and the table.
2. Spindle
The spindle is a critical component that holds and rotates the cutting tool. In a vertical milling machine, the spindle is oriented vertically, allowing for precise vertical movements. The spindle is powered by a motor and can operate at various speeds to accommodate different materials and cutting conditions.
3. Table
The table supports the workpiece and can move in multiple directions (X, Y, and Z axes) to position the workpiece accurately relative to the cutting tool. The table's movement is controlled manually or via CNC (Computer Numerical Control) systems, allowing for precise and repeatable operations.
4. Knee
The knee is a vertically adjustable support that holds the table and the saddle. By raising or lowering the knee, the operator can adjust the table's height relative to the spindle, enabling different depths of cut.
5. Saddle and Ram
The saddle is mounted on the knee and supports the table, allowing it to move longitudinally (Y-axis). The ram, which is mounted on the column, holds the spindle and can move back and forth (X-axis), providing additional flexibility in positioning the cutting tool.
6. Control System
Modern vertical milling machines are equipped with CNC systems that automate the movements of the table, spindle, and other components. The CNC system uses a computer program to control the machine's operations, ensuring precision and repeatability.
Producing Parts with a Vertical Milling Machine
1. Setting Up the Machine
a. Preparing the Workpiece
The first step in producing parts with a vertical milling machine is preparing the workpiece. This involves selecting the appropriate material, cutting it to the desired size, and securing it on the machine table using clamps or a vice.
b. Selecting and Installing the Cutting Tool
Choosing the right cutting tool is crucial for achieving the desired results. Factors to consider include the material of the workpiece, the type of cut, and the required surface finish. Common cutting tools used in vertical milling include end mills, face mills, and drills. Once selected, the cutting tool is installed in the spindle.
2. Programming the CNC System
For CNC vertical milling machines, the next step is programming the machine. This involves creating a computer program (G-code) that specifies the toolpath, cutting speeds, feed rates, and other parameters. The program is then loaded into the CNC system, which controls the machine's movements.
3. Performing the Machining Operations
a. Facing
Facing is often the first operation performed on a workpiece. It involves using a face mill to create a flat surface on the top of the workpiece, ensuring it is level and ready for subsequent operations.
b. Drilling
Drilling is used to create holes in the workpiece. The cutting tool (a drill bit) is aligned with the desired hole location and then fed vertically into the workpiece to create the hole. CNC systems can perform multiple drilling operations in a single setup, improving efficiency.
c. Milling
Milling operations involve removing material from the workpiece to create features like slots, pockets, and contours. There are two primary types of milling:
· Conventional Milling: The cutting tool rotates against the direction of the workpiece's movement. This method provides better surface finish but can generate higher cutting forces.
· Climb Milling: The cutting tool rotates in the same direction as the workpiece's movement. This method reduces cutting forces and is more efficient but can cause tool deflection if not properly controlled.
d. Slotting and Pocketing
Slotting and pocketing are milling operations used to create narrow channels (slots) or recessed areas (pockets) in the workpiece. These operations require precise control of the cutting tool's path to ensure accuracy and consistency.
e. Contour Milling
Contour milling involves following a predefined path to create complex shapes and curves on the workpiece. This operation is common in producing parts with intricate geometries, such as mold components and aerospace parts.
4. Finishing Operations
After the primary machining operations, finishing operations are performed to achieve the desired surface finish and dimensional accuracy. These may include:
· Deburring: Removing sharp edges and burrs from the workpiece.
· Surface Grinding: Achieving a high-quality surface finish by grinding the workpiece.
· Polishing: Enhancing the surface finish and appearance of the workpiece.
5. Inspection and Quality Control
The final step in producing parts with a vertical milling machine is inspecting the finished workpiece to ensure it meets the required specifications. This involves using measuring tools like calipers, micrometers, and coordinate measuring machines (CMM) to verify dimensions, tolerances, and surface finish.
Applications of Vertical Milling Machines
1. Aerospace Industry
Vertical milling machines are extensively used in the aerospace industry to produce complex components with tight tolerances. Examples include turbine blades, structural parts, and engine components. The precision and versatility of vertical milling make it ideal for machining aerospace-grade materials like titanium and aluminum.
2. Automotive Industry
In the automotive industry, vertical milling machines are used to manufacture engine parts, transmission components, and chassis parts. The ability to produce high-precision parts quickly and efficiently makes vertical milling an essential process in automotive manufacturing.
3. Medical Device Manufacturing
Medical device manufacturers rely on vertical milling machines to produce components for surgical instruments, implants, and diagnostic equipment. The high precision and surface finish achievable with vertical milling are critical for ensuring the quality and performance of medical devices.
4. Tool and Die Making
Vertical milling machines play a crucial role in the tool and die industry, where they are used to produce molds, dies, and tooling components. The ability to create complex geometries and tight tolerances is essential for ensuring the accuracy and functionality of the final products.
5. Prototyping and Custom Manufacturing
Vertical milling machines are widely used in prototyping and custom manufacturing, where flexibility and precision are paramount. The ability to quickly produce one-off parts and prototypes allows manufacturers to test designs and make adjustments before full-scale production.
Advantages of Vertical Milling Machines
1. Versatility
Vertical milling machines can perform a wide range of machining operations, making them suitable for various applications across different industries.
2. Precision and Accuracy
The ability to achieve tight tolerances and high surface finishes makes vertical milling machines ideal for producing precision components.
3. Ease of Operation
Vertical milling machines are generally easier to set up and operate compared to horizontal milling machines. The vertical orientation of the spindle provides better visibility and access to the workpiece.
4. Cost-Effectiveness
Vertical milling machines are often more affordable than their horizontal counterparts, making them a cost-effective option for many manufacturing operations.
Conclusion
Vertical milling machines are essential tools in modern manufacturing, offering versatility, precision, and efficiency in producing a wide range of parts. By understanding the components, processes, and applications of vertical milling machines, manufacturers can optimize their production operations and achieve superior results.
