The biggest hurdle for high-quality Industrial 3D Printing is the surface finish. Raw 3D printed parts—especially those from FDM, SLS, or MJF—are rough, porous, and have visible layer lines. For B2B applications in medical or consumer electronics, these surfaces are unacceptable. The solution is Industrial 3D Print Post-Processing, a set of advanced techniques engineered to achieve the sealed, smooth, and aesthetic quality of an injection-molded part.
This process is not about simple sanding; it is about controlled surface engineering. Success requires matching the right finishing technique (chemical, mechanical, or coating) to the material to enhance not only aesthetics but also critical functions like fluid sealing, wear resistance, and dimensional stability. This guide explores the professional strategies that elevate prototypes to final product status.
content:
Functional Goals: Why Surface Smoothing is More Than Just Aesthetics
Chemical Sealing: Achieving Injection Grade Finish on Nylon (SLS/MJF)
Mechanical Finishing: Tumble Polishing for Support Removal and Uniformity
Color and Compliance: Dyeing and Coating for Final Product Status
Dimensional Risk: Managing Tolerance Drift During Post-Processing
Functional Goals: Why Surface Smoothing is More Than Just Aesthetics
For industrial components, a rough surface is a liability. Post-processing is mandatory to address three functional weaknesses inherent in all raw 3D prints:

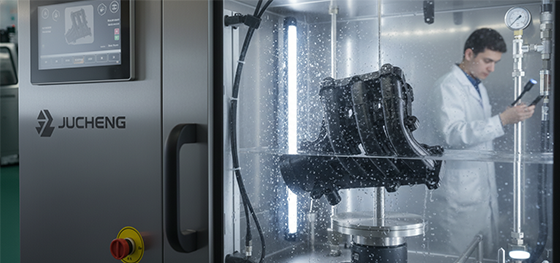

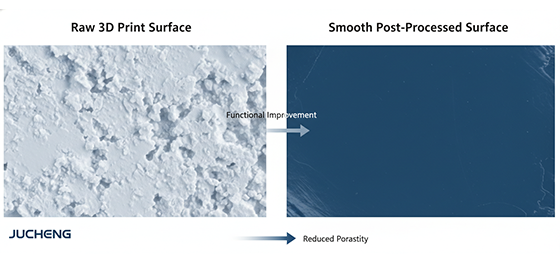

Fluid Sealing and Air Tightness: Raw SLS and MJF parts have micro-porosity (tiny internal voids), making them unsuitable for fluid or air containment. Smoothing closes these pores, making the parts watertight and airtight for functional testing.
Wear and Friction: A rough surface increases friction and wear in moving assemblies (like hinges or sliding mechanisms). Smoothing creates a low-friction surface, improving the durability and mechanical efficiency of the assembly.
Hygiene and Cleanliness: Microscopic valleys and layer lines on a rough surface are breeding grounds for bacteria and hard to clean. Smoothing creates a sanitary surface, essential for medical device housings and food-contact components.
Chemical Sealing: Achieving Injection Grade Finish on Nylon (SLS/MJF)
Chemical vapor smoothing is the most efficient and cost-effective method for achieving a uniform, sealed surface on industrial Nylon prints:

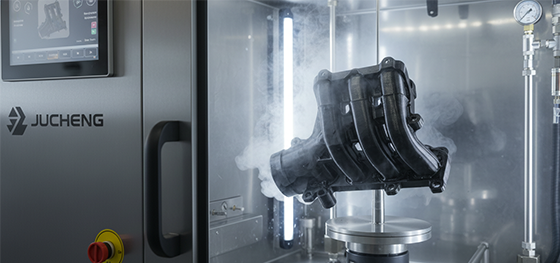

The Process: The part is placed in a closed chamber and exposed to a solvent vapor (e.g., for Nylon 12). The vapor lightly dissolves the outermost layer of the plastic, causing the surface tension to naturally pull the material smooth, closing all pores and eliminating micro-roughness.
Material Compatibility: This process is best suited for MJF and SLS Nylon (PA12) and is the primary way to give these functional parts the aesthetic quality of an Injection Molded part. It is not typically used for highly porous FDM parts or SLA resins.
Internal Smoothing: Crucially, the vapor penetrates internal channels and complex geometries that cannot be reached by sanding or mechanical tools, smoothing the entire part uniformly.
Mechanical Finishing: Tumble Polishing for Support Removal and Uniformity
Mechanical finishing methods are used to quickly remove large amounts of material, eliminate support structures, and uniformly round sharp edges:
Vibratory Tumbling: Parts are placed in a vibratory tub with abrasive media (ceramic, plastic, or resin). The constant tumbling action uniformly polishes the entire surface, ideal for deburring and removing the texture of powder-bed parts.
Media Blasting: Sandblasting or bead blasting is used to achieve a precise, low-glare matte texture. This is often the final finish for aesthetic parts or a required pretreatment to ensure paint adherence.

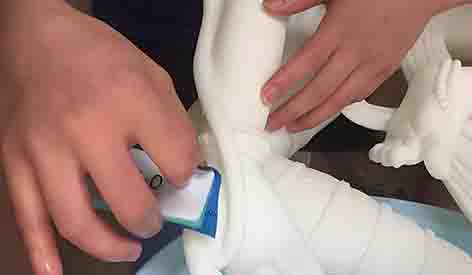

Hand Sanding/Polishing: Reserved for complex, high-value prototypes and optical parts. This labor-intensive process is necessary when vapor smoothing or tumbling would compromise critical tight-tolerance features.
Color and Compliance: Dyeing and Coating for Final Product Status
The final step in post-processing is applying the aesthetic and protective finishing required for the product’s intended environment:

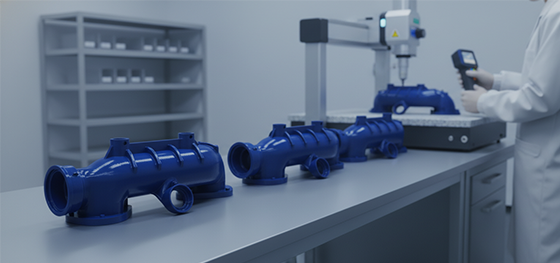

Dyeing: For SLS and MJF Nylon parts, a hot-bath dyeing process is used to achieve permanent, uniform coloring (like deep black or uniform grey). This is much more durable than simple surface painting.
Painting and Coating: Professional spray painting or clear coating is used when specific automotive colors or high-UV resistance is required. This often requires a pre-paint sanding or blasting to ensure proper adhesion.
Compliance Finishing: Medical components may require specialized biocompatible clear coatings to seal the surface and ensure the material meets ISO 10993 standards for bodily contact.
Dimensional Risk: Managing Tolerance Drift During Post-Processing
Every post-processing step—chemical, thermal, or mechanical—removes or adds material, risking the violation of critical dimensional tolerances:
Vapor Smoothing Risk: Chemical smoothing is difficult to control precisely and can slightly round sharp edges and subtly change dimensions, making it unsuitable for features with tight tolerances (e.g., holes for press-fit bearings).
Compensation Strategy: Expert manufacturers will oversize critical features in the initial 3D print by a known offset (the "smoothing allowance") to compensate for material removal during smoothing or tumbling.
Post-Processing Inspection: Critical features must be measured using high-precision CMM or optical scanning *after* finishing to ensure that the process did not compromise dimensional integrity.
Surface smoothing is a critical engineering step that transforms raw 3D prints into functional, production-ready components. Jucheng Precision Technology offers end-to-end Industrial 3D Print Post-Processing, from chemical vapor smoothing and precision dyeing to final quality inspection, ensuring your parts meet both aesthetic and functional demands.
Secure injection-molded quality from your 3D printed parts. Contact us today to discuss the optimal finishing protocol for your SLS, MJF, and SLA prototypes.
