Precision Metal Hole Punching: Tools and Techniques

Metal hole punching is a fundamental process in metalworking, essential for creating clean, precise holes in sheet metal and other materials. Whether for industrial applications or DIY projects, using the right tools—such as a metal hole punch or puncher—ensures accuracy and efficiency. This article explores the various tools and techniques involved, including heavy-duty options, square hole punches, and essential accessories like pliers and support stands.

content:

Essential Tools for Metal Hole Punching

Choosing the Right Punch Set

Advanced Punching Techniques

Essential Tools for Metal Hole Punching

1. Metal Hole Punch and Puncher

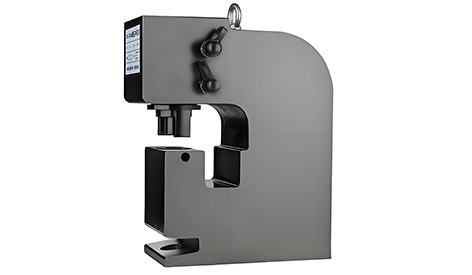

A metal hole punch is a specialized tool designed to create holes in thin to medium-gauge metals. Manual punchers are ideal for small-scale projects, while hydraulic or electric models suit high-volume tasks. The key is selecting a punch with the right diameter and tonnage for the material thickness.

For repetitive tasks, a heavy-duty punch ensures durability and consistent performance. Look for models with hardened steel components to withstand prolonged use without dulling.

2. Sheet Metal Considerations

Working with sheet metal requires understanding its gauge and hardness. Thinner sheets (e.g., 20-24 gauge) can be punched manually, while thicker materials may require a heavy-duty hydraulic punch. Always secure the metal properly to prevent deformation during punching.

3. Square Hole Punches

While round holes are common, square hole punches are necessary for specific applications like electrical enclosures or ventilation panels. These punches require precise alignment and often work best with a support fixture to maintain accuracy.

4. Support and Alignment Tools

A sturdy support system, such as a bench-mounted punch press, ensures stability and reduces errors. For handheld punching, a set of alignment guides or clamps helps maintain hole consistency.

5. Pliers for Finishing

After punching, burrs or sharp edges may remain. A pair of high-quality pliers—such as deburring or needle-nose pliers—helps clean up the holes for a professional finish.

Choosing the Right Punch Set

Investing in a versatile set of punches allows flexibility across different projects. A good tool set includes multiple punch sizes, a die, and a striker for manual operation. For industrial use, modular punch-and-die systems enable quick changes between hole sizes.

Advanced Punching Techniques

• Punching Thick Metal: Use a heavy-duty hydraulic punch for metals over 1/4" thick.

• Precision Alignment: Laser guides or jigs improve hole placement accuracy.

• Maintenance: Regularly lubricate punches to extend their lifespan.

Mastering metal hole punching involves selecting the right tool, whether it's a manual puncher, a heavy-duty hydraulic system, or a specialized square punch. Proper support, a well-organized set, and finishing tools like pliers ensure professional results. By understanding sheet metal properties and using high-quality equipment, you can achieve precise, clean holes for any application.
