Meet the Micrometer: Your Super-Power Measuring Tool
Views: 2 Author: Site Editor Publish Time: 2025-08-27 Origin: Site
Imagine you need to measure something super, super tiny—like the thickness of a single hair! A normal ruler just wouldn't work. The lines are too far apart, and you couldn't get a precise number.
That's where you need a special tool called a micrometer. Think of it as a detective's magnifying glass for measuring. It doesn't make things look bigger, but it can feel sizes with incredible precision.
It's an amazing tool used by mechanics, scientists, and engineers. Let's break down how it works and explore all its cool parts!
A micrometer is a special tool that mechanics and scientists use to measure the outside, inside, or depth of something very carefully. Think of it like a powerful robot hand that can feel sizes way better than your fingers can. It’s famous for being one of the most accurate measuring tools ever made!

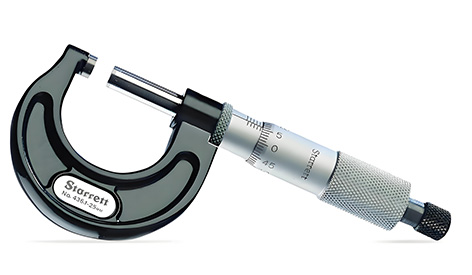

The Main Pieces: Micrometer Parts
Every standard micrometer has the same basic parts. Once you learn them, you’ll see how the tool works like a simple machine:
The Frame: This is the big, C-shaped body of the micrometer. It looks like a funny-looking horseshoe. It’s the part you hold.
The Anvil: This is one of the two “hands” that does the measuring. It’s a fixed, little metal post that doesn’t move. The object you’re measuring rests against it.
The Spindle: This is the other “hand.” It’s the part that moves when you turn a knob. It moves toward the anvil to gently squeeze the object being measured.
The Sleeve: This is the long tube with little lines printed on it. It looks like a ruler was wrapped around it. These lines are the main numbers for your measurement.
The Thimble: This is the knob you turn to move the spindle. It also has lines on it. The lines on the sleeve and the thimble work together to tell you the exact size.
The Ratchet: This is a cool safety feature! It’s a little knob on the end of the thimble. When you squeeze an object too tight, it starts to click or slip. This tells you to stop turning so you don’t crush the object or break the tool!

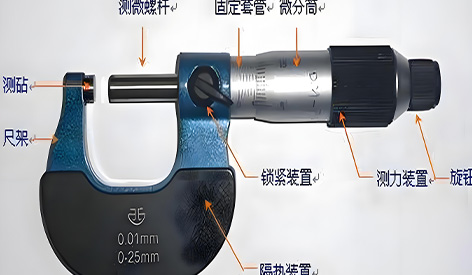

A Picture is Worth a Thousand Words: Micrometer Parts Labeled
The best way to learn is to see a picture! If you look at a diagram with micrometer parts labeled, you can easily match the names—like anvil, spindle, sleeve—to the actual parts on the tool. It’s like labeling the parts of a robot in a drawing.

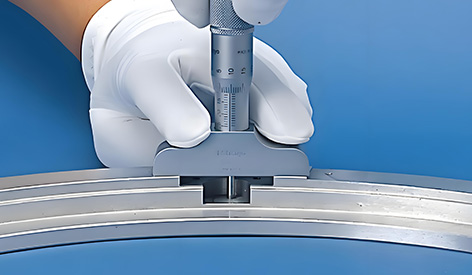

Reaching Deep Down: Depth Micrometer Parts
What if you wanted to measure how deep a hole is, like a Lego block’s hole? You would use a depth micrometer. It looks different. It has a flat base that sits on top of the surface. Then, a thin metal rod (called a probe) slides down into the hole. The main depth micrometer parts are the flat base, the rod, and the same cool sleeve and thimble system to get the measurement.
The Digital Super-Tool: Digital Micrometer Parts
Newer micrometers are digital, just like your favorite video game! A digital micrometer has a small screen that shows the number right away—no need to read all those tiny lines! The main digital micrometer parts are the same anvil and spindle, but inside is a tiny computer that senses the movement and does the math for you. It has a screen and buttons instead of a sleeve with lines.
Measuring the Inside: Inside Micrometer Parts
How do you measure the inside of a ring or a pipe? You need an inside micrometer. It doesn’t have a C-shaped frame. Instead, it has little arms that you stick inside something and then expand until they touch the sides. The inside micrometer parts include these arms and a special head that has the measuring numbers on it.

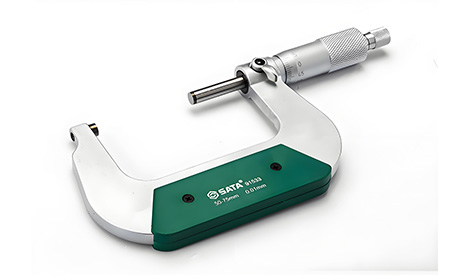

The Classic Tool: Micrometer Caliper Parts
The most common type is often called a micrometer caliper. "Caliper" is just a fancy word for a tool that measures how far apart two sides are. The micrometer caliper parts are exactly the same as the main parts we learned first: the frame, anvil, spindle, sleeve, and thimble.
What Does Each Part Do? Micrometer Parts and Functions
Let’s talk about micrometer parts and functions—that’s a fancy way of saying “what each part does.”
The Frame’s job is to be a strong, sturdy body.
The Anvil’s job is to be one solid, unmoving measuring point.
The Spindle’s job is to be the moving measuring point that does the squeezing.
The Sleeve’s job is to show you the big numbers of your measurement (like the millimeters).
The Thimble’s job is to turn to move the spindle and show you the tiny numbers (like the fractions of a millimeter).
The Ratchets job is to protect the tool by stopping you from squeezing too hard.
The Magic Twist: Micrometer Screw Gauge Parts
The secret to the micrometer’s power is a super precise screw inside. When you turn the thimble, you are turning this screw, which moves the spindle a tiny, tiny amount. This is why it’s sometimes called a micrometer screw gauge. The most important micrometer screw gauge parts are that special screw and the inner threads it twists into.
A List of Everything: Micrometer Parts List
If you were to get a box of spare parts to build your own micrometer, you would need a micrometer parts list. This list would name every single piece, from the big frame all the way down to the tiny screw that holds the ratchet on. It’s like the ingredient list for a recipe to build an awesome tool!
So, there you have it! Micrometers might seem complicated, but they’re just clever tools made of a few simple parts that work together. Whether it’s a digital one, a depth gauge, or a classic model, they all help us measure our world with amazing detail.
