For stainless steel components, true corrosion resistance is not achieved upon delivery; it is guaranteed only after Precision Stainless Steel Passivation. This mandatory chemical process removes "free iron" and other contaminants introduced during machining and fabrication, allowing the metal’s natural protective chromium oxide layer to fully reform.

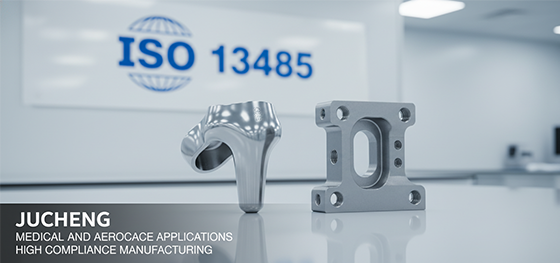

Without this final, controlled step, critical parts are vulnerable to premature rust and structural failure. This guide explores the chemistry and quality control protocols required to ensure that your stainless steel components—used in medical, food, and aerospace applications—meet the highest standards of surface integrity and corrosion proofing.
content:
Corrosion Mechanism: The Critical Role of Chromium Oxide
The Contamination Risk: Free Iron and the Need for Removal
Chemical Protocols: Managing Acid, Time, and Temperature
Dimensional Impact: Why Passivation Preserves Tolerance
Quality Verification: Mandatory Testing for Passivation Effectiveness
Corrosion Mechanism: The Critical Role of Chromium Oxide
Stainless steel is not inherently rust-proof; it is rust-resistant due to a unique chemical defense mechanism: the passive layer. Understanding this mechanism is the key to understanding the need for passivation:
The Passive Layer: Stainless steel contains a minimum of 10.5% chromium. When exposed to oxygen, the chromium atoms react to form an extremely thin (nanometer-thick) layer of chromium oxide (Cr₂O₃) on the surface, which is chemically inert and protects the underlying steel.
Self-Healing: If this layer is scratched or mechanically damaged, the chromium in the steel reacts instantly with air to reform the protective layer, making it self-healing.
The Purpose of Passivation: After high-heat or mechanical processing, the passive layer is compromised or hidden beneath contaminants. Passivation is the process of chemically enhancing the formation of this passive layer.
The Contamination Risk: Free Iron and the Need for Removal

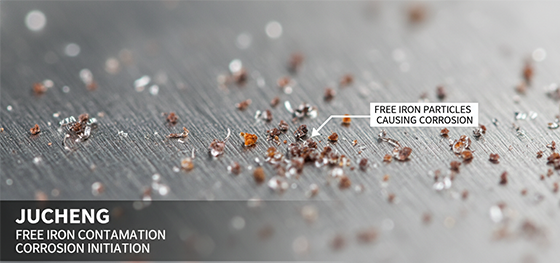

During manufacturing, non-stainless steel iron particles inevitably get embedded into the surface of the component, which prevents the natural passive layer from forming underneath the particle:
Free Iron: This contamination comes from CNC Machining tools (if not properly segregated), steel wool, grinding wheels, or airborne dust. These particles are not part of the stainless steel but are foreign.
The Corrosion Point: When the contaminated part is exposed to moisture, the free iron rusts. This rust then spreads to the stainless steel, initiating corrosion that would not have occurred otherwise.

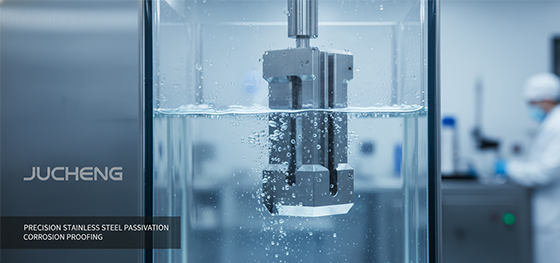

The Chemical Solution: Passivation involves immersing the part in an acid solution that chemically dissolves the surface layer of these iron particles, exposing the underlying chromium and allowing the protective oxide layer to heal.
Chemical Protocols: Managing Acid, Time, and Temperature
Industrial passivation is a highly precise chemical process that must be strictly controlled according to the specific alloy being treated:
Acid Selection: Nitric acid was traditionally used but requires high temperatures and careful handling. Citric acid is the modern, safer, and more environmentally friendly alternative, achieving excellent results at lower temperatures.
Time and Temperature: The immersion time and temperature of the acid bath are critical. Under-treating leaves iron behind. Over-treating can damage the surface finish of the stainless steel, especially for alloys with low corrosion resistance.
Final Rinsing: After the acid bath, the part must be thoroughly rinsed with deionized water and neutralized to ensure no residual acid is left on the surface, which would otherwise lead to immediate corrosive failure.
Dimensional Impact: Why Passivation Preserves Tolerance
A key advantage of passivation over other coatings (like electroplating) is its near-zero impact on the component's dimensions, preserving the tight tolerances achieved by CNC Machining:
Zero Material Added: Passivation is not an additive coating process. It only converts and cleans the surface. Therefore, the part maintains its critical dimensions, making it the only viable solution for parts with tight interference or slip fits.
Dimensional Guarantee: Parts can be machined to their final specification before passivation without compensating for material build-up. This simplifies the CNC Machining process significantly.
Hydrogen Embrittlement: Properly managed passivation does not introduce hydrogen into the steel matrix, unlike certain electroplating processes, making it safe for high-strength steel components where embrittlement could lead to premature failure.
Quality Verification: Mandatory Testing for Passivation Effectiveness
Because the passive layer is invisible, its effectiveness must be verified using objective, standardized tests to ensure compliance with industry requirements:
Water Immersion Test: The most common test involves immersing the part in distilled water and observing it for a specified time (often 24 hours). Any sign of rust or "water staining" indicates the presence of unremoved free iron and failure of the passivation process.

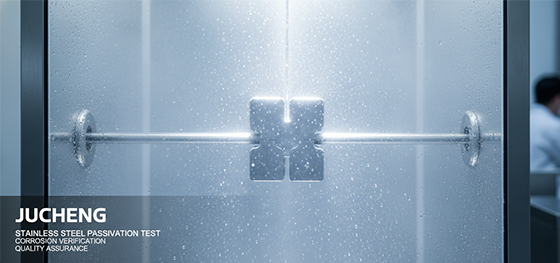

High Humidity Test: For stricter medical or aerospace requirements, parts are placed in a high-humidity chamber for an extended period, simulating long-term storage or high-moisture operational environments.
Copper Sulfate Test: This chemical test is used for certain alloys. A solution of copper sulfate is applied; if free iron is present, it will react and leave a visible copper deposit on the surface, indicating failure.
Precision Stainless Steel Passivation is the ultimate guarantor of long-term corrosion resistance for stainless steel. Jucheng Precision Technology integrates certified chemical processing with high-precision CNC Machining to ensure that every part is free of contamination and maintains full dimensional compliance.
