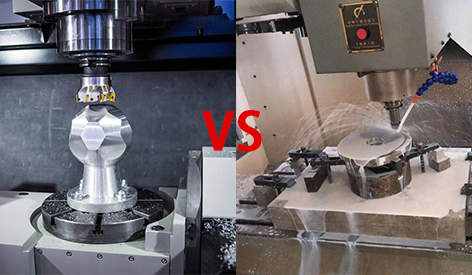

The difference between 5-axis CNC machining & 3-axis machining

5-axis CNC machining and 3-axis machining are both methods used for subtractive manufacturing processes, but they differ in several aspects, including accuracy, equipment, materials, structure, and more. Here's a comparison:

1.Number of Axes:

3-Axis Machining: In 3-axis machining, the cutting tool moves along three orthogonal axes: X, Y, and Z. This means it can cut or shape material from three different directions.

5-Axis CNC Machining: In 5-axis machining, the cutting tool can move along five axes. In addition to the X, Y, and Z axes, it can tilt and rotate around the A and B axes. This extra flexibility allows for more complex and multi-sided machining.

2.Accuracy:

3-Axis Machining: 3-axis machines are generally less accurate when it comes to complex, multi-sided parts because they require repositioning of the workpiece, which introduces the potential for errors.

5-Axis CNC Machining: 5-axis machines are capable of higher accuracy, particularly for intricate and contoured parts, as they can access and machine multiple sides without workpiece repositioning.

3.Equipment:

3-Axis Machining: 3-axis machines are more common and simpler in design. They are often used for basic and less complex parts.

5-Axis CNC Machining: 5-axis machines are more complex and sophisticated. They have additional moving parts and mechanisms to control the rotational axes, making them suitable for more intricate and complex components.

4.Materials:

3-Axis Machining: 3-axis machines can work with a wide range of materials, from metals and plastics to composites and wood.

5-Axis CNC Machining: 5-axis machines are also versatile and can handle the same materials as 3-axis machines. They are particularly useful for challenging materials that require precise machining from various angles.

5.Structure and Workholding:

3-Axis Machining: 3-axis machines typically have a fixed bed with a movable table or vice to hold the workpiece. The workpiece often needs to be repositioned to access different sides.

5-Axis CNC Machining: 5-axis machines often have rotating tables or rotary attachments that can hold the workpiece at various angles. This reduces the need for repositioning and simplifies the setup for multi-sided machining.

6.Complexity and Applications:

3-Axis Machining: 3-axis machining is suitable for relatively simple parts with straightforward geometries.

5-Axis CNC Machining: 5-axis machining is used for complex, highly contoured parts, such as aerospace components, automotive parts, and medical implants, where precise and intricate machining is required.

In summary, the key differences between 5-axis CNC machining and 3-axis machining include the number of axes, accuracy, equipment complexity, material versatility, workholding methods, and the complexity of parts they can handle. 5-axis machining offers greater precision and flexibility, making it suitable for more intricate and complex components.
