What is a Die in Manufacturing? A Comprehensive Guide

In manufacturing, a die is a specialized tool used to cut, shape, or form materials into desired products. Dies are essential in mass production, enabling high precision and repeatability in processes such as stamping, forging, extrusion, and casting. This article explores the different types of dies, their applications, and their role in modern manufacturing, including references to CNC machining in Singapore and the use of die grinders for finishing operations.

content:

Types of Dies in Manufacturing

The Role of CNC Machining in Die Manufacturing

Die Grinders: Essential Tools for Finishing

Types of Dies in Manufacturing

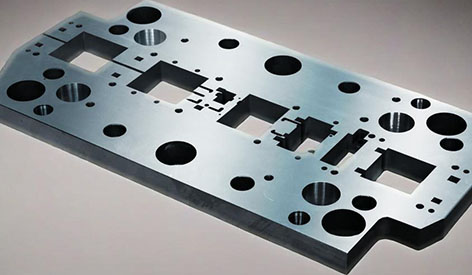

1. Stamping Dies

Stamping dies are used in press machines to cut or form sheet metal into specific shapes. These dies consist of a punch and a die block, where the punch forces the metal into the die cavity, creating the desired part. Stamping dies are commonly used in automotive and aerospace industries for producing body panels, brackets, and other components.

2. Extrusion Dies

Extrusion dies shape materials by forcing them through a die opening, creating long products with a fixed cross-section. This process is widely used for manufacturing plastic tubes, aluminum frames, and PVC pipes. The die design determines the final product’s shape, making precision machining critical.

3. Forging Dies

Forging dies shape metal using compressive forces, often at high temperatures. These dies are used to produce strong, durable parts like gears, crankshafts, and connecting rods. The die cavities must withstand extreme pressure, requiring high-grade tool steel or tungsten carbide materials.

4. Injection Molding Dies

Injection molding dies (or molds) are used in plastic manufacturing to produce intricate parts with high accuracy. Molten plastic is injected into the die cavity, where it cools and solidifies into the final product. This process is essential for making consumer goods, medical devices, and electronic housings.

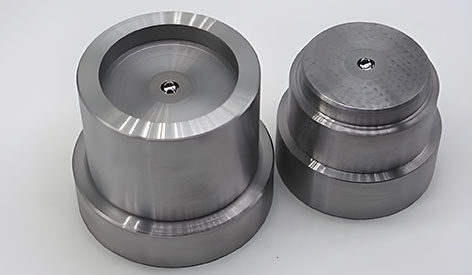

5. Wire Drawing Dies

Wire drawing dies reduce the diameter of wire by pulling it through a tapered die opening. These dies are typically made from diamond or carbide for wear resistance. The process is used in electrical wiring, cables, and fencing production.

The Role of CNC Machining in Die Manufacturing

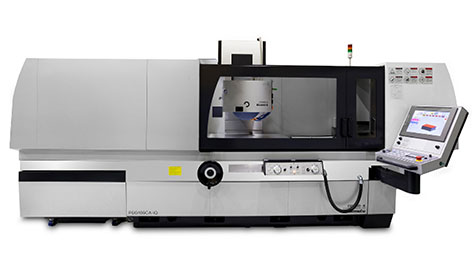

Precision is critical in die manufacturing, and CNC machining plays a vital role in producing high-quality dies. CNC machining in Singapore is particularly renowned for its advanced capabilities, offering high-precision milling, turning, and EDM (Electrical Discharge Machining) services. Singapore’s manufacturing sector leverages state-of-the-art CNC technology to produce complex dies with tight tolerances, ensuring efficiency and durability in mass production.

CNC machining allows for:

• High Accuracy: Computer-controlled machines ensure dies meet exact specifications.

• Complex Geometries: Intricate die designs can be machined with minimal manual intervention.

• Faster Production: Automated processes reduce lead times compared to traditional methods.

Die Grinders: Essential Tools for Finishing

Once a die is manufactured, finishing operations are often necessary to remove burrs, smooth edges, or refine surfaces. Die grinders are handheld power tools used for precision grinding, sanding, and polishing. These tools are equipped with small rotary attachments, such as carbide burs or abrasive stones, making them ideal for detailed work on dies and molds.

Key applications of die grinders include:

• Deburring: Removing sharp edges from stamped or machined parts.

• Surface Finishing: Smoothing rough surfaces before final assembly.

• Detail Work: Refining intricate die cavities for better product quality






Dies are indispensable tools in manufacturing, enabling the mass production of precise and complex parts. From stamping and forging to extrusion and injection molding, dies facilitate high-efficiency processes across industries. Advanced technologies like CNC machining in Singapore ensure dies are manufactured to the highest standards, while die grinders provide the finishing touches needed for optimal performance.

As manufacturing evolves, the demand for high-precision dies will continue to grow, driving innovation in materials, machining techniques, and tooling solutions. Understanding the role of dies helps manufacturers optimize production, reduce costs, and improve product quality in competitive markets.
