How to Use a Milling Machine: A Comprehensive Guide

Milling machines are versatile tools used in metalworking and woodworking to shape and cut materials with precision. Whether you're a beginner or an experienced machinist, understanding how to operate a milling machine properly is essential for achieving accurate results. This guide will walk you through the basics of milling machine operation, including safety precautions, setup, and common milling techniques. We’ll also briefly touch on the role of CNC machinists in Savannah, GA, and the advantages of using a horizontal milling machine for specific applications.

Understanding the Milling Machine
A milling machine removes material from a workpiece by rotating a cutting tool (called a milling cutter) and moving it along multiple axes. The two main types of milling machines are:

  1. Vertical Milling Machine – The spindle is oriented vertically, and the cutting tool moves up and down. This is the most common type for general-purpose milling.
  2. Horizontal Milling Machine – The spindle is oriented horizontally, making it ideal for heavy-duty cutting and producing grooves or slots.

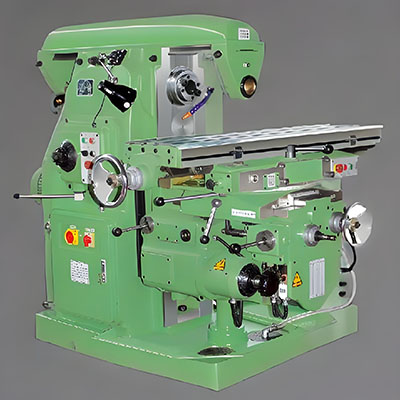

horizontal milling machine
Each type has its advantages, and choosing the right one depends on the project requirements.

Safety Precautions
Before operating a milling machine, follow these safety guidelines:

  • Wear Proper PPE – Safety glasses, hearing protection, and snug-fitting clothing are a must.
  • Secure the Workpiece – Use clamps or a vise to prevent movement during milling.
  • Check Tool Sharpness – Dull tools can cause poor cuts and increase the risk of accidents.
  • Avoid Loose Items – Remove jewelry, gloves, or anything that could get caught in the machine.
  • Follow Manufacturer Instructions – Always refer to the machine’s manual for specific safety guidelines.

Setting Up the Milling Machine

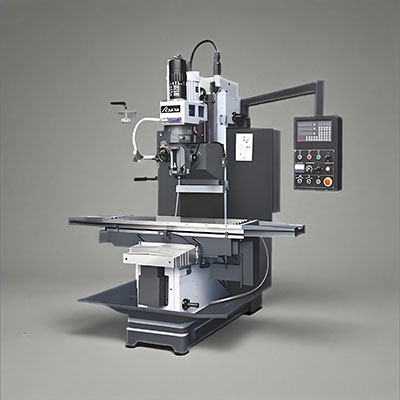

Milling Machine
Step 1: Select the Right Cutting Tool
Choose a milling cutter based on the material and desired cut. Common types include end mills, face mills, and fly cutters.

Step 2: Secure the Workpiece
Place the material in a milling vise or clamp it to the machine table. Ensure it is firmly held to prevent shifting.

Step 3: Adjust Speed and Feed Rates
The spindle speed (RPM) and feed rate depend on the material and cutter type. Consult machining charts for optimal settings.

Step 4: Align the Workpiece
Use an edge finder or dial indicator to position the workpiece accurately relative to the cutter.

Basic Milling Operations
1. Face Milling
This operation creates a flat surface by moving the cutter perpendicular to the workpiece.

2. End Milling
Used for cutting slots, contours, and pockets, an end mill removes material along its sides and bottom.

3. Drilling
Milling machines can also drill precise holes using drill bits or specialized milling cutters.

4. Slot Milling
A horizontal milling machine excels at cutting deep slots and grooves due to its side-mounted cutter orientation.

Advanced Techniques
CNC Milling
Computer Numerical Control (CNC) milling machines automate the process for high precision. Skilled CNC machinists in Savannah, GA, and other industrial hubs, program these machines to produce complex parts for aerospace, automotive, and manufacturing industries.

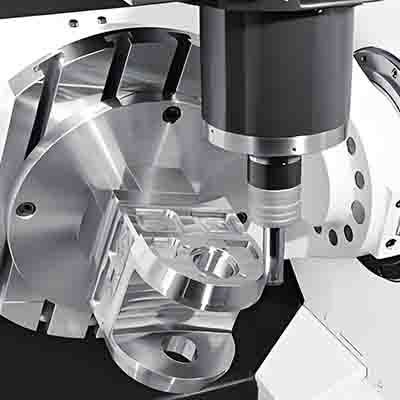

cnc加工2
Using a Horizontal Milling Machine
A horizontal milling machine is preferred for heavy material removal and large-scale production. Its design allows for better chip evacuation and stability when machining large workpieces.

Maintenance Tips
  • Clean the Machine Regularly – Remove metal chips and debris to prevent buildup.
  • Lubricate Moving Parts – Follow the manufacturer’s lubrication schedule.
  • Inspect Cutting Tools – Replace worn-out tools to maintain precision.

Mastering the milling machine requires practice, patience, and adherence to safety protocols. Whether you're using a manual vertical mill or a CNC-controlled horizontal milling machine, understanding the fundamentals will help you achieve professional results. For industrial-grade machining, businesses often rely on expert CNC machinists in Savannah, GA, who specialize in precision manufacturing. By following this guide, you’ll be well on your way to becoming proficient in milling operations.
