What is CNC Plasma Cutting Machine: Precision and Efficiency

CNC plasma cutting machine is a high-precision tool used in metal fabrication to cut through electrically conductive materials with speed and accuracy. Combining computer numerical control (CNC) technology with plasma cutting, this machine delivers clean, intricate cuts in steel, aluminum, brass, and other metals. Industries ranging from automotive to construction rely on CNC plasma cutting for its efficiency, repeatability, and cost-effectiveness.

In this article, we’ll explore how CNC plasma cutting works, its key components, advantages, and applications. We’ll also briefly touch on how businesses in regions like Perth benefit from advanced CNC machining Perth services for high-quality metal fabrication.

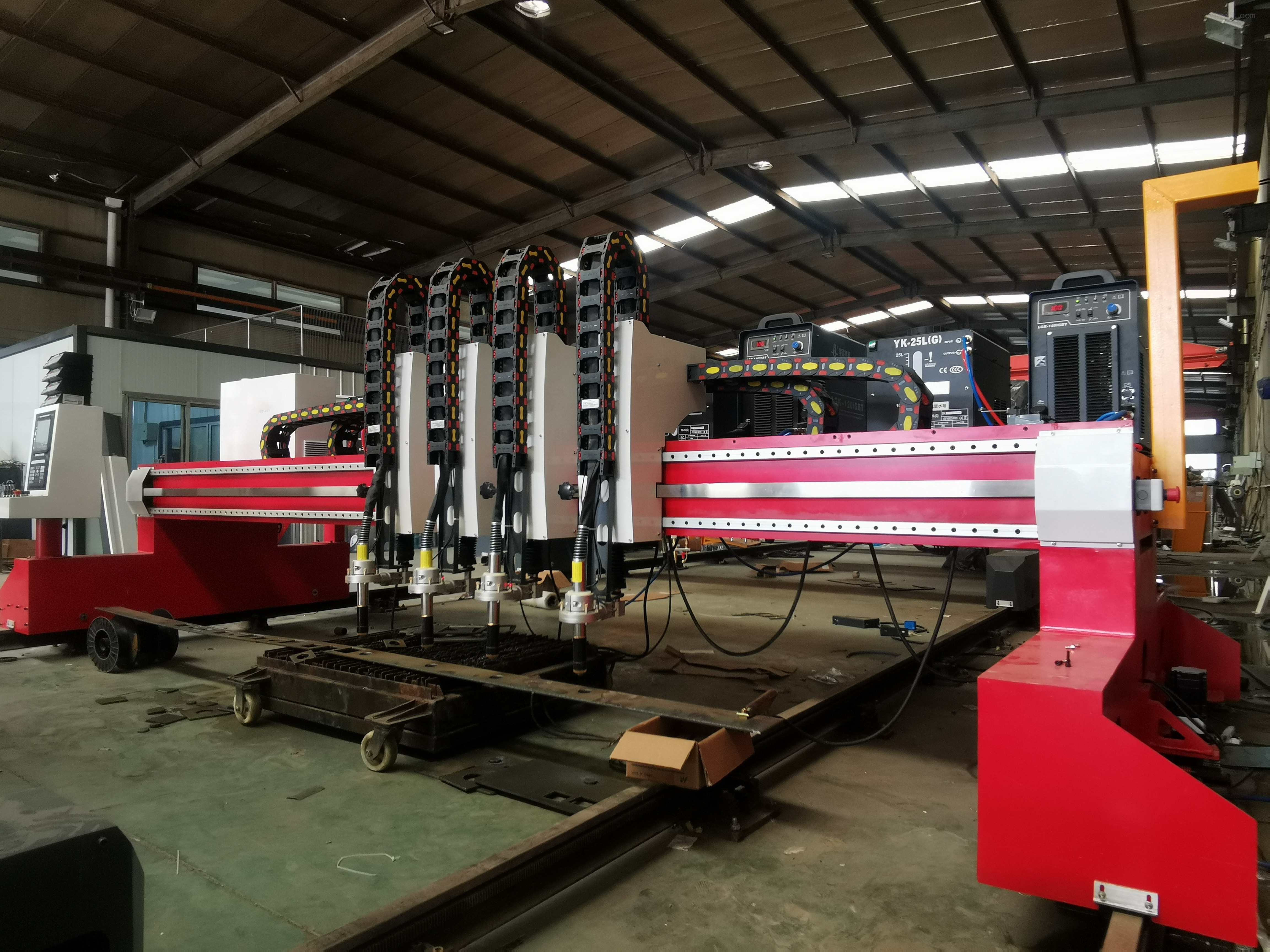

What is CNC Plasma Cutting Machine: Precision and Efficiency

How Does a CNC Plasma Cutting Machine Work?
Plasma cutting involves using a high-velocity jet of ionized gas (plasma) to melt and sever metal. When combined with CNC automation, the process becomes even more precise. Here’s a step-by-step breakdown:

  1. Design Input – A CAD (Computer-Aided Design) file is created, which the CNC system translates into cutting instructions.
  2. Plasma Generation – The machine’s power supply sends an electric arc through a gas (often compressed air, nitrogen, or argon), ionizing it into plasma.
  3. Cutting Process – The plasma torch directs this superheated gas (reaching up to 30,000°F) onto the metal, melting it while a high-speed gas stream blows away the molten material.
  4. CNC Control – The CNC system precisely moves the torch along the programmed path, ensuring accurate cuts.

Key Components of a CNC Plasma Cutting Machine
  1. CNC Controller – The brain of the machine, interpreting design files and coordinating torch movement.
  2. Plasma Power Supply – Converts electrical energy into the high-voltage arc needed for plasma generation.
  3. Plasma Torch – The cutting tool that directs the plasma jet onto the workpiece.
  4. Gas Delivery System – Supplies and regulates the cutting gas.
  5. Cutting Table – A stable surface that holds the metal workpiece, often equipped with a water tray to reduce heat and fumes.
  6. Drive System – Motors and rails that move the torch with precision.

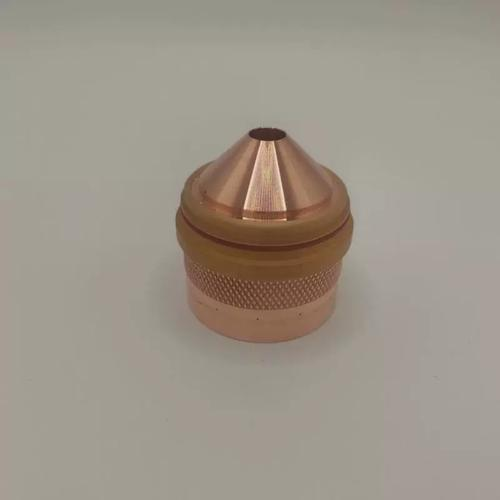

Key Components of a CNC Plasma Cutting Machine

Advantages of CNC Plasma Cutting
1. High Precision and Repeatability
CNC automation ensures consistent, accurate cuts, even for complex shapes. Once programmed, the machine can reproduce identical parts with minimal deviation.
2. Fast Cutting Speeds
Plasma cutting is significantly faster than traditional methods like oxy-fuel cutting, especially for thin to medium-thickness metals.
3. Versatility
It can cut various conductive metals, including stainless steel, copper, and titanium, making it ideal for diverse industrial applications.
4. Cost-Effectiveness
Lower operational costs compared to laser cutting (for thicker materials) and reduced material waste contribute to higher efficiency.
5. Minimal Post-Processing
The clean cuts produced often require little to no additional finishing, saving time and labor costs.

Applications of CNC Plasma Cutting
CNC plasma cutting is widely used in industries such as:

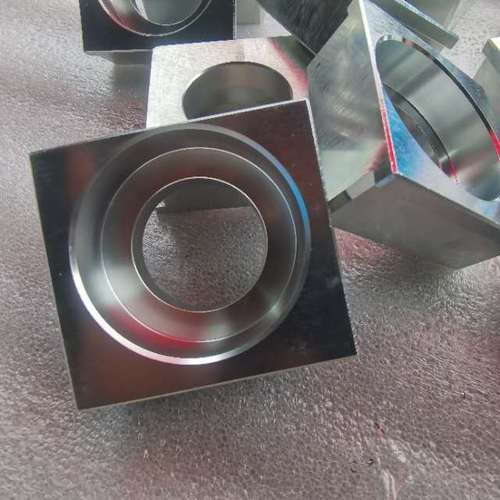

Applications of CNC Plasma Cutting

  • Automotive – Fabricating chassis parts, exhaust systems, and brackets.
  • Construction – Cutting structural steel beams, panels, and rebar.
  • Shipbuilding – Creating hull components and metal fittings.
  • Art and Decor – Crafting intricate metal sculptures and signage.
  • Industrial Machinery – Producing gears, frames, and enclosures.

For businesses in Perth, accessing reliable CNC machining Perth services ensures high-quality plasma-cut components for local manufacturing and engineering projects.

Choosing the Right CNC Plasma Cutting Machine
When selecting a CNC plasma cutter, consider:

  • Material Thickness – Different systems handle varying metal thicknesses (e.g., 0.5mm to 50mm).
  • Cutting Speed – Higher amperage machines cut faster but may cost more.
  • Software Compatibility – Ensure the CNC system supports industry-standard CAD/CAM software.
  • Workspace Size – Choose a machine with a cutting bed that fits your production needs.

CNC plasma cutting machines revolutionize metal fabrication by delivering speed, precision, and versatility. Whether used in large-scale industrial production or custom metalwork, these systems enhance efficiency while reducing costs. For businesses in Perth, partnering with expert CNC machining Perth providers ensures access to top-tier plasma cutting services for superior fabrication results.

As technology advances, CNC plasma cutting will continue to evolve, offering even greater accuracy and automation for the metalworking industry. Investing in the right equipment—or leveraging professional machining services—can significantly boost productivity and product quality.
