How Do You Paint Stainless Steel: A Professional Guide

Painting stainless steel presents unique challenges due to its non-porous, corrosion-resistant surface. Unlike ordinary steel, stainless steel contains chromium, which forms a passive oxide layer that protects against rust but also resists paint adhesion. However, with the right preparation and techniques, you can achieve a durable, high-quality finish. This guide covers the essential steps, from surface preparation to paint selection, ensuring long-lasting results for industrial, automotive, or decorative applications.

Why Stainless Steel Requires Special Preparation
Stainless steel is prized for its strength, durability, and resistance to corrosion, making it ideal for harsh environments. However, these same properties make it difficult for paint to bond effectively. Without proper treatment, paint may peel, chip, or flake over time. The key to success lies in thorough surface preparation, selecting the right primer, and using compatible paint formulations.

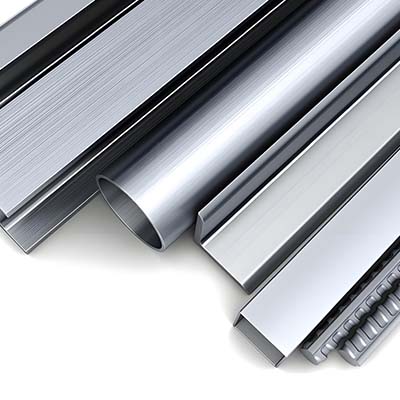

410不锈钢
Step 1: Surface Cleaning
Before painting, the stainless steel must be free of contaminants such as oil, grease, dust, and oxidation residues. Follow these steps:

  • Degrease – Use a solvent like acetone or isopropyl alcohol to remove oils.
  • Mechanical Abrasion – Lightly sand the surface with 180-220 grit sandpaper or use a Scotch-Brite pad to create a rough texture for better adhesion.
  • Chemical Etching – Apply a phosphoric acid-based cleaner to etch the surface slightly, improving paint grip.

For stainless steel CNC machined parts, ensure all machining oils are thoroughly removed, as leftover residues can interfere with adhesion.

Step 2: Applying a Primer
A high-quality primer designed for metal surfaces is crucial. Look for:

  • Self-etching primers – These contain acids that chemically bond to stainless steel.
  • Epoxy or urethane-based primers – Provide excellent durability for industrial applications.

Spray or brush the primer in thin, even coats, allowing proper drying time between layers.

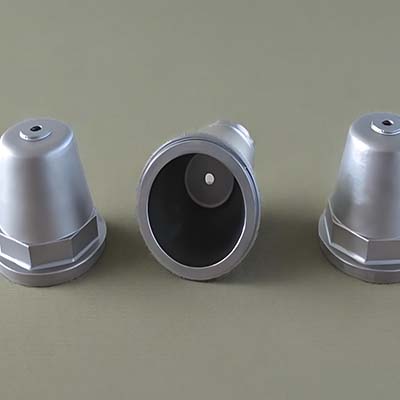

Stainless steel painting
Step 3: Choosing the Right Paint
Not all paints adhere well to stainless steel. The best options include:

  • Acrylic enamel – Good for indoor applications.
  • Polyurethane paint – Offers superior UV and chemical resistance.
  • Epoxy coatings – Ideal for high-wear industrial environments.

For 440 stainless steel, a high-carbon martensitic grade often used in knives and tools, an epoxy or ceramic-based paint provides extra protection against wear and corrosion.

Step 4: Proper Application Techniques
  • Spray painting – Provides the most even finish; use HVLP (High Volume Low Pressure) sprayers for best results.
  • Brush or roller – Suitable for larger surfaces but may leave streaks if not applied carefully.
  • Powder coating – An alternative for industrial applications, offering extreme durability.

Allow each coat to dry fully before applying the next. Thin, multiple coats are better than one thick layer to prevent runs and uneven coverage.

Step 5: Curing and Sealing
For maximum durability, heat-curing (baking) the paint can enhance adhesion and hardness. If heat isn’t an option, allow the paint to air-cure for at least 24-48 hours before exposing it to moisture or heavy use. A clear topcoat can add extra protection against scratches and UV damage.

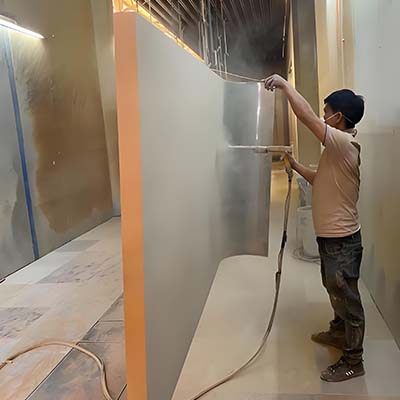

Painted stainless steel drying
Common Mistakes to Avoid
  • Skipping surface prep – Poor cleaning or sanding leads to adhesion failure.
  • Using incompatible paint – Always check that the paint is formulated for metal surfaces.
  • Rushing the process – Inadequate drying time between coats weakens the finish.


Painting stainless steel requires careful preparation, the right materials, and proper application techniques. Whether you're working with stainless steel CNC components or 440 stainless steel tools, following these steps ensures a professional, long-lasting finish. By selecting the appropriate primer and paint, and allowing sufficient curing time, you can achieve both aesthetic appeal and functional durability for any project.
