How does China vacuum casting machine work?


Vacuum casting is a versatile and precise manufacturing technique widely used in various industries to create high-quality parts and prototypes. At Jucheng Precision, with over 13 years of experience, a state-of-the-art production facility spanning over 8,000 square meters, and a team of 190+ skilled technicians, we specialize in delivering unparalleled expertise in vacuum casting. This article delves into the vacuum casting process, its advantages, and the workings of vacuum casting machines, highlighting the differences between vacuum and pressure casting and other related techniques.

Understanding the Vacuum Casting Process

The vacuum casting process is a method of producing parts by pouring molten material into a mold under vacuum conditions. This process is typically used for producing prototypes and low-volume production runs of plastic, rubber, and metal parts. The steps in the vacuum casting process include:

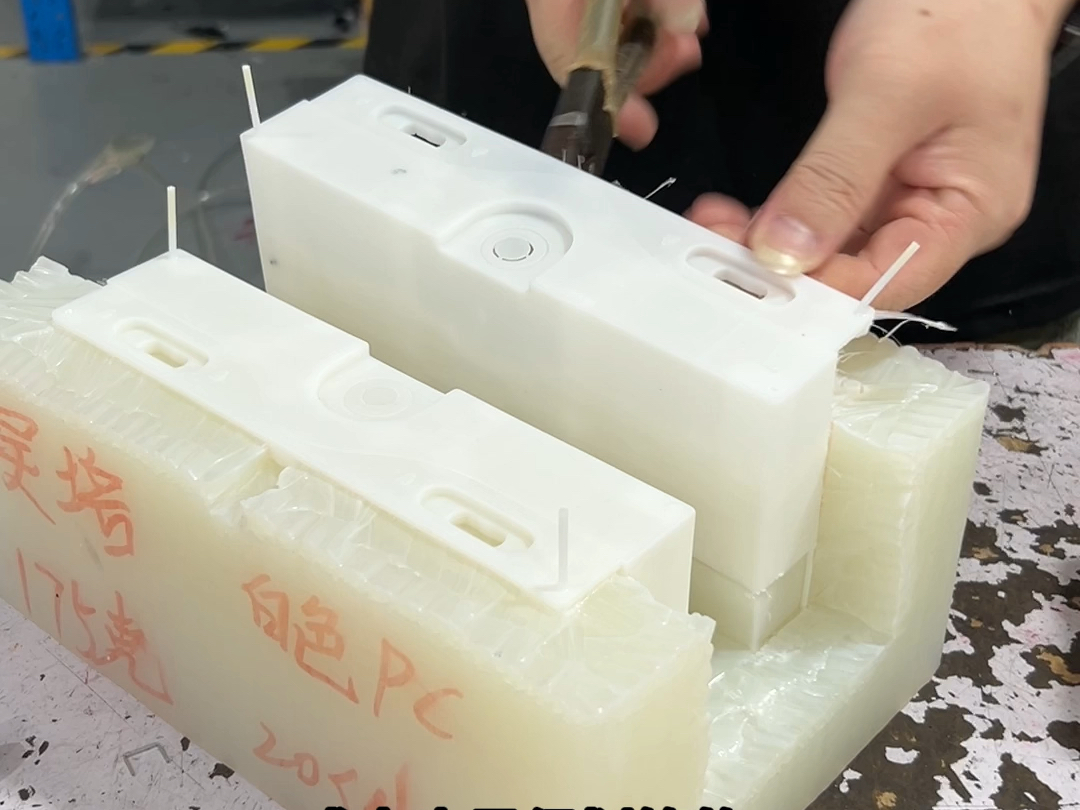

Understanding the Vacuum Casting Process

Master Model Creation: A high-quality master model, usually made using CNC machining or 3D printing, serves as the basis for creating the silicone mold.
Silicone Mold Preparation: The master model is placed in a casting box, and liquid silicone is poured over it. Once cured, the silicone mold is cut open to release the master model, leaving a cavity for casting.
Material Selection and Preparation: Materials such as polyurethane (PU), resin, or metals are prepared for casting.
Casting Under Vacuum: The selected material is poured into the mold inside a vacuum casting machine to eliminate air bubbles and ensure precision.
Curing and Finishing: After curing, the cast part is removed from the mold, and finishing touches such as trimming or polishing are applied.

Vacuum Casting Advantages

Vacuum casting offers numerous advantages, making it a preferred choice for precision manufacturing:

High Precision: The vacuum eliminates air bubbles and voids, ensuring dimensional accuracy.
Surface Quality: Produces parts with smooth surfaces and fine details.
Material Versatility: Suitable for a wide range of materials, including plastics, rubbers, and metals.
Cost-Effective for Low Volumes: Ideal for small production runs and prototypes.
Rapid Production: Short lead times compared to traditional manufacturing methods.

How Does a Vacuum Casting Machine Work?

A vacuum casting machine is the cornerstone of the vacuum casting process. It operates by creating a vacuum environment to facilitate the precise molding of parts. Here’s an overview of how it works:

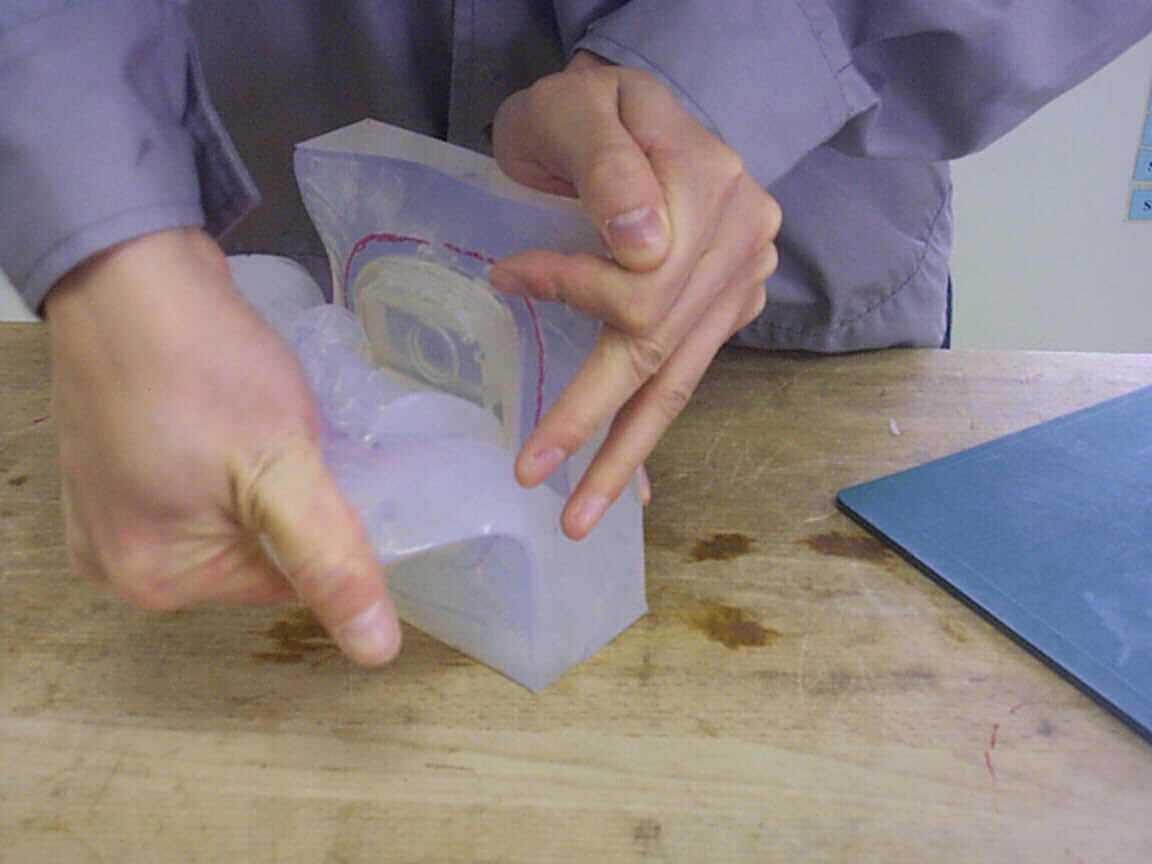

How Does a Vacuum Casting Machine Work

Vacuum Chamber Preparation: The mold and material are placed inside the vacuum chamber of the machine.
Air Removal: The machine creates a vacuum by removing air from the chamber, eliminating potential air pockets in the casting material.
Material Injection: Molten material is poured into the mold under vacuum conditions, ensuring it fills every crevice without air entrapment.
Curing: The cast material is allowed to cure within the vacuum chamber to solidify.
Demolding: Once cured, the mold is removed from the chamber, and the finished part is extracted.

Vacuum Die Casting

Vacuum die casting is a specialized application of vacuum casting, primarily used for metals. This technique involves creating a vacuum within the die casting mold to reduce porosity and improve mechanical properties. At Jucheng Precision, we utilize advanced vacuum die casting methods to produce robust and high-quality metal parts for various industries.

Arbe Vacuum Casting Machine

Arbe vacuum casting machines are well-known for their reliability and precision. These machines are equipped with advanced features such as automated vacuum control, efficient material injection systems, and user-friendly interfaces, making them suitable for diverse casting applications. At Jucheng Precision, our use of cutting-edge equipment like Arbe vacuum casting machines ensures top-notch results for our clients.

Casting Vacuum Chamber

The vacuum chamber is a critical component of any vacuum casting machine. It is designed to maintain an airtight environment during the casting process. By removing air and preventing contamination, the vacuum chamber ensures superior quality and accuracy in the final product.

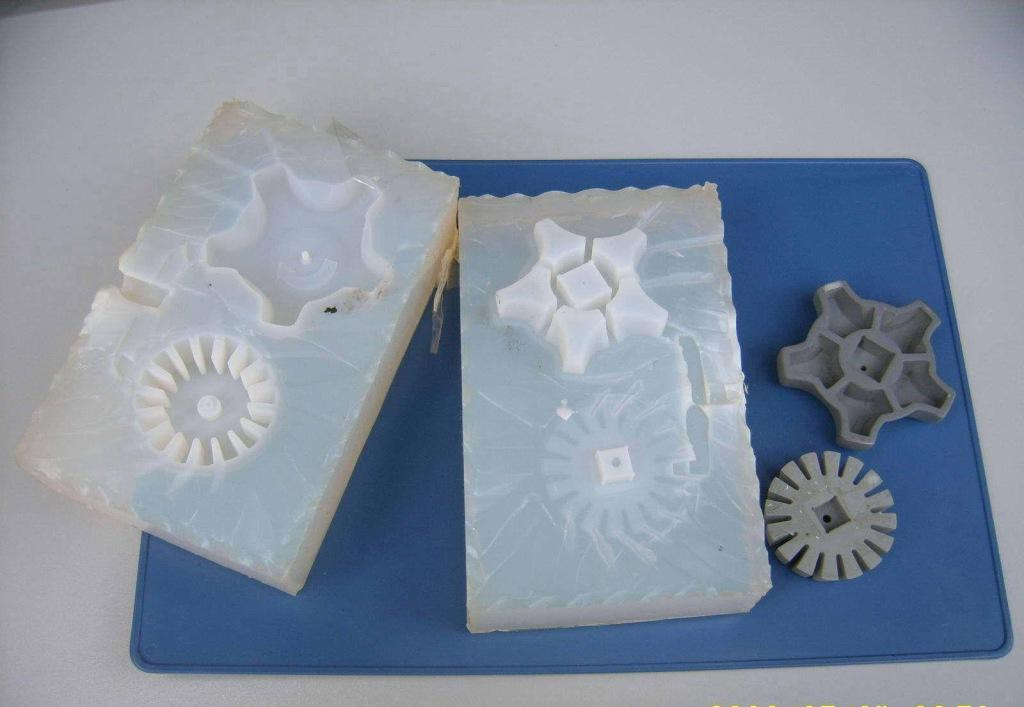

Casting Vacuum Chamber

Die Casting Vacuum System

In die casting, a vacuum system enhances the quality of metal parts by reducing gas porosity and improving material density. The system involves creating a vacuum in the mold cavity during the casting process. This technique is particularly useful for manufacturing complex metal parts with high strength and durability.

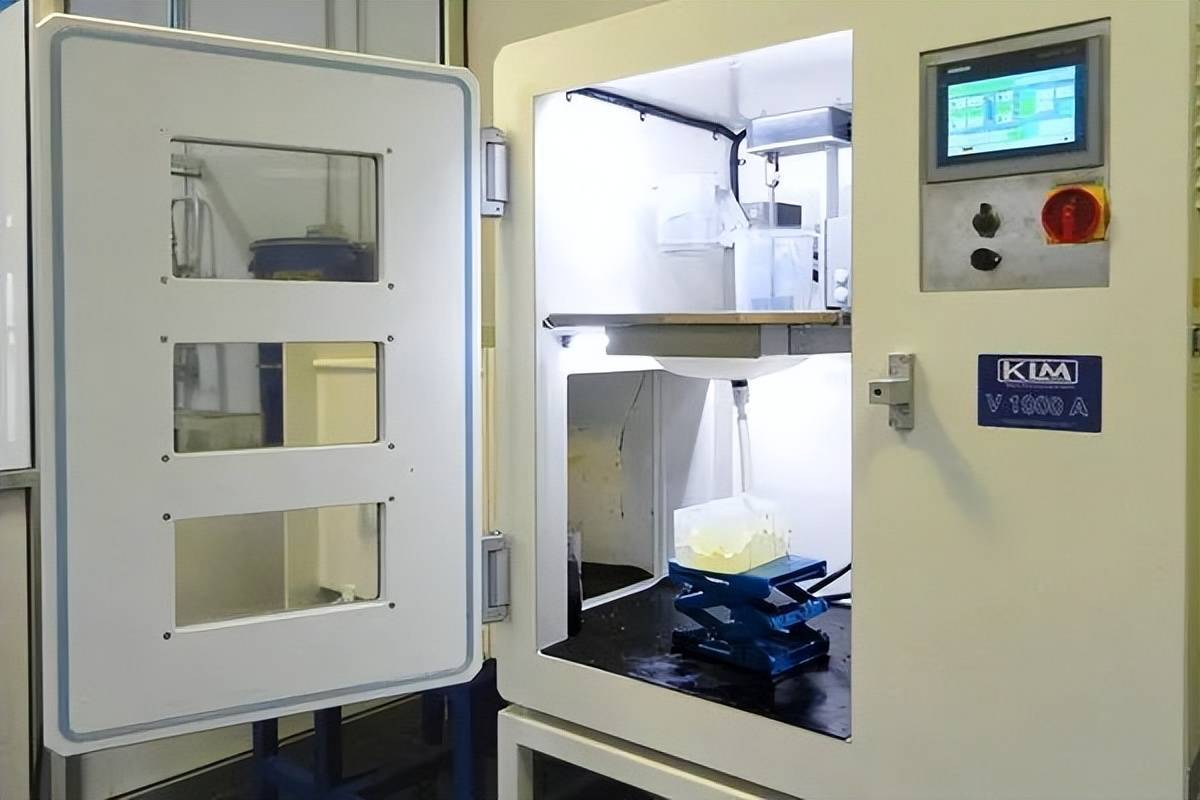

Die Casting Vacuum System

Pressure Casting vs. Vacuum Casting

Pressure casting and vacuum casting are two distinct techniques, each with its own applications and benefits:

Pressure Casting: Uses external pressure to force molten material into the mold. It is ideal for high-volume production and parts requiring high strength.
Vacuum Casting: Relies on vacuum to draw material into the mold. It is preferred for low-volume production, intricate designs, and materials prone to air entrapment.

Why Choose Jucheng Precision?

Located in China, Jucheng Precision is a leading provider of vacuum casting services. With a strong team of over 190 experts, state-of-the-art facilities, and over 13 years of experience, we deliver unmatched quality and efficiency. Our comprehensive range of services, including vacuum die casting and prototype development, caters to diverse industrial needs.

Vacuum casting is a powerful and versatile technique for producing high-quality parts with precision and efficiency. From vacuum die casting to pressure casting comparisons, understanding the nuances of this process is essential for achieving optimal results. At Jucheng Precision, our expertise and cutting-edge equipment ensure that we meet and exceed client expectations. Contact us today to learn more about how our vacuum casting solutions can elevate your manufacturing needs.
