What Is a CNC Spoilboard: Comprehensive Guide

CNC spoilboard, also known as a sacrificial board, is an essential component in CNC (Computer Numerical Control) machining. It serves as a protective layer between the workpiece and the machine’s bed, ensuring precision, reducing waste, and prolonging the lifespan of the equipment. Spoilboards are commonly used in CNC routers, mills, and other machining systems where workpieces need to be securely held while minimizing damage to the machine’s surface.

This article explores the purpose, materials, benefits, and maintenance of CNC spoilboards, along with their role in various machining applications—including machining tool steel, woodworking, plastics, and composites.

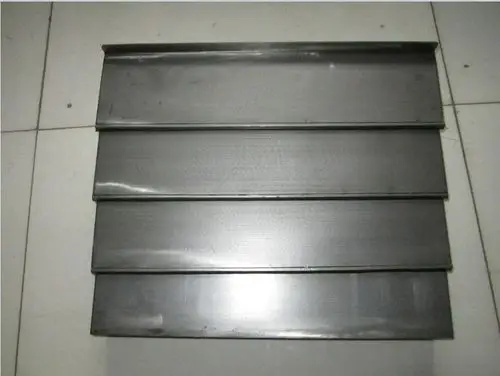

What Is a CNC Spoilboard

What Is a CNC Spoilboard?
A CNC spoilboard is a replaceable surface mounted onto the machine’s bed to absorb cuts, drills, and engraving marks that would otherwise damage the permanent table. Since CNC machines perform repetitive cutting operations, the spoilboard takes the wear and tear, allowing for easy replacement without affecting the machine’s structural integrity.

Key Functions of a Spoilboard:
  1. Workpiece Support – Provides a flat, stable surface for securing materials.
  2. Tool Protection – Prevents cutting tools from striking the machine bed.
  3. Improved Clamping – Allows for screws, clamps, or vacuum systems to hold materials firmly.
  4. Surface Consistency – Ensures uniform cutting depth across the workpiece.

Materials Used for CNC Spoilboards
Spoilboards are made from various materials, depending on the machining application:
1. MDF (Medium-Density Fiberboard)
  • The most common spoilboard material due to its affordability and ease of machining.
  • Ideal for wood, plastics, and non-ferrous metals.
  • Can be resurfaced multiple times before replacement.

2. Phenolic Resin Boards
  • More durable than MDF and resistant to moisture.
  • Suitable for high-volume production environments.

3. Aluminum Composite Boards
  • Used in high-precision CNC applications.
  • Resistant to warping and provides excellent stability.

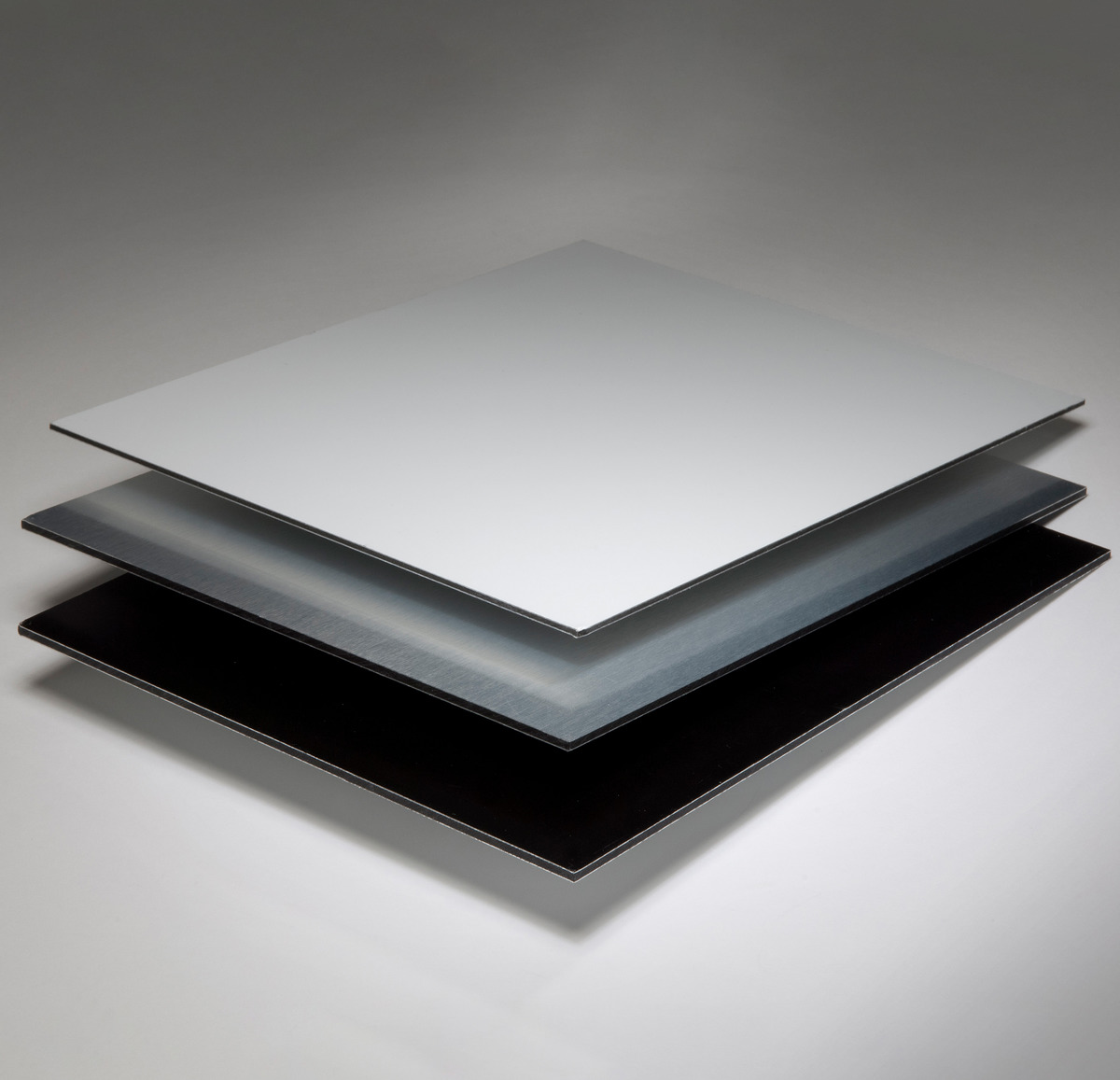

    Aluminum Composite Boards

4. Plastic (HDPE, UHMW)
  • Used when chemical resistance or low friction is required.
  • Common in CNC plasma cutting or laser applications.

While spoilboards are typically made from softer materials, they play a crucial role in machining harder substances like tool steel. When machining tool steel, a rigid spoilboard ensures stability, preventing workpiece movement that could lead to inaccuracies or tool breakage.

Benefits of Using a CNC Spoilboard
1. Cost-Effective Maintenance
Replacing a spoilboard is far cheaper than repairing or refinishing a CNC machine’s bed.

2. Enhanced Precision
A flat, well-maintained spoilboard ensures consistent cutting depths and reduces errors.

3. Versatility in Workholding
Spoilboards can be drilled or tapped for clamps, vacuum fixtures, or custom jigs.

4. Extended Tool Life
Prevents accidental collisions between cutting tools and the machine bed.

How to Install and Maintain a CNC Spoilboard
Installation Steps:
  1. Surface Preparation – Ensure the machine bed is clean and free of debris.
  2. Board Cutting – Cut the spoilboard material to match the machine’s dimensions.
  3. Secure the Board – Fasten it using screws, adhesives, or a vacuum system.
  4. Leveling & Surfacing – Machine the spoilboard flat to ensure uniform thickness.

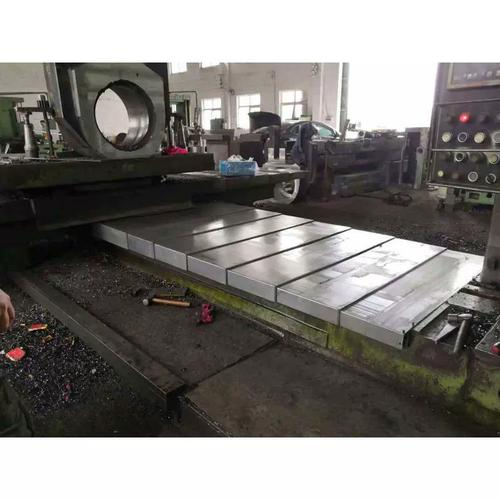

    How to Install and Maintain a CNC Spoilboard

Maintenance Tips:
  • Regular Resurfacing – Use a fly cutter or surfacing bit to remove cuts and restore flatness.
  • Debris Removal – Clean chips and dust to prevent interference with vacuum systems.
  • Replacement Timing – Replace the spoilboard once it becomes too thin or damaged.

Applications of CNC Spoilboards
1. Woodworking
Used in cabinetry, sign-making, and furniture production.

2. Plastics & Composites
Prevents melting or chipping during engraving and cutting.

3. Metal Machining
While softer than metals, spoilboards provide stability when machining tool steel, aluminum, or brass by securing the workpiece firmly.

4. Prototyping & Engraving
Allows for intricate designs without damaging the machine bed.

CNC spoilboard is a vital accessory that enhances machining efficiency, protects equipment, and ensures high-quality results. Whether working with wood, plastics, or even machining tool steel, a well-maintained spoilboard contributes to precision and cost savings. By selecting the right material and following proper maintenance practices, manufacturers can maximize the lifespan of both their spoilboard and CNC machine.

For optimal performance, regularly inspect and resurface your spoilboard, and replace it when necessary. Investing in a high-quality spoilboard is a small expense that pays off in long-term machining accuracy and productivity.
