For B2B manufacturing, steel selection is often a choice between extremes. On one hand, you have materials like 52100 bearing steel, designed for maximum internal wear resistance; on the other, **Precision Steel Fabrication** requires materials like Galvanized Steel, designed for maximum external corrosion resistance. These two materials define the boundaries of structural and mechanical application.
Successfully integrating these steels requires specialized knowledge of their processing—from the extreme hardness achieved through heat treatment for 52100, to the delicate handling of the protective zinc coating on Galvanized Sheet Metal. This guide provides a strategic framework for managing the unique manufacturing challenges of these two critical alloys.
content:
52100 Steel: The Ultimate Alloy for Extreme Wear Resistance
Galvanized Steel: Sourcing Structural Corrosion Protection
The High-Hardness Challenge: CNC Machining and Heat Treatment
Sheet Metal Fabrication Risks: Protecting the Zinc Coating
Integrated Assembly: Combining Machined and Fabricated Components

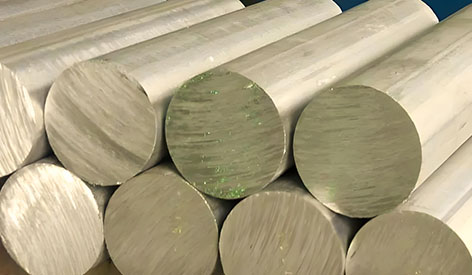

52100 Steel: The Ultimate Alloy for Extreme Wear Resistance
52100 steel is a high-carbon chromium alloy specifically designed for applications demanding exceptional wear resistance and fatigue strength, such as bearings, gears, and precision tooling. Its primary feature is its ability to achieve extremely high hardness through heat treatment.
The Material Role: It is typically used for internal components in industrial machinery, medical equipment, and automotive transmissions where parts are subjected to continuous rolling or sliding friction under heavy load.
Heat Treatment Strategy: The vast majority of its strength comes from a precise quenching and tempering process, pushing its hardness up to 65 HRC (Rockwell Hardness C-scale). This is a critical manufacturing step that must be validated by certification.
Corrosion Vulnerability: While extremely hard, 52100 steel is *not stainless and has poor corrosion resistance. It must be protected by a post-machining coating or kept in a clean, lubricated environment.

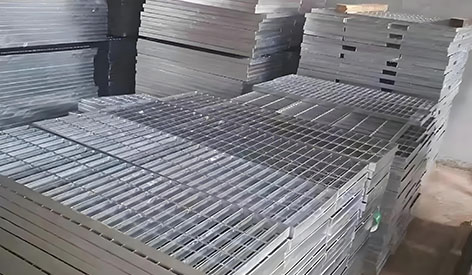

Galvanized Steel: Sourcing Structural Corrosion Protection
Galvanized steel is designed to solve the opposite problem: providing a cost-effective, durable structural component with guaranteed protection against atmospheric corrosion. It is the material of choice for large enclosures, external structural supports, and industrial HVAC systems.
The Zinc Barrier: Galvanized steel is mild carbon steel coated with a layer of zinc, which acts as a sacrificial anode. If the steel is scratched, the zinc corrodes first, protecting the underlying steel base.
Cost-Effectiveness: As a Sheet Metal Fabrication material, galvanized steel provides high structural strength at a lower material cost than stainless steel, making it the preferred choice for large-format, cost-sensitive external assemblies.

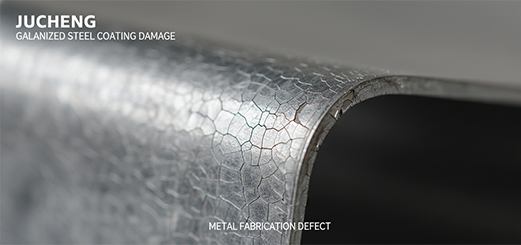

Forming Limitations: The zinc coating is relatively soft. Excessive Bending or deep Stamping can cause the zinc layer to crack or flake off at the bend radius, compromising corrosion resistance and requiring post-fabrication touch-up.
The High-Hardness Challenge: CNC Machining and Heat Treatment
The manufacturing sequence for 52100 is highly specialized. Due to its extreme final hardness, the part must be CNC Machined in its soft, pre-heat-treated condition:
Pre-Treatment Machining: All rough turning, milling, and initial feature cutting are performed while the steel is soft. This is when the part is most vulnerable to material deflection and requires extremely careful fixturing.
Post-Treatment Finishing: After the part has been heat-treated and hardened, the final high-precision features (like bearing races or mating surfaces) must be finished by grinding or hard turning. This requires specialized equipment and diamond or CBN (Cubic Boron Nitride) tooling.
Dimensional Change: The heat treatment process causes a predictable, but significant, dimensional change (shrinkage or growth). The initial CNC program must be precisely compensated to account for this change, a critical step mastered by experienced CNC Machine Shops.
Sheet Metal Fabrication Risks: Protecting the Zinc Coating
Fabricating galvanized steel requires strategies that protect the zinc coating throughout the entire Sheet Metal Fabrication process. Failure to do so exposes the underlying steel to immediate corrosion:
Laser Cutting Vapors: Laser cutting galvanized steel vaporizes the zinc coating, producing hazardous zinc oxide fumes. Specialized ventilation systems and slower cutting speeds are required to manage this, adding a layer of complexity to the process.
Welding Damage: Welding (Welding Service) burns away the zinc coating in the joint and the Heat Affected Zone (HAZ). This area must be immediately restored after fabrication using a zinc-rich cold galvanizing paint or spray.
Forming Lubrication: To prevent the zinc layer from galling (sticking) or flaking during the Bending Service or Stamping Service, appropriate lubricants and optimized tooling radii must be used during the forming process.

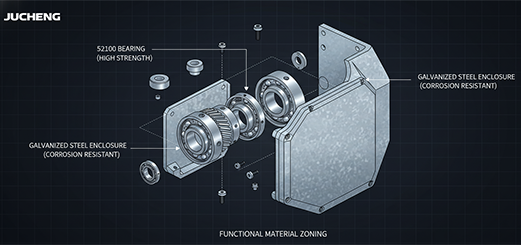

Integrated Assembly: Combining Machined and Fabricated Components
High-performance machinery often relies on the precise integration of these two extremes—the internal precision of 52100 and the external protection of galvanized steel:
Assembly Interface: The CNC machined 52100 bearing housing (often hard-chrome plated for added protection) must precisely fit into a mount that is part of the larger, galvanized Sheet Metal enclosure. This requires absolute dimensional fidelity between the two different process streams.
Corrosion Risk: When joining galvanized steel to other materials, care must be taken to prevent galvanic corrosion (dissimilar metals). The use of insulating washers and specialized fasteners is necessary to prevent the rapid deterioration of the joint.
Mastering the manufacturing of 52100 and Galvanized Steel requires integrated expertise across high-precision CNC Machining, complex heat treatment, and specialized Sheet Metal Fabrication techniques. Jucheng Precision Technology ensures that your internal components achieve maximum hardness and your external structures maintain durable corrosion protection.
Secure ultimate reliability in your structural and mechanical components. Contact us today to partner with an expert in advanced steel fabrication and heat treatment.
