When a buyer looks at a rugged off-road machine like a Can-Am, they see raw power and adventure. But a manufacturing expert sees a complex system of components under extreme stress—suspension links, steering knuckles, and chassis brackets—that must withstand endless pounding, mud, and vibration. The real question is not "How fast is it?" but "How well is the Automotive Component Durability engineered?"
The lifespan and performance of any UTV or ATV are determined by the precision of its CNC Machined metal parts and the structural integrity of its fabricated frame. Failure in a single high-stress component can mean the difference between a successful off-road adventure and a catastrophic breakdown. This guide focuses on the critical manufacturing pillars that ensure these high-performance machines survive their intended punishment.
content:
Alloy Choice: High-Strength Aluminum for Lightweight Suspension
CNC Machining for Stress Management: Eliminating Failure Points
Structural Welding: The Unseen Integrity of the UTV Frame
Plastic Toughness: Impact and UV Resistance in Housings
Compliance Assurance: IATF 16949 and Lifetime Traceability

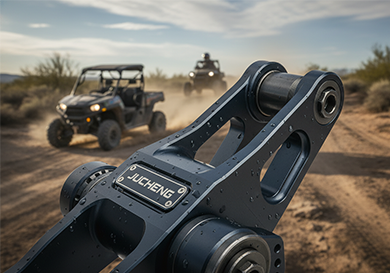

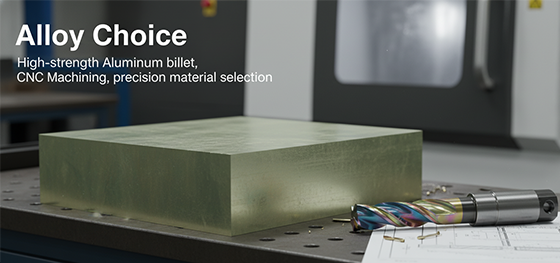

Alloy Choice: High-Strength Aluminum for Lightweight Suspension
Off-road vehicles demand lightweight parts that can absorb massive shocks. High-strength aluminum alloys are essential for suspension components, control arms, and high-stress linkages:
7075 Aluminum: Often chosen for its exceptional strength (comparable to many steels) and low weight. It requires expert CNC Machining and precise heat treatment (T6 temper) to achieve its peak performance and structural integrity.
Material Traceability: For high-stress parts, certified manufacturers provide full material test reports (MTRs) for every batch, confirming that the alloy meets the required yield strength before machining begins.
Corrosion Protection: After CNC machining, these parts receive mandatory surface treatments (such as Type III Hard Anodizing or Chemical Film Conversion Coating) to protect the metal from the mud, water, and road salts encountered in off-road environments.

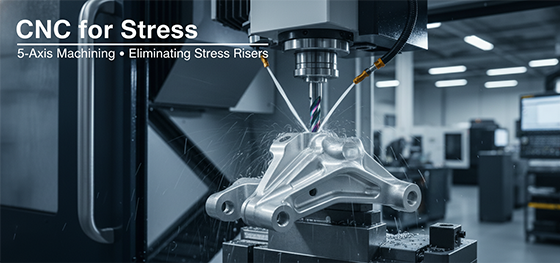

CNC Machining for Stress Management: Eliminating Failure Points
Fatigue failure in UTV/ATV components usually starts at a microscopic stress riser—a sharp corner or an inaccurate hole. Advanced CNC Machining is the only way to eliminate these potential failure points:
5-Axis Precision: Critical parts like wheel hubs and steering knuckles require 5-Axis CNC Machining to blend complex surfaces and ensure optimal internal material flow, eliminating sharp corners and stress concentrations that would cause the part to crack under cyclical load.
Hole Quality: Bearing bores and bolt holes must be finished to extremely tight tolerances with excellent surface finish to prevent premature wear and ensure fasteners maintain their torque under vibration.
Stress Relief: Controlled CNC processes and post-machining heat treatments are essential to relieve residual stress built up during the machining process, ensuring the part does not warp or crack after the final pass.

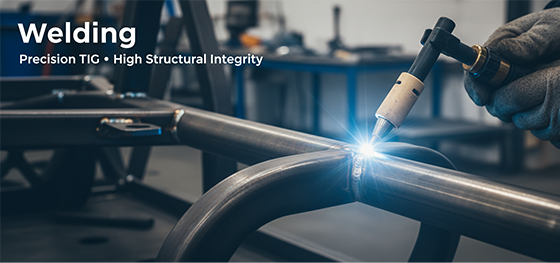

Structural Welding: The Unseen Integrity of the UTV Frame
The vehicle's frame, often fabricated from steel or aluminum tubing, is the backbone of the UTV. The quality of the Sheet Metal Fabrication, particularly the welding, determines the vehicle's structural lifespan:
Weld Penetration: For high-stress applications, full penetration welds are mandatory to ensure the joint strength equals or exceeds the strength of the base material. TIG welding is preferred for its precision and ability to achieve a clean, high-integrity joint.
Warping Control: Welding introduces massive heat stress, risking frame misalignment. Expert manufacturers use sophisticated jigging and fixturing along with staggered welding patterns to counteract thermal expansion and maintain the critical geometry of the chassis.
Post-Weld Inspection: Final frame assemblies are verified using specialized fixtures and CMM equipment to confirm that all mounting points (for the engine, transmission, and suspension) are within tolerance after the welding process is complete.
Plastic Toughness: Impact and UV Resistance in Housings
The dashboard, body panels, and internal housings are exposed to extreme UV rays, temperature swings, and physical impacts. These components rely on specialized Injection Molding and material selection:
Impact-Resistant Polymers: Materials like high-grade ABS, Polypropylene (PP), and certain TPO compounds are used for body panels to ensure they flex and return to shape under impact without shattering.
UV Stabilization: Plastics used for exterior components must contain UV stabilizers to prevent degradation (fading, cracking) from prolonged sun exposure, guaranteeing a long service life for the vehicle's cosmetics.
Sealing and Gaskets: Specialized elastomers (like TPU or silicone) are used for dust and water seals around the dashboard and air intake, manufactured via Injection Molding or Vacuum Casting to maintain their compression set over time.

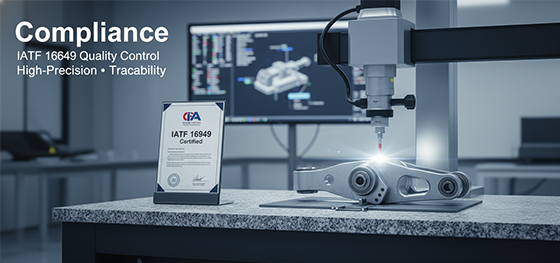

Compliance Assurance: IATF 16949 and Lifetime Traceability
For the global automotive supply chain, quality is enforced through rigorous systems. A true UTV/ATV component supplier operates under these same standards to ensure reliability:
IATF 16949 Certification: This is the global quality management system standard for the automotive industry. It ensures that every step of the manufacturing process—from material traceability to process control—is documented and audited to the highest level, directly supporting the vehicle's reliability.
Lifetime Traceability: Components are permanently marked (often via laser marking) with codes that allow traceability back to the exact material batch, time, and machine, ensuring rapid isolation and correction of any field failure.
Quality Verification: Components are verified using high-precision CMM (Coordinate Measuring Machine) equipment, ensuring every complex surface and mounting point is within the tight tolerance required for final vehicle assembly.
The true measure of a rugged off-road vehicle lies in its Automotive Component Durability. Jucheng Precision Technology offers the certified, multi-axis CNC Machining, advanced Sheet Metal Fabrication, and Injection Molding capabilities, all managed under IATF 16949, that build the unseen strength into every critical component.
Secure guaranteed durability for your automotive and UTV/ATV components. Contact us today to leverage our certified global manufacturing expertise.
