Making Screws Disappear:Countersinks and Counterbores
Views: 1 Author: Allen Xiao Publish Time: 2025-08-21 Origin: Site
Have you ever put together a Lego set and noticed how some pieces have little holes that let the blocks sit perfectly flat? Or maybe you've seen how some screws on bicycles or playground equipment sit completely flush instead of sticking out? This isn't magic - it's thanks to some clever engineering tricks called countersinks and counterbores!
Imagine you need to screw two pieces of metal together, but you don't want the screw head sticking out. Maybe it would snag on clothes, or perhaps something needs to slide over it smoothly. The solution is to create a special little "room" for the screw head to hide in. This room is what engineers call a counterbore.
A counterbore is basically a flat-bottomed, cylindrical hole that's wider than the main screw hole. Think of it like making a small shelf for the screw head to sit on. First, you drill a regular hole for the screw's body (the threaded part). Then you use a special tool to widen the top part of the hole just enough so the screw head can tuck inside, making everything nice and flat.
Spotting the Difference: Counterbore vs. Countersink
While both help hide screw heads, they work differently:
A counterbore makes a square-shaped shelf with a flat bottom - perfect for screws with flat bottoms too (like Allen bolts). It looks like a mini cylinder inside your material.

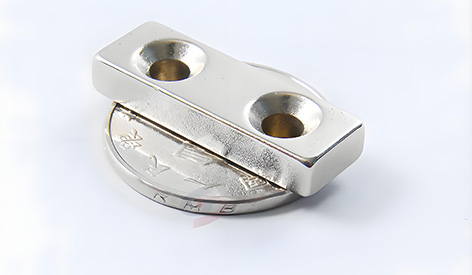

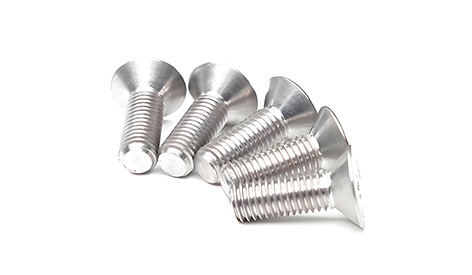

A countersink makes a cone-shaped room - perfect for screws with pointy bottoms (like flat-head screws). It looks like an upside-down ice cream cone.
The choice depends on what kind of screw you're using!
The Magic Tool That Makes It Happen

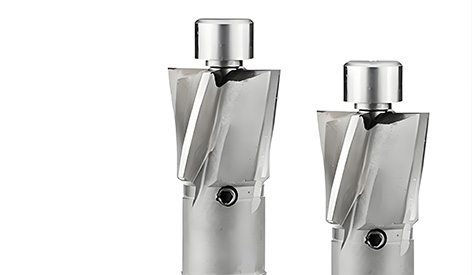

You can't make these special holes with a regular drill bit. You need a special tool called a counterbore tool (super creative name, right?). This tool looks a bit like a regular drill bit but with a secret weapon: a little guide pin (called a pilot) on the end that keeps it from wobbling. This ensures the hole is perfectly centered every time.
Why Guides Are Helpful
Remember that guide pin we mentioned? Tools that have this are called piloted counterbores. The pilot acts like training wheels for the tool - it slides into the original smaller hole to keep everything perfectly aligned while the wider part cuts the shelf for the screw head. This is super important for making sure everything lines up correctly in precision projects.
Sometimes You Have to Work Backwards
Usually, you drill from the top. But what if you can't? Imagine needing to make your hidden screw shelf from the bottom side of a piece of wood or metal! This tricky move is called a reverse counterbore. It's like building a model kit starting from the hardest piece first. It requires special planning and care to get it right.
The Special Screws That Fit Perfectly
You can't use just any screw for a counterbored hole. You need a special counterbore screw (often called a socket head cap screw). These screws have flat heads and are usually turned with an Allen key. Their flat bottom matches the flat bottom of the counterbored hole, so they sit perfectly flush and apply pressure evenly.
How Machines Make These Holes

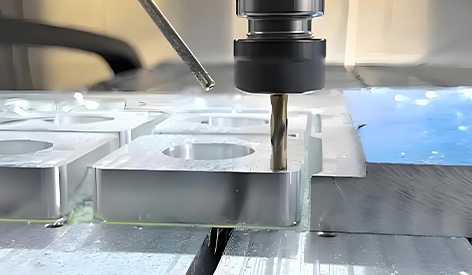

The process of creating these hidden shelves is called counterbore machining. While you could try to do it carefully with a hand drill, factories and professional mechanics use machines like drill presses or CNC machines (which are like robot tools that can be programmed to be super precise). They program the machine to know exactly how wide and how deep to make the hole for the specific screw being used.
So Many Sizes!
Just like shoes, screws come in many sizes. And that means counterbore holes need different sizes too! Luckily, there are standard counterbore sizes that match standard screw sizes. This means an engineer knows that for a ¼-inch screw, they need to make a ⅜-inch wide counterbore hole that's exactly ⅛-inch deep. This standardization makes it easy to find the right tools and parts for any job.
