The challenge of protecting critical systems from extreme heat and fire is a core concern in high-stakes industries. In B2B manufacturing, this is achieved not through simple insulation, but through the precise application of Industrial Flame Retardant Solutions—specialized materials and engineered enclosures designed to contain thermal events, slow fire spread, and protect sensitive electronics.
For components in automotive battery packs, server housings, or aerospace equipment, the manufacturing goal is to ensure the component itself is self-extinguishing and dimensionally stable under heat. This guide explores the advanced material and processing strategies required to guarantee component survival in extreme thermal environments.
content:
Material Grades: UL 94 V-0 and the Self-Extinguishing Standard
High-Performance Plastics: PEEK and Ultem in Extreme Environments
Machining Strategy: Precision CNC for High-Temperature Polymers
Thermal Management: Integrating Fire Retardancy with Heat Dissipation
Non-Plastic Solutions: Metal and Advanced Barrier Coatings
Material Grades: UL 94 V-0 and the Self-Extinguishing Standard
The foundation of industrial fire protection is the material's ability to self-extinguish. The universally recognized standard for this is the UL 94 flammability rating:
UL 94 V-0: This is the highest and most common rating for electronic enclosures. It means that a test specimen stops burning within 10 seconds after two applications of a test flame, and no dripping (which could spread the fire) is allowed.
Key Materials: Common plastics that achieve a V-0 rating often include specialized ABS/PC blends, Nylon (PA), and high-performance polymers like PEEK and Ultem, all formulated with non-halogenated flame retardants.
Ignition Temperature: Beyond flammability, the material's high auto-ignition temperature is critical. Materials must withstand the heat generated by failing electronics (e.g., short circuits) long enough to prevent the enclosure from catching fire.
High-Performance Plastics: PEEK and Ultem in Extreme Environments
For the most extreme thermal and structural applications, standard V-0 rated plastics are replaced by high-performance polymers that are inherently flame retardant and retain mechanical strength at high temperatures:
PEEK (Polyether Ether Ketone): Offers excellent continuous working temperature, exceptional mechanical strength, and is inherently low-flammable, making it ideal for aerospace structural brackets and high-temperature electronic connectors.
Ultem (PEI): Highly valued for its lightweight, high strength, and self-extinguishing properties, Ultem is widely used in aircraft interior components and electronic circuit board supports.
Machining vs. Molding: Due to their high cost, these polymers are often CNC Machined from solid stock for prototypes and low-volume production, ensuring parts maintain structural integrity and dimensional accuracy under extreme conditions.
Machining Strategy: Precision CNC for High-Temperature Polymers
Even a perfect material can be compromised by poor manufacturing. CNC Machining of high-temperature polymers requires specialized thermal management to prevent internal stress and warpage:
Thermal Stress Relief: Polymers like PEEK and Ultem are often annealed (controlled heat-treated) before and/or after CNC Machining to relieve internal stress locked into the material from the initial stock production. This is essential to prevent part warpage when exposed to operational heat.
Cooling Strategy: Standard cutting fluids are often avoided due to material absorption risk. Instead, high-speed cutting with pressurized air is used to rapidly evacuate heat and chips, preventing the plastic from melting and smearing onto the finished surface.
Glass-Filled Composites: Machining glass-filled flame retardant materials requires specialized diamond-coated tooling to counteract the extreme abrasion caused by the glass fibers, ensuring tool integrity and a quality surface finish.
Thermal Management: Integrating Fire Retardancy with Heat Dissipation
Passive fire retardancy must be integrated with active thermal management to ensure the component not only resists fire but also manages its operational heat effectively:
Heat Sinking: Flame retardant plastic enclosures are often designed with precision mounting points for CNC Machined aluminum heat sinks. The dimensional accuracy of the plastic housing is critical to ensure proper surface contact for efficient heat transfer.
Battery Housings: In electric vehicle battery packs, flame retardant materials are mandatory. The housing must be precisely manufactured (often using Injection Molding) to contain a thermal event while also integrating cooling channels for routine heat dissipation.
Airflow Design: The enclosure's geometry must be optimized to prevent hot spots. A skilled manufacturer provides Design for Manufacturing (DFM) feedback to ensure the part can be molded or machined without internal features that restrict airflow or trap heat.
Non-Plastic Solutions: Metal and Advanced Barrier Coatings
While plastics are essential for lightweighting, metal fabrication remains the core of fire protection for high-heat industrial components:
Sheet Metal Enclosures: Industrial control boxes and chassis are fabricated from Stainless Steel or Aluminum alloy (via Laser Cutting and Bending) to provide an inherent fireproof barrier around critical electronics.

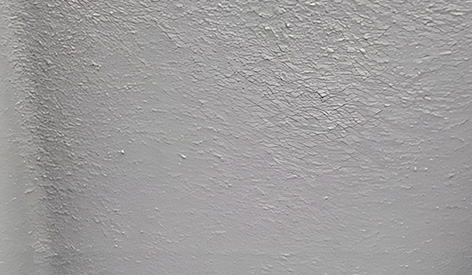

Intumescent Coatings: For metal structures that must withstand fire for an extended period, intumescent (fire-retardant) coatings are applied. These coatings swell up when heated, forming a thick, insulating foam layer that protects the underlying metal structure.
Process Integration: The most effective solutions combine materials, using a CNC Machined metal heat sink mounted within a V-0 rated plastic enclosure, ensuring the component is protected from both internal heat and external flame.
Industrial Flame Retardant Solutions are a fundamental requirement for component reliability in extreme thermal environments. Jucheng Precision Technology offers comprehensive expertise in sourcing and processing high-performance polymers (PEEK, Ultem) and fabricating certified metal enclosures to ensure your critical components meet the highest standards of fire safety and thermal stability.
Secure component survival in extreme heat. Contact us today to discuss the optimal material and manufacturing strategy for your demanding thermal management projects.
