Miniature milling has become a cornerstone of modern precision manufacturing, especially in the production of intricate components with tight tolerances. The increasing demand for high-performance miniature parts across sectors such as aerospace, medical devices, electronics, and automotive has driven the advancement of both tools and techniques. Among the key tools in this domain, the facemill plays a unique and critical role, particularly in achieving surface flatness and removing material efficiently from small workpieces.
This article explores the topic of miniature milling through three core perspectives: the technical process involved, the end-customer expectations, and the professional services offered by manufacturing companies such as Jucheng Precision.
content:
I. Technical Perspective: Precision at Micron Scale
Miniature milling is the process of machining small components—often smaller than 10 mm in size—with extreme precision and accuracy. These parts are typically used in assemblies where space constraints and performance requirements prohibit the use of larger components. The facemill tool, traditionally associated with large-scale surface cutting, has undergone significant evolution to meet the needs of miniature milling environments.
1. Facemill in Miniature Milling

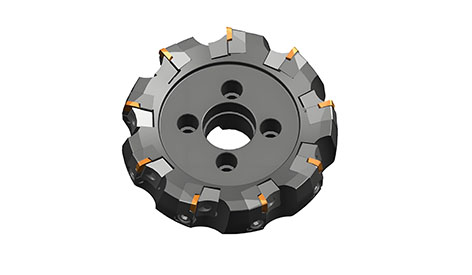

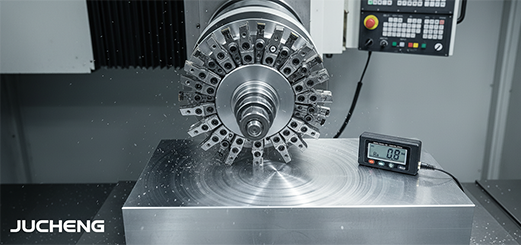

The facemill tool, characterized by its multiple cutting inserts and flat face geometry, is optimized for material removal and flatness. In miniature milling, micro facemill cutters are developed with reduced diameters and ultra-sharp inserts to adapt to the smaller scale without compromising the finish.
Key considerations include:
Tool Geometry: Micro facemills typically feature smaller cutter diameters (under 20 mm) with customized insert rake angles to reduce cutting forces and vibrations.
Material Compatibility: Common materials processed include aluminum, titanium, stainless steel, and engineering plastics. Micro facemills must be compatible with varying hardness and thermal properties.
Cutting Parameters: Feed rates, spindle speeds, and depth of cut are finely tuned. For example, spindle speeds can exceed 30,000 RPM in miniature applications to ensure clean shearing of material.
2. Surface Integrity and Flatness
The facemill is particularly valued in miniature milling for achieving superior surface finish and geometric flatness. These are critical in applications like sealing surfaces in medical implants or housings for miniature electronics, where even minor irregularities can compromise functionality.
To enhance surface integrity, advanced coatings like TiAlN or DLC are applied to facemill inserts, which reduce friction, minimize heat buildup, and prolong tool life.
3. Machine Capabilities
High-performance CNC machines used for miniature milling must offer micron-level positioning accuracy and low spindle runout. This ensures the facemill operates effectively without introducing chatter or tool deflection, both of which can distort miniature features.
II. Customer Perspective: Requirements and Expectations
Customers seeking miniature milling solutions with facemill operations often have unique and stringent requirements. These include not only dimensional accuracy but also material-specific finishes and fast turnaround times.
1. Design-to-Manufacturing Alignment
Clients expect their designs to be realized with fidelity. In many cases, the use of a facemill in miniature operations is essential to ensuring that the functional surfaces meet tolerances down to ±0.005 mm. Customers often provide 3D CAD models, and rely on manufacturing partners to validate these with simulation and CAM programming tailored to miniature facemill cutting paths.
2. Surface Quality and Functionality
For components like valve seats, microchip housings, or optical mounts, surface flatness is non-negotiable. Customers expect a post-machining Ra value often under 0.2 μm, which can only be achieved with high-precision facemilling under stable cutting conditions.
3. Batch Consistency
Given the scale of miniature parts, most are produced in moderate to high volumes. Clients expect uniform quality across batches, and the facemilling process must be repeatable and stable, especially where the finish is functional, not just aesthetic.
4. Communication and Customization
Modern customers value flexibility. Whether it’s a modification to the facemill radius or a change in material, the supplier must adapt quickly. Clear communication regarding tolerances, tooling constraints, and turnaround timelines is essential for building trust.
III. Company Service Perspective: How Jucheng Precision Adds Value
In the realm of miniature milling and precision facemill applications, Jucheng Precision stands out as a reliable and forward-thinking partner. With a commitment to quality and engineering excellence, the company supports clients from design review through final inspection.
1. Advanced Equipment and Tooling
Jucheng Precision invests in cutting-edge CNC machining centers capable of high-speed, high-accuracy miniature milling. The facility is equipped with advanced facemill tooling designed for small-scale applications, allowing for the production of flat surfaces with ultra-low surface roughness.
2. Skilled Engineering Team

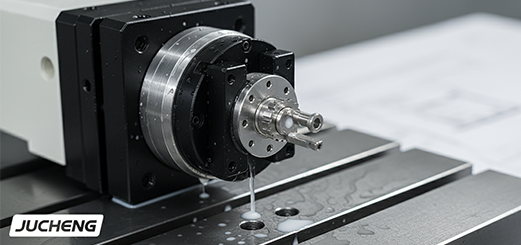

Jucheng’s engineers are experienced in toolpath optimization, tool selection, and workholding strategies specifically for small parts. This expertise ensures efficient use of facemill tools while avoiding overcutting, tool chatter, and thermal distortion.
3. Quality Assurance Systems

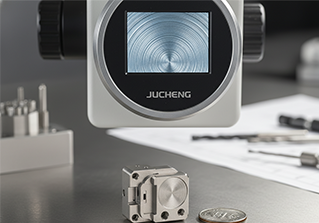

The company employs rigorous in-process and final inspection procedures, including the use of coordinate measuring machines (CMMs), optical microscopes, and surface profilometers. These ensure that every miniature part machined with a facemill meets the specified flatness, surface finish, and dimensional criteria.
4. Flexible Production Services
Whether the customer needs a few prototype parts or a production run of several thousand units, Jucheng Precision scales its processes to meet demand without sacrificing lead time or quality. The ability to offer short lead times, even for complex miniature components, is a key advantage.
IV .Conclusion
The integration of facemill operations into miniature milling is both a technical necessity and a differentiator in modern precision manufacturing. Achieving flat, functional surfaces on small-scale parts requires not just advanced tools but also deep engineering insight and reliable process control.
From a customer’s viewpoint, the use of facemill tools in miniature milling must translate into tangible benefits—surface quality, dimensional accuracy, and production consistency. From a company perspective, delivering these outcomes requires a blend of technology, experience, and responsive service.
Jucheng Precision exemplifies this blend, offering a comprehensive service package that supports miniature milling projects involving facemilling with precision, agility, and professionalism. Whether for medical devices, aerospace connectors, or microelectronic components, clients can trust Jucheng to deliver with excellence and confidence.
