Precision Cuts: Defeating Thermal Distortion in Aerospace

Watching a massive sheet of raw titanium slowly warp and curl like a dying leaf under intense thermal stress is an engineer's worst nightmare. Slicing thick alloy plates requires an absolute mastery of brutal kinetic energy and localized thermodynamics. Executing flawless precision-cuts dictates that factory operators must mathematically calculate exactly how the raw metal will react before the beam ever fires.

Relying purely on high-speed fiber lasers without understanding the physical consequences guarantees catastrophic failure on the assembly line. Vaporizing solid steel creates a violent heat-affected zone that permanently alters the underlying metallurgical grain structure. Ignoring this hidden molecular damage directly causes critical load-bearing brackets to snap unpredictably under constant harmonic highway vibration.

Procuring complex sheet metal components demands a ruthless financial audit of your entire supply chain. Scraping sharp, hardened slag off poorly profiled edges consumes terrifying amounts of manual labor and silently destroys your operational budget. Hardware startups must partner with facilities that eliminate downstream bottlenecks by delivering absolutely pristine, installation-ready profiles straight off the machine bed.

Operating deep inside the Shenzhen precision manufacturing hub gives our engineering teams an aggressive advantage. Jucheng Precision strategically deploys an arsenal of advanced profiling technologies specifically tailored to the unique molecular density of your chosen material. We refuse to compromise your premium assembly tolerances with cheap, jagged edge conditions.

content:

Defeating Thermal Distortion in Aerospace Alloys
   Eradicating Secondary Deburring Profit Traps
   Mastering Advanced Kerf Width Compensation
   Cold Severing: The Abrasive Waterjet Advantage
   Frequently Asked Questions: Sheet Metal Physics

Defeating Thermal Distortion in Aerospace Alloys

Do intense fiber lasers permanently alter the internal grain structure of sensitive aerospace alloys?

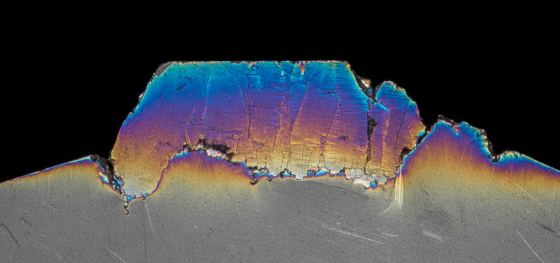

Yes. The extreme localized heat violently melts the metal, creating a highly brittle Heat-Affected Zone (HAZ) along the edge that drastically lowers the overall fatigue life of the component.

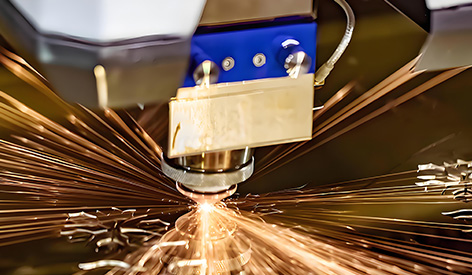

Controlling aggressive thermal distortion separates amateur metal shops from true industrial heavyweights. Blasting high-carbon steel with a high-wattage beam causes the immediate edge to quench rapidly in the ambient air. This sudden temperature drop chemically hardens the outer skin, making it virtually impossible to machine or tap threads into the affected area later.

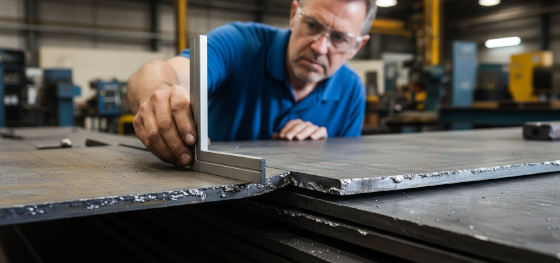

Thin-gauge aluminum sheets react violently to uncalibrated thermal profiling. The concentrated heat expands the localized metal instantly, but the surrounding cold plate restricts this expansion, causing the entire geometry to physically bow and twist. Operators must deploy intelligent nesting strategies and rapid piercing algorithms to safely dissipate this trapped kinetic energy.

Aviation engineers absolutely despise micro-cracking hidden along the profiled edges of their turbine components. These microscopic fractures act as massive stress concentrators during high-altitude flight. Eliminating this risk requires utilizing alternative cold-cutting methods or drastically dialing back the laser wattage while simultaneously flooding the zone with specialized assist gases like high-pressure nitrogen.

Eradicating Secondary Deburring Profit Traps

Why do sharp slag deposits completely paralyze downstream assembly line stations?
Hardened dross physically prevents sheet metal parts from sitting completely flat inside robotic welding fixtures, ruining the weld penetration and destroying the dimensional accuracy of the entire sub-assembly.

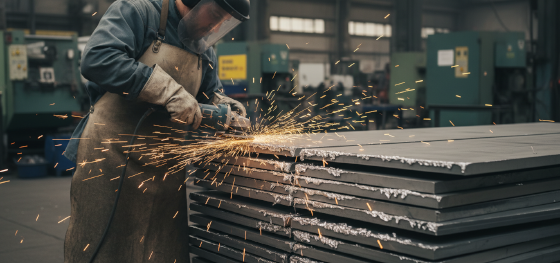

Falling into the secondary deburring trap destroys hardware profit margins overnight. Factory managers despise watching exhausted technicians waste hours manually grinding rough edges with handheld power tools. This highly unpredictable human labor completely neutralizes the incredible speed advantages initially gained by using high-tech automated machinery.

Sending parts to a heavy automated tumbling machine removes the burrs but simultaneously ruins critical surface finishes on premium cosmetic enclosures. Procurement executives must aggressively demand zero-defect edge quality directly from the primary profiling operation. You cannot build a scalable hardware empire if you constantly pay for manual error correction.

Optimizing assist gas pressure prevents molten slag from fusing back onto the bottom of the raw plate. Firing high-purity nitrogen physically blows the liquid metal completely out of the trench before it has time to solidify. This precise chemical control delivers a flawless, oxidation-free edge that is immediately ready for premium powder coating.

Mastering Advanced Kerf Width Compensation

Can engineers safely ignore the physical width of the profiling beam when drawing CAD files?
Absolutely not. Every cutting technology physically consumes raw material during the severing process, and failing to offset the toolpath mathematically guarantees your final component will be significantly undersized.

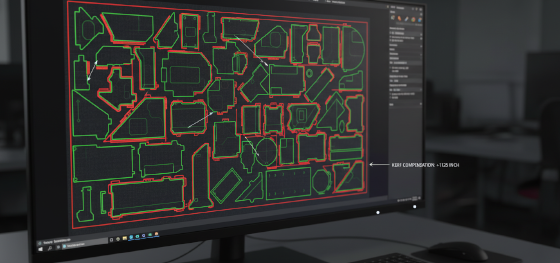

Executing flawless kerf width compensation requires hardcore CAM programming expertise. A standard abrasive waterjet nozzle carves a physical trench roughly one millimeter wide. If the software fails to dynamically shift the cutting head outwards by exactly half that distance, the precision bearing press-fit designed into your CAD file will violently fail on the factory floor.

Dealing with thick metal plates introduces terrifying dimensional taper. The beam naturally loses kinetic focus as it travels deeper into the raw billet, resulting in a distinct V-shaped edge profile. Correcting this angular deviation requires advanced 5-axis tilting heads that physically angle the nozzle to counteract the natural kinetic decay of the beam.

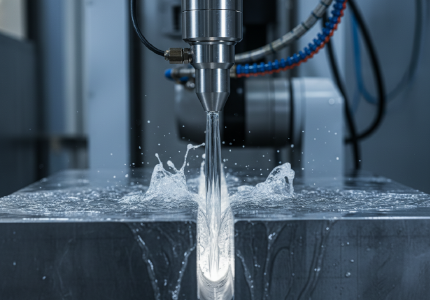

Cold Severing: The Abrasive Waterjet Advantage

Is there a profiling technology that guarantees absolutely zero thermal damage to sensitive alloys?
Yes. Pushing water and crushed garnet through a sapphire orifice at sixty thousand PSI creates a supersonic abrasive stream that erodes the metal physically, entirely eliminating the dangerous heat-affected zone.

Deploying aggressive waterjet technologies solves impossible engineering dilemmas instantly. When an EV client demands complex profiles carved out of highly sensitive copper busbars, utilizing lasers causes massive beam reflection and severe melting. The cold abrasive stream slices through reflective copper and highly flammable carbon fiber identically, maintaining absolute molecular integrity.

Cutting multiple layers of different materials simultaneously is completely impossible with thermal machinery. The cold stream easily slices through pre-laminated composite sandwich panels without melting the sensitive internal adhesive layers. This immense versatility allows hardware startups to prototype exotic material combinations rapidly without fearing catastrophic delamination.

Frequently Asked Questions: Sheet Metal Physics

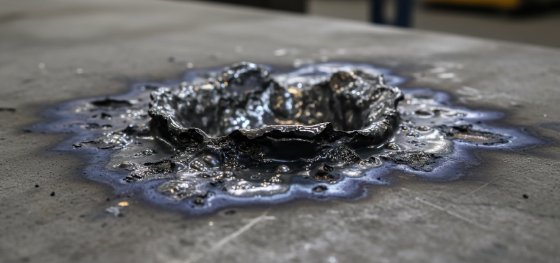

Why does the piercing process leave a massive ugly crater on my metal plate?
Punching the initial entry hole through solid steel requires the beam to dwell in one spot, violently melting and blowing out material in all directions. Programmers must start the pierce entirely outside the final part geometry and slowly lead-in to the actual profile.

Can thermal profiling cut perfectly clean holes that are smaller than the plate thickness?
No, this violates basic thermodynamic physics. The intense concentrated heat cannot escape a tiny hole fast enough, causing the entire feature to melt into a deformed blob. Tiny precision holes in thick plate must be drilled mechanically on a CNC mill.

Does using oxygen as an assist gas reduce the final manufacturing cost?
Oxygen triggers an exothermic chemical reaction that burns the steel violently, drastically increasing cutting speeds and lowering machine time. However, it leaves a heavy oxidized scale on the edge that must be aggressively ground off before any premium paint will adhere, often destroying the initial cost savings entirely.
