The sharp, sickening snap of a high-speed steel tap breaking deep inside a ten-thousand-dollar titanium billet is a sound that makes an entire machine shop go dead silent. I have watched veteran machinists spend agonizing hours attempting to extract shattered taps using plunge EDM hole-poppers, desperately trying to save a critical aerospace component from the scrap bin. Relying exclusively on rigid tapping for hardened alloys guarantees catastrophic tool failure when internal chip evacuation inevitably breaks down.
Deploying Thread Milling completely rewrites the physical rules of internal fastener fabrication. Instead of violently forcing a full-diameter cutting tool down a blind hole, CNC programmers utilize a much smaller solid carbide cutter. By mathematically driving the spindle in a precise helical spiral—simultaneously moving in the X, Y, and Z axes—the tool gently shaves the thread profile into the sidewall. If the cutter breaks, it simply falls out of the oversized hole.
Mastering this specific helical interpolation matrix aggressively prevents devastating non-recurring engineering (NRE) losses. Procurement engineers must brutally evaluate raw tooling costs, cycle time penalties, and the catastrophic risk of part rejection. Precision hardware success relies entirely on matching the designated threading methodology to the exact hardness of the incoming raw material.
content:
Thread Milling vs Rigid Tapping: How Do Mechanics Differ?
When Should You Specify Thread Milling for CNC Parts?
When MUST You Avoid Thread Mills and Use Standard Taps?
How Does Chip Evacuation Prevent Catastrophic Scrap?
What Are the True Cost Dynamics for CNC Threading?
How Does Jucheng Optimize Internal Threads in Shenzhen?
What Are the Most Critical Thread Fabrication FAQs?
Thread Milling vs Rigid Tapping: How Do Mechanics Differ?

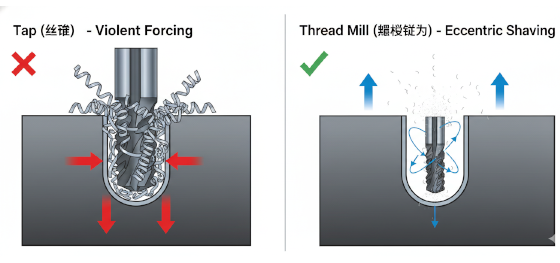

Does a thread mill cut the same way as a machine tap? Absolutely not. A tap physically plows straight down into the material matching the exact hole diameter, while a thread mill rotates eccentrically within a larger void to shave the metal laterally.

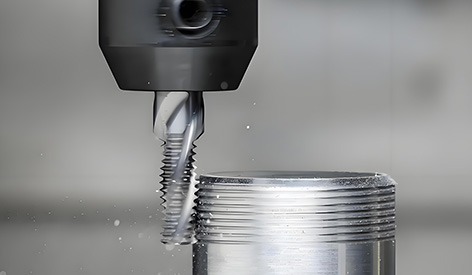

Rigid tapping demands massive spindle torque. The machine violently forces the tap into the pilot hole, forcing the tool's teeth to aggressively displace and cut the substrate simultaneously. The cutting edge remains in continuous, agonizing contact with the metal until the spindle reverses to back out. This continuous friction generates extreme localized heat, making taps highly susceptible to binding and snapping in hard alloys like 304 stainless steel.

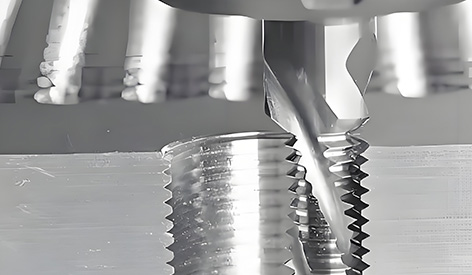

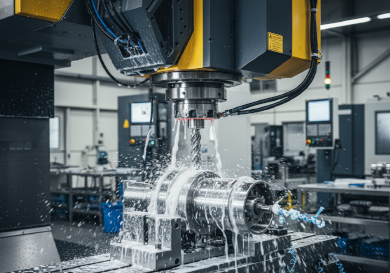

Thread mills eliminate continuous engagement. The tool diameter is deliberately manufactured smaller than the pilot hole. By executing a CNC helical interpolation command (G02 or G03), the spinning cutter dances around the inner wall, taking light, intermittent shaving cuts. This interrupted cutting action dramatically reduces spindle load, drastically drops kinetic heat generation, and creates a perfectly smooth thread root free of tearing.
| Machining Metric | Rigid Tapping | CNC Helical Thread Milling | Engineering Impact |
| Tool Breakage Risk | Extreme (Part is ruined) | Zero (Broken tool falls out) | Milling prevents catastrophic billet scrap |
| Versatility | Locked to one specific pitch/size | One tool cuts multiple diameters | Milling aggressively shrinks tool inventory |
| Cycle Time | Extremely Fast | Slower (Requires multiple orbits) | Tapping dominates soft aluminum mass production |
| Blind Hole Clearance | Requires deep clearance for tap point | Cuts perfectly to the flat bottom | Milling optimizes shallow assembly profiles |
When Should You Specify Thread Milling for CNC Parts?
Is thread milling mandatory for high-value titanium and inconel components? Yes. The risk of destroying an expensive aerospace or medical billet with a snapped tap makes the slower cycle time of milling completely irrelevant.

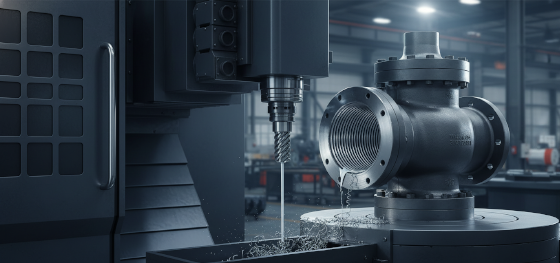

When processing massive oil and gas valve bodies, engineers frequently require giant internal threads exceeding three inches in diameter. Purchasing a custom solid high-speed steel tap for an M80 thread costs thousands of dollars, requires a massive geared spindle to drive it, and poses a lethal safety risk if it shatters. A machinist can easily cut that massive M80 thread using a standard, small-diameter replaceable insert milling cutter.
Furthermore, if your blueprint demands asymmetrical or custom thread profiles that do not exist in standard catalogs, milling is your only pathway. Programmers can dynamically adjust the CNC tool offsets by a few microns to perfectly dial in a tight interference fit for a proprietary hydraulic fitting, a feat completely impossible with a fixed-dimension tap.
When MUST You Avoid Thread Mills and Use Standard Taps?

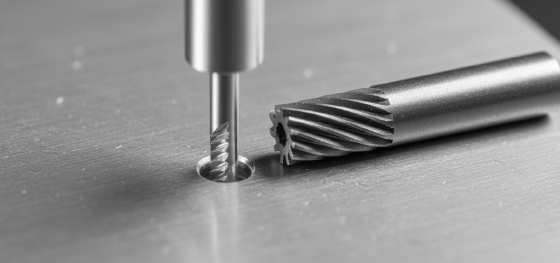

Can you thread mill a deep, microscopic M2 hole? Absolutely not. The extreme length-to-diameter ratio causes the tiny, fragile milling cutter to deflect violently, shattering the tool instantly.
When dealing with extremely deep, narrow cavities (exceeding 3xD depths) in soft materials like 6061 aluminum or brass, form tapping (roll tapping) dominates the floor. A form tap contains no cutting flutes; it violently physically displaces the soft metal into a thread shape without creating a single chip. It is virtually unbreakable in soft metals and operates ten times faster than a milling routine.
Procurement teams auditing high-volume consumer electronics must ruthlessly enforce rigid tapping for standard M3 and M4 chassis mounting holes. If a factory attempts to interpolate fifty standard mounting holes per part, the inflated machine cycle time will instantly destroy the profitability of the mass production run.
How Does Chip Evacuation Prevent Catastrophic Scrap?

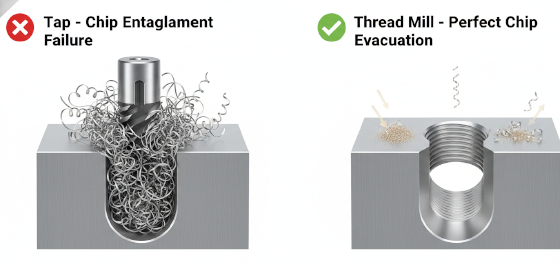

Why do taps snap in blind holes? Taps physically trap continuous, stringy metal ribbons deep inside the flutes. When these chips hit the bottom of a blind hole, they compress into a solid mass that violently binds and snaps the tool.
Helical milling completely eradicates this failure mode. Because the cutter is smaller than the hole, there is a massive physical gap allowing high-pressure coolant to easily flush debris outward. More importantly, the intermittent cutting action creates microscopic, powdery chips rather than long strings, ensuring the cavity remains perfectly clear during the entire machining cycle.
This superior evacuation allows machinists to thread all the way down to the absolute flat bottom of a blind cavity. A standard tap requires a deep, unthreaded "runout" section at the bottom for the chips to accumulate and the tapered tip to clear. Milling optimizes thin-walled geometries where engineers cannot afford to drill deeply.
What Are the True Cost Dynamics for CNC Threading?

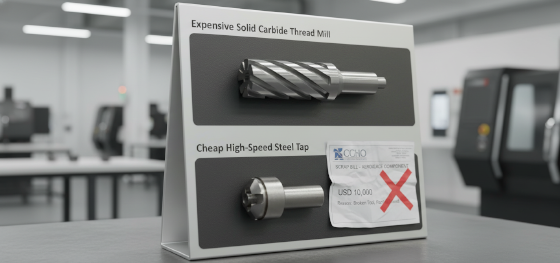

Are solid carbide thread mills a waste of budget compared to cheap HSS taps? Only if you evaluate tooling costs in a vacuum. A broken twenty-dollar tap that destroys a five-thousand-dollar engine block is the most expensive tool in your facility.
Purchasing a premium solid carbide milling cutter demands a significant upfront invoice, often exceeding three hundred dollars. However, that single tool can execute right-hand threads, left-hand threads, internal bores, and external shafts, drastically reducing the total number of specialized tools required in the machine carousel.
The true financial break-even calculation hinges entirely on material hardness and scrap risk. If you are blasting hundreds of holes in mild 1018 steel, stick to cheap machine taps. If you are carving a single, irreplaceable mold cavity out of hardened D2 tool steel, the astronomical cost of a ruined billet makes the expensive carbide cutter the only mathematically responsible choice.
How Does Jucheng Optimize Internal Threads in Shenzhen?
Can a facility balance both high-speed tapping and precision helical milling? Yes. Operating deep within the[2026] Shenzhen precision manufacturing hub, Jucheng assigns the exact threading protocol based exclusively on your CAD's metallurgical requirements.

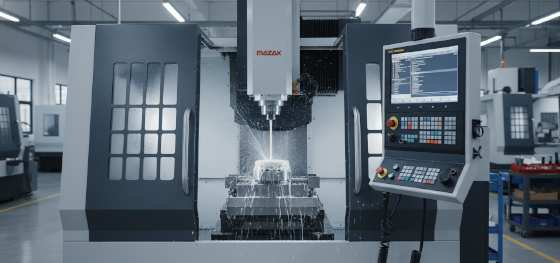

Navigating global hardware procurement requires an absolute rejection of one-size-fits-all manufacturing. We deploy high-torque 5-axis Mazak centers capable of extreme helical interpolation for your exotic aerospace alloys, while utilizing rapid-spindle drilling centers for your high-volume aluminum brackets. We eliminate tooling bottlenecks entirely under one 8000-square-meter roof.
Our engineering teams intervene heavily during the initial CAD review phase. Backed by uncompromising ISO9001:2015 and IATF16949 protocols, our Free DFM reviews identify high-risk blind holes before the billet enters the chuck. We dynamically shift your blueprint to the safest, most economical cutting strategy without enforcing MOQ restrictions.
What Are the Most Critical Thread Fabrication FAQs?
Resolving hardcore kinetic variables prevents devastating assembly failures when designing complex threaded profiles for precision industrial fabrication.
Can a thread mill fix a hole that was drilled too large?
No. The milling cutter only carves the thread grooves; it cannot replace missing material. If the pilot hole is machined oversized beyond the major diameter of the thread, the resulting female threads will be blunt, shallow, and will instantly strip out under minimal bolt torque. The pilot hole dimension remains absolute.
Does thread milling produce a stronger thread than tapping?
The ultimate tensile strength is virtually identical, but the thread quality is superior. Because milling generates zero axial tearing and leaves a highly polished, burnished surface finish, the resulting threads provide significantly smoother engagement and reduce the risk of galling when assembling stainless steel fasteners.
Can you thread mill a tapered pipe thread (NPT)?
Yes, and it is the preferred method for large NPT fittings. Tapping a tapered hole requires massive spindle horsepower because the entire length of the tap engages the metal simultaneously at the end of the stroke. Milling traces the taper dynamically using CNC commands, easily creating high-pressure fluid seals with minimal machine strain.
