Comprehensive Guide to Micrometer Types and Uses

Micrometers are indispensable precision measuring tools used across various industries, from manufacturing to engineering. Their ability to provide extremely accurate measurements—often down to one-thousandth of a millimeter or one-ten-thousandth of an inch—makes them a cornerstone of quality control and precise fabrication. Understanding the different types available is crucial for selecting the right tool for a specific application. This article delves into the common types of micrometer and their unique characteristics, ensuring you have the knowledge to make an informed choice.

content:

Understanding the Micrometer Screw Gauge

The Workhorse: Outside Micrometers

Measuring Internal Dimensions: Inside Micrometers

Look at All Types of Micrometer

Interpreting Micrometer Readings

The Meaning of μm

Understanding the Micrometer Screw Gauge

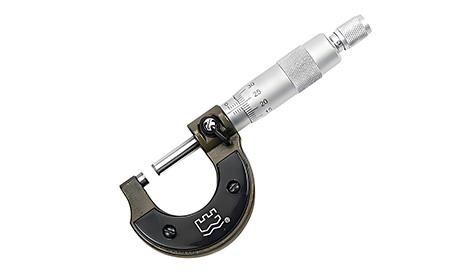

The term types of micrometer screw gauge often refers to the fundamental operating principle shared by most micrometers. At its heart, a micrometer uses a calibrated screw mechanism to amplify small movements, allowing for highly precise measurements. The most familiar design is the outside micrometer, but the screw gauge principle is universal. The primary micrometer parts include the frame, anvil, spindle, sleeve (or barrel), thimble, and ratchet stop. Turning the thimble advances the spindle towards the anvil, and the measurement is read by combining the scale on the sleeve with the scale on the thimble. This simple yet effective design is the foundation for all the specialized variants.

The Workhorse: Outside Micrometers

When people ask about types of outside micrometer, they are typically referring to the standard model designed to measure external dimensions like the outer diameter of a shaft or the thickness of a block. This is the most common type found in toolkits. However, even within this category, there is specialization. Standard outside micrometers have a limited measuring range, often just one inch or 25 millimeters. This leads to the need for an outside micrometer set, which is a collection of individual micrometers, each covering a specific range (e.g., 0-1", 1-2", 2-3", etc.), allowing for the measurement of a wide variety of part sizes. Other specialized outside micrometer types include blade micrometers for measuring grooves and hard-to-reach areas, and ball micrometers for measuring the thickness of curved surfaces like tubing walls.

Measuring Internal Dimensions: Inside Micrometers

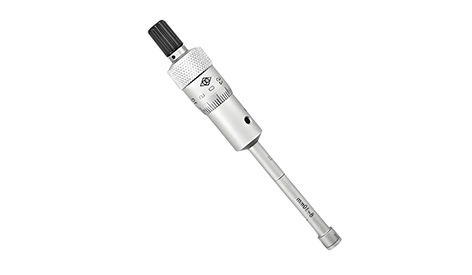

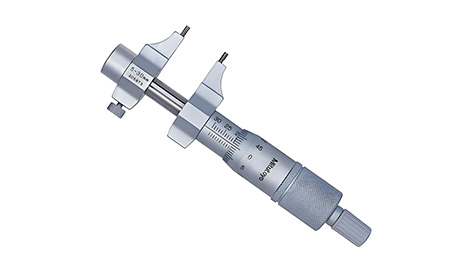

Conversely, types of inside micrometer are designed for measuring internal features, such as the diameter of a hole or the width of a slot. These tools function on the same screw principle but are configured differently. Common styles include caliper-type inside micrometers, which have two opposing measuring contacts and are used for smaller bores, and tube-type inside micrometers with extension rods for measuring deeper, larger diameters. Inside micrometers can be more challenging to use than their outside counterparts, as they require a feel for obtaining the true diameter and not just a chordal measurement.

Look at All Types of Micrometer

Beyond the common outside and inside models, the world of precision measurement includes a vast array of specialized tools. When considering all types of micrometer, the list expands significantly to include:

• Depth Micrometers: Used for measuring the depth of holes, slots, and steps. They consist of a base attached to a calibrated rod that extends into the feature being measured.

• Bench Micrometers: Mounted on a stand for extreme stability, these are used for laboratory-grade precision measurements and calibration of other gauges.

• Tube Micrometers: Featuring a cylindrical anvil, they are specifically designed to accurately measure the wall thickness of tubes and pipes.

• V-Anvil Micrometers: Used for measuring odd-fluted tools like taps and milling cutters, the V-shaped anvil helps center the tool for a true diameter reading.

• Digital Micrometers: While not a separate physical type, digital micrometers incorporate an electronic LCD display, simplifying micrometer readings and often allowing for output to data collection systems. They can be found in outside, inside, and depth styles.

Interpreting Micrometer Readings

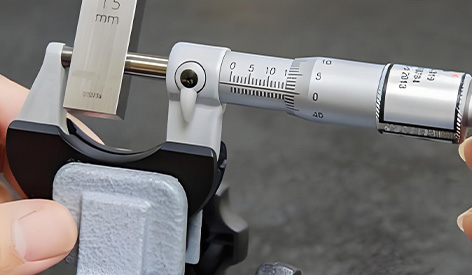

A common challenge for new users is accurately interpreting the measurement. Taking precise micrometer readings requires understanding the scales on the sleeve and thimble. The sleeve has a primary scale marked in inches or millimeters, and the thimble has a secondary scale that divides the primary units into smaller increments. For a standard imperial micrometer, the sleeve is graduated in .025-inch increments, and the thimble has 25 divisions, each representing .001 inch. The reading is the sum of the visible sleeve measurement and the thimble measurement aligned with the sleeve's datum line. Digital models eliminate this calculation, providing a direct digital readout, which reduces human error.

The Meaning of μm

In the context of precision measurement, understanding the μm meaning is critical. The symbol μm represents a micrometer, also known as a micron. It is a unit of length in the metric system equal to one-millionth of a meter (1 μm = 10⁻⁶ m) or one-thousandth of a millimeter. This level of precision is what high-quality micrometers are designed to achieve. When a specification calls for a tolerance of ±10 μm, it means the part must be manufactured within a variation of 0.010 millimeters, underscoring the need for reliable and accurate measuring tools.

From the basic outside micrometer to highly specialized designs for unique applications, the family of micrometer tools is diverse. Understanding the different types of micrometers available is the first step toward ensuring measurement accuracy and maintaining quality standards in any technical or industrial setting. Whether you need a full outside micrometer set for general machining tasks, an inside micrometer for bore measurements, or a digital model for ease of use, selecting the correct type is paramount. By mastering their operation and interpretation, you leverage one of the most fundamental and powerful tools in precision engineering.
