Material fidelity is the ultimate judge of engineering success. In the early stages of product development, the ability to hold a prototype that not only looks like a production part but behaves like one is the difference between a successful validation and a delayed launch. While most designers explore the initial "form and fit" through additive methods, functional testing requires a more sophisticated mechanical soul. This is the strategic domain of the urethane casting process. It is a technical bridge that allows for the creation of high-fidelity, production-grade components without the six-figure investment of a steel mold. By utilizing a flexible silicone tool and advanced two-part polymers, the vacuum casting process delivers parts that possess the exact Shore hardness, thermal stability, and chemical resistance of final injection-molded resins.
Jucheng Precision recognizes that a prototype is a technical contract. If your medical manifold leaks under pressure or your automotive light pipe lacks optical clarity, the data gathered from that test is worthless. We have engineered our facility to act as a center of "Molecular Mimicry," utilizing premium polyurethane systems from industry leaders like Hei-Cast and Axson. We don't just "pour plastic"; we engineer a chemical reaction that results in a solid, cross-linked polymer capable of surviving the brutal realities of the field. This guide is a 2000-word deep dive into the physics of thermoset bonds, the economic logic of low-pressure tooling, and why JUCHENG’s integrated approach to high-fidelity casting is the mandatory sanctuary for your most ambitious hardware designs.
Profitability in the R&D cycle is won by removing the "Tooling Debt" associated with high-pressure manufacturing. When you can produce fifty functional parts in a single week using production-grade materials, you unlock a level of market agility that traditional molding simply cannot match. Let us break down the mechanical and chemical pillars of industrial urethane solutions and see how technical foresight can lock the integrity of your next design into reality.
content:

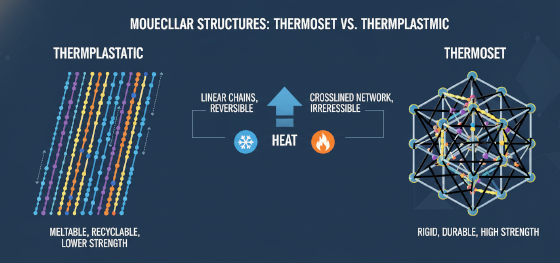

Thermoset Chemistry: The Physics of Cross-Linked Polymers
To master the urethane casting process, you must first acknowledge the fundamental divide between thermoplastics and thermosets. Traditional injection molding uses thermoplastics—plastic pellets that are melted, pushed into a die, and then cooled. This process is reversible; the part can be melted again. This thermal cycle introduces a massive amount of internal residual stress. As the plastic cools from the outside in, the chains shrink at different rates, leading to the warping and sink marks that plague large injection-molded parts.

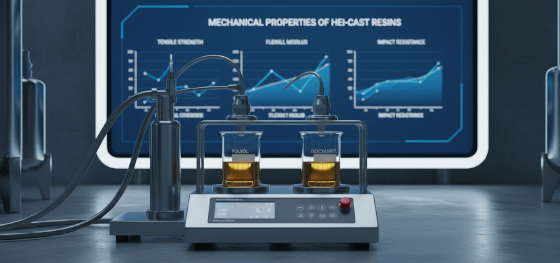

Thermoset polyurethanes used in casting operate on the logic of a chemical event. Instead of melting plastic, we mix two low-viscosity liquid components: Polyol and Isocyanate. This mixture is poured into the mold as a liquid, where it undergoes an exothermic reaction. Instead of forming simple linear chains, the molecules bond together in a 3D cross-linked network—similar to a biological web. This process happens at low pressure and low temperature, meaning the part is born in a state of physical relaxation. This "Covalent Sovereignty" is why cast parts exhibit virtually zero internal stress. They maintain their flatness and circularity for years, making them the superior choice for high-precision enclosures and internal mechanical frames. Once the part has cured, it is chemically permanent. It will not melt if exposed to heat in the field. This stability allows Jucheng Precision to provide parts that behave with the structural certainty of production plastics while bypassing the thermal hostility of the injection mold.

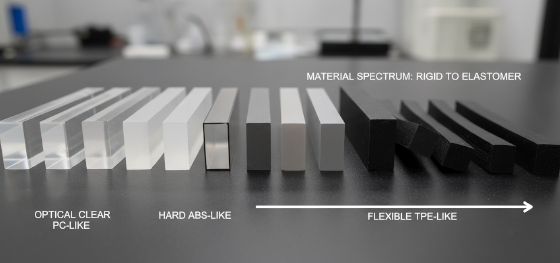

Material Mimicry: Decoding the Polyurethane Spectrum
The greatest technical asset of the urethane casting process is its ability to lie to the senses. It is the ultimate material chameleon. Because the chemistry happens in a liquid state, we can engineer the resin matrix to simulate the mechanical properties of almost any production polymer. At Jucheng Precision, our library of specialized resins is built on functional reality. We don't just provide "hard" or "soft" plastic; we provide engineered simulants that match your production bill of materials.
We utilize premium polyurethane systems like Hei-Cast 8150 to simulate the high impact strength and rigidity of ABS. If your design requires the transparency and heat deflection of Polycarbonate, we utilize **Axson PX 5212**. The spectrum extends into the realm of elastomers where we can achieve any Shore A hardness, from the squish of a Shore 30A silicone gel to the hard-rubber durability of a Shore 90A tire. We even offer specialized grades that are UL94 V-0 flame-retardant or medical-grade biocompatible. This level of mimicry ensures that your functional testing is valid; when you perform a drop test or a chemical resistance audit on a JUCHENG cast part, you are getting data that accurately predicts how your final injection-molded part will behave. We bridge the gap between "prototype" and "product," giving your engineers the freedom to validate designs with materials that possess the structural spine of real hardware.

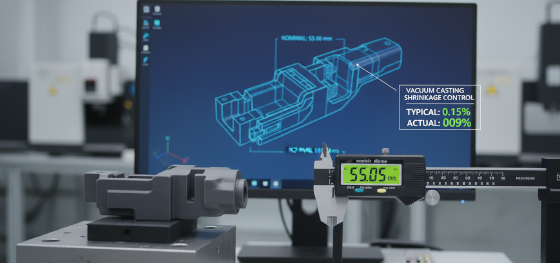

Dimensional Predictability: Managing the 0.15% Shrinkage Floor
Precision is a byproduct of anticipation. Every liquid resin shrinks as it transitions to a solid. In the urethane casting process, this shrinkage is typically around 0.15% to 0.5% depending on the specific resin. While this is significantly less than the 2% shrinkage found in some injection-molded materials like Nylon, it is still enough to ruin a tight-tolerance assembly if ignored. On a 500mm part, a 0.2% shrink results in a full 1mm drift. This is where most service bureaus fail—they simply copy the master pattern without doing the math.
Jucheng Precision eliminates this uncertainty through "Compensated Master Engineering." When we build your master pattern on our 5-axis CNC machines, we don't machine it to the final dimensions on your print. We utilize "Oversize Compensation," machining the master slightly larger to account for the exact shrinkage coefficient of your chosen resin and the silicone mold. This technical foresight ensures that after the part has cooled and cured, it "shrinks into" the center of your tolerance zone. We also manage the thermal profile of our curing ovens with digital rigor, preventing the non-linear shrinkage that occurs when parts cool too fast. By controlling the thermodynamics of the transition, we deliver cast components with a dimensional repeatability of +/- 0.1mm—a level of precision that allows for interlocking assemblies and press-fit bearings. We treat shrinkage not as a defect, but as a manufacturing variable that must be mastered to ensure your functional data is as precise as your digital intent.

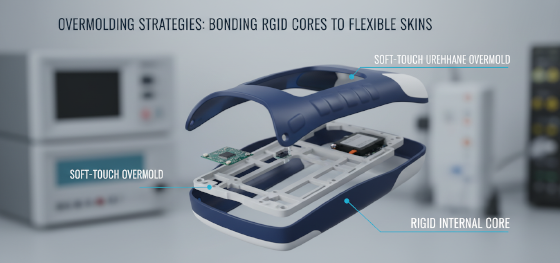

Overmolding Strategies: Bonding Rigid Cores to Flexible Skins
Modern product design rarely relies on a single texture. Consider the ergonomic requirements of a handheld medical scanner or the rugged grip of a high-performance power tool—these devices often feature a rigid internal chassis seamlessly integrated with a soft-touch elastomeric skin. Replicating this "multi-material" experience in the prototype phase is a significant technical hurdle that simple 3D printing often fails to resolve. The urethane casting process provides the most reliable solution for multi-shot simulation. Instead of relying on adhesives that can fail or peel, Jucheng Precision utilizes a "Two-Hit" casting sequence that creates a chemical bond between different durometers.
Executing a successful overmold begins with the timing of the cure. We first cast the rigid "B-side" or internal core using a high-modulus resin like Hei-Cast 8150. While this core is still in a semi-active chemical state, it is placed into a second, larger silicone mold. We then inject the flexible elastomer—often a Shore 40A to 60A resin—around the substrate. Because the molecules of both resins are still capable of cross-linking at the interface, the two materials effectively become one monolithic part. This eliminates the "Bond Line" vulnerability found in traditional assembly. By simulating the actual overmolding logic of mass production, we allow your design team to conduct real-world ergonomic audits and drop tests with 100% confidence. Whether you are testing the "click" of a button membrane or the shock-absorption of a protective bumper, JUCHENG’s multi-material casting ensures your tactile vision is backed by structural integrity.

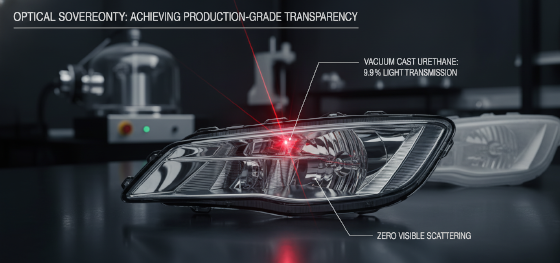

Optical Sovereignty: Achieving Glass-Like Transparency
Light transmission is the most unforgiving critic of the casting booth. In the sectors of automotive lighting and medical diagnostics, transparency is not a visual preference—it is a functional mandate. Standard additive methods often leave internal striations or microscopic voids that cloud the optical path, making light-bench testing impossible. The urethane casting process is the premier method for replicating the crystalline clarity of PMMA or Polycarbonate. By utilizing specialized clear resins from the Axson PX series, we produce lenses, light pipes, and transparent housings that offer light transmission rates exceeding 90%.

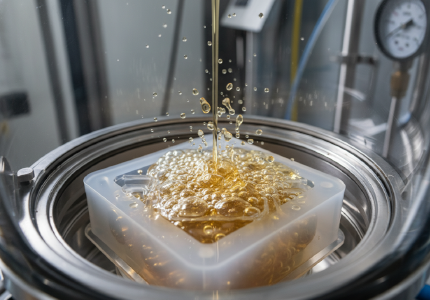

Achieving this "water-white" clarity requires a total evacuation of the atmosphere. Even a single microscopic air bubble trapped in a thick-walled lens will act as a prism, refracting light and ruining the photometric data. Jucheng Precision manages this through a multi-stage degassing protocol. We subject the clear resin to a deep vacuum both before and after the pour, ensuring that the liquid is perfectly homogeneous. We also pay close attention to the "Exothermic Peak." Clear resins generate significant heat as they cure; if the temperature rises too quickly, the part will turn yellow or develop internal stress fractures. We utilize staged cooling cycles in our stabilized ovens to manage this thermal energy, delivering parts that are optically indistinguishable from high-end injection-molded components. This optical sovereignty allows you to verify your "light signature" and beam patterns with 100% fidelity, accelerating your journey from the lab to the road.
Surface Realism: Professional Finishing and Aesthetics
Touch defines the user’s perception of value. If a prototype feels "plasticky" or has visible manufacturing artifacts, it can alienate stakeholders and lead to false negative feedback during focus groups. Vacuum casting process technology is unique because of its "Texture Fidelity." Because silicone is a flexible medium, it can capture every microscopic detail of the master pattern, including VDI textures, Mold-Tech grains, and even the "cool-to-the-touch" feel of a bead-blasted surface. At Jucheng Precision, we don't just ship raw casts; we deliver retail-ready hardware.
Our finishing laboratory is equipped to provide the final layer of realism your brand demands. We utilize professional automotive-grade painting booths to match any Pantone or RAL color with perfect accuracy. We can achieve a "Soft-Touch" rubberized finish that feels like premium leather, or a high-gloss "Piano Black" that is entirely free of dust particles. We also integrate the fine details that make a part feel authentic: silk-screening for interface labels, pad printing for logos, and laser marking for permanent safety warnings. For parts that require a metallic look, we utilize vacuum metallization or conductive coatings to simulate the weight and luster of chrome or brushed aluminum. This commitment to "Surface Realism" ensures that when your stakeholders hold a JUCHENG prototype, they aren't looking at a "3D model"—they are holding a physical clone of the final product. We remove the visual doubt from your design cycle, allowing you to move into production with absolute aesthetic certainty.
JUCHENG’s Standard: Validating the Functional Copy
Verification is the final act of manufacturing sovereignty. In the world of high-integrity medical and aerospace components, an unverified part is a liability. Jucheng Precision eliminates the risk of "Prototype Drift" by integrating our casting floor with our elite metrology department. We don't just "pour and ship"; we audit the integrity of the urethane casting process against your original digital STEP file. We understand that a part that looks perfect but measures 0.5mm out of spec is a failure that can halt an entire R&D program.

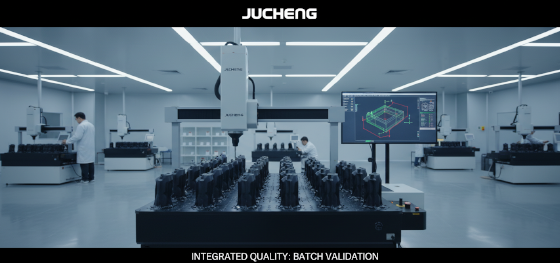

Our quality assurance protocol includes Coordinate Measuring Machine (CMM) audits for every batch of cast parts. We verify that the shrinkage compensation applied during the master-pattern phase has resulted in a final part that falls within your specified tolerance window. We also perform Shore hardness checks to confirm the resin has reached its full mechanical potential and perform adhesion tests on any overmolded features. For our automotive clients, we provide full material lot traceability, linking your parts to the specific batch of Hei-Cast or Axson resin used in the build. This technical transparency is why JUCHENG is the preferred partner for global hardware innovators. We bridge the gap between "concept" and "compliance," delivering functional copies that are documented for survival.
Technical Verdict: Why Urethane Casting Defines Your Success
Selecting the right manufacturing path is a move toward industrial pragmatism. In the volatile middle-ground between prototyping and mass production, the urethane casting process remains the most agile tool in your arsenal. It is the only process that allows you to test real-world material properties with production-grade aesthetics in a fraction of the time required for an injection mold. It is the "Safety Net" of the modern engineer, allowing for the discovery of assembly errors or material failures before the six-figure investment in hard-tooling is ever made.
At Jucheng Precision, we act as the bridge between your digital vision and a physical, market-ready reality. Our expertise in vacuum casting process optimization ensures that your prototypes are not just visual surrogates, but technical benchmarks. We invite you to challenge our engineering team with your most complex designs. Whether you are building a revolutionary medical fluid manifold or a high-performance automotive light guide, JUCHENG provides the chemical expertise and the manufacturing scale to deliver. We don't just pour resin; we manufacture the certainty that your designs are armored for the field. Don't let the high cost of tooling or the low fidelity of 3D printing stifle your engineering ambition. Experience the clarity and the capability that professional polyurethane replication can bring to your next breakthrough. Contact Jucheng Precision today and let our engineers help you build a bigger, better, and more profitable reality.
