What is CNC machining and the history of CNC machining?

CNC machining (Computer Numerical Control machining) is a manufacturing process that utilizes computerized systems to control the movement of tools and machines used to produce complex and precise parts from a variety of materials, such as metal, plastic, wood, and composites. This type of machining involves the use of specialized software programs to create design specifications, which are then translated into machine instructions that control the movements of cutting tools and other machinery.

The history of CNC machining dates back to the late 1940s and early 1950s, when the first computer-controlled machines were developed for manufacturing applications. The initial systems were designed to control the movement of simple machine tools, such as lathes and milling machines, and were used primarily in aerospace and military applications.

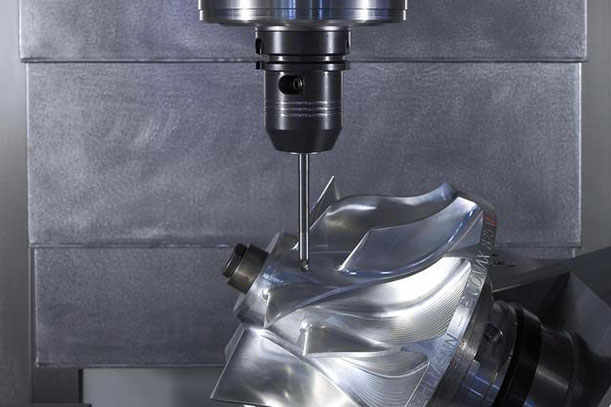

What-is-CNC-machining-and-the-history-of-CNC-machining

Types of CNC machinng

There are several types of CNC machining processes, including:

CNC milling

This process involves the use of a rotating cutting tool to remove material from a workpiece to produce a desired shape.

CNC turning

This process involves the use of a cutting tool to remove material from a rotating workpiece to produce a desired shape.

CNC drilling

This process involves the use of a rotating cutting tool to create holes in a workpiece.

CNC grinding

This process involves the use of a rotating abrasive wheel to remove material from a workpiece to produce a desired shape or finish.

CNC laser cutting

This process involves the use of a laser to cut or engrave a workpiece.

CNC plasma cutting

This process involves the use of a plasma torch to cut through electrically conductive materials.

CNC waterjet cutting

This process involves the use of a high-pressure stream of water to cut through a wide range of materials.

CNC electrical discharge machining (EDM)

This process involves the use of an electrical discharge to erode material from a workpiece to produce a desired shape.

Here are the benefits and limitations of 3-axis and 5-axis CNC machining

3-axis CNC machining

Benefits: Relatively simple to set up and operate. Can produce parts with good accuracy and surface finish. Suitable for parts with simple geometries.

Limitations: Cannot produce complex geometries or features that require undercutting or multiple angles. May require multiple setups for parts with complex geometries.

5-axis CNC machining

Benefits: Can produce parts with highly complex geometries and features, including those with undercutting and multiple angles. Can reduce the need for multiple setups, which can save time and reduce costs. Can produce parts with excellent accuracy and surface finish.

Limitations: More complex to set up and operate than 3-axis machines. May require more specialized equipment and expertise. Can be more expensive than 3-axis machines.

There are two types of 5-axis CNC machining:

❶ Indexed 5-axis CNC machining

Benefits: Can produce parts with features that do not align with one of the main axes quickly and with very high accuracy.

Limitations: Still limited in terms of producing complex geometries and features that require undercutting or multiple angles.

❷ Continuous 5-axis CNC machining

Benefits: Can produce parts with highly complex, 'organic' geometries and smooth contours. Can reduce the need for multiple setups, which can save time and reduce costs.

Limitations: More complex to set up and operate than 3-axis or indexed 5-axis machines. Can be significantly more expensive than 3-axis or indexed 5-axis machines.

Here are the benefits and limitations of 3-axis and 5-axis CNC machining

➀ CNC milling: Benefits: Produce parts with complex shapes and features, including those with 3D contours and irregular geometries. Can be used with a wide range of materials, including metals, plastics, and composites. Limitations: May require multiple setups and tool changes, which can increase machining time and costs.

➁ CNC turning: Benefits: Produce parts with rotational symmetry, such as cylinders, cones, and spheres, quickly and efficiently. Can be used with a wide range of materials. Limitations: Limited to producing parts with rotational symmetry. Cannot produce complex shapes or features.

➂ CNC drilling: Benefits: Can create holes quickly and efficiently. Limitations: Limited to creating holes. Cannot produce complex shapes or features.

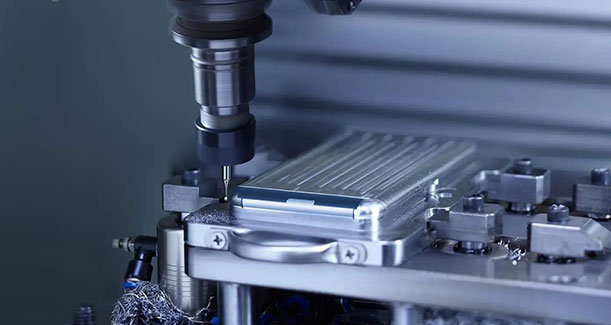

Here-are-the-benefits-and-limitations-of-3-axis-and-5-axis-CNC-machining-图1

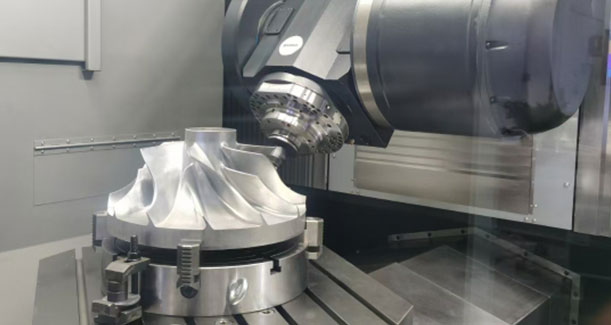

Here-are-the-benefits-and-limitations-of-3-axis-and-5-axis-CNC-machining

➃ CNC grinding: Benefits: Produce precise shapes and surface finishes. Can be used with a wide range of materials, including hard and brittle materials. Limitations: Limited to producing flat or curved surfaces. May require specialized equipment.

➄ CNC electrical discharge machining (EDM): Benefits: Can produce parts with high accuracy and precision, including those with fine details and tight tolerances. Limitations: Limited to producing electrically conductive materials. May require specialized equipment and expertise. May produce a rough surface finish that requires additional finishing.
