Reviewing a gorgeous digital rendering on a computer screen gives procurement executives a dangerously false sense of security. Handing that unverified, conceptually flawed geometry directly to an injection molding facility usually triggers a massive financial disaster. Discovering impossible undercuts or a severe lack of draft angles during the hard tooling phase paralyzes your entire operational cash flow instantly.
Securing an industrial prototype maker completely neutralizes this catastrophic risk before you ever authorize purchasing expensive tool steel. Engineers must ruthlessly translate cosmetic aesthetics into functional, machinable physical reality. Bypassing this critical validation step guarantees your factory assembly line will eventually stall due to severe mating component failures.
Managing rapid design pivots dictates exactly how fast your new product actually reaches the premium retail shelf. Executing controlled iterative hardware scaling allows mechanical teams to physically test multiple material variations within a single week. Procuring heavily validated functional units prevents ambitious hardware startups from burning millions on unproven, physically impossible concepts.
Operating deep inside the Shenzhen precision manufacturing hub gives our engineering team unparalleled visibility into global supply chain pitfalls. We force conceptual designers to confront the brutal physical constraints of subtractive milling and molten polymer flow daily. Stripping away the digital geometric illusion aggressively protects your operational budget and ensures absolute manufacturing success.
content:
Escaping the CAD Geometric Illusion
Dominating Iterative Hardware Scaling Phases
Crushing NRE Tooling Amortization Early
JUCHENG Hub: The Ultimate Validation Engine
Frequently Asked Questions: Prototyping Reality
Escaping the CAD Geometric Illusion
Will a perfectly drawn digital right angle actually machine properly on a CNC mill?

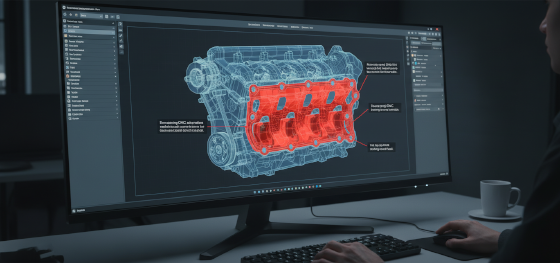

Mathematically impossible. Round spinning cutting tools physically cannot carve infinitely sharp internal square corners, forcing designers to intelligently implement dog-bone reliefs to allow mating parts to fit.
Drafting cosmetic product shells without considering proper design for manufacturability routinely destroys tight launch schedules. Junior designers frequently model deep, narrow internal pockets that standard endmills cannot physically reach without experiencing terrifying tool deflection. Machinists violently push back on these impossible geometries, resulting in endless, expensive email chains and severely blown deadlines.
Ignorance regarding injection molding draft angles creates catastrophic downstream factory nightmares. Modeling vertical plastic walls with zero-degree draft guarantees the hardened polymer will permanently shrink and seize onto the steel core. Factory technicians must literally bash the stuck plastic out with hammers, completely destroying the cosmetic finish and halting the entire production line.

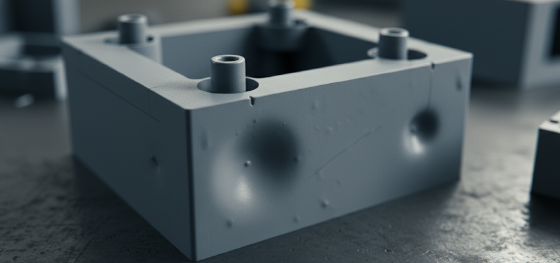

Relying on veteran manufacturing partners ensures these physical impossibilities are aggressively eradicated before the spindle ever turns. We execute merciless design for manufacturability software audits to instantly highlight problematic undercuts, excessive wall thicknesses, and impossible corner radii. Addressing these thermodynamic constraints early saves venture-backed startups millions in wasted iteration cycles.
Dominating Iterative Hardware Scaling Phases
Is it financially wise to order a steel injection mold immediately after approving the first visual rendering?
Absolutely not. Bypassing physical beta testing practically guarantees your expensive steel tool will require massive, costly modifications the moment you discover an unexpected assembly flaw.
Navigating the brutal transition from singular visual models to functional beta units requires masterful iterative hardware scaling. Executives demand fifty identical, fully functional automotive brackets to run destructive physical testing. Relying on basic desktop 3D printing yields fragile, brittle components that shatter instantly under kinetic stress, delivering completely useless test data.
Scaling intelligently forces procurement teams to seamlessly bridge the gap using advanced polyurethane vacuum casting or rapid CNC aluminum milling. These bridge technologies deliver the exact mechanical strength and retail aesthetics required for legitimate field testing. Catching a severe structural flaw during this specific phase costs pennies compared to fixing a hardened steel tool.
Jumping blindly into mass production creates a terrifying financial vacuum. Proper iterative hardware scaling mathematically ensures that every single component snaps together flawlessly before placing the final high-volume purchase order. Executives retain total cash flow control, releasing budget strictly when physical testing proves the geometry is completely ready for the global market.
| Hardware Scaling Phase | Ideal Manufacturing Process | Primary Engineering Goal | Financial Risk Profile |

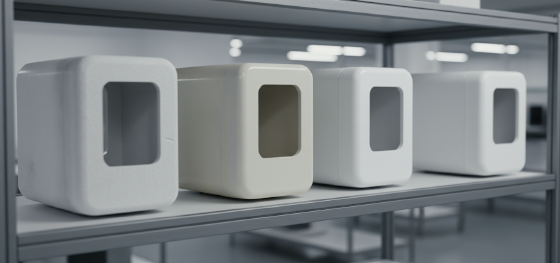

| Alpha Visual Concept (1-5 units) | SLA Resin / Polyjet Printing | Verify ergonomic feel and basic form | Extremely Low |
| Beta Functional Testing (20-100 units) | Vacuum Casting / Rapid CNC | Execute physical drop and thermal tests | Moderate (Critical validation step) |
| Pilot Assembly Run (500-1000 units) | Soft Aluminum Rapid Tooling | Finalize assembly line procedures | High (Changes become expensive) |
| Global Mass Production (10,000+ units) | Hardened P20 Steel Injection Molds | Maximize speed and minimize unit cost | Extreme (Geometry is permanently locked) |
Crushing NRE Tooling Amortization Early
Does modifying a physical CNC prototype cost as much as modifying a hard steel mold?
Never. Updating a CNC milled component simply requires rewriting a few lines of digital code, whereas altering an injection mold demands slow, incredibly expensive electrical discharge machining (EDM) or laser welding.
Slashing your NRE tooling amortization relies entirely on perfecting the geometry before committing to heavy steel. Procurement teams often panic when quoted eighty thousand dollars for a complex medical housing mold. If that casing fails waterproofing tests because of a badly designed O-ring groove, the entire eighty-thousand-dollar investment becomes completely worthless scrap metal.
Financial survivability dictates using advanced CNC turning and milling to produce the first hundred functional units. Absorbing a slightly higher unit price during this agile phase completely protects the massive capital expenditure reserved for volume manufacturing. Mechanical engineers iteratively adjust the precise O-ring groove depth on the CNC until it seals perfectly every single time.
Calculating true NRE tooling amortization requires factoring in the devastating cost of potential failure. Executing uncompromising design for manufacturability audits ensures your final steel tool performs flawlessly on the very first shot. We actively prevent your corporate treasury from hemorrhaging cash on endless tooling modification cycles.
JUCHENG Hub: The Ultimate Validation Engine
Why do elite hardware startups prefer partnering with hybrid factories instead of localized print farms?

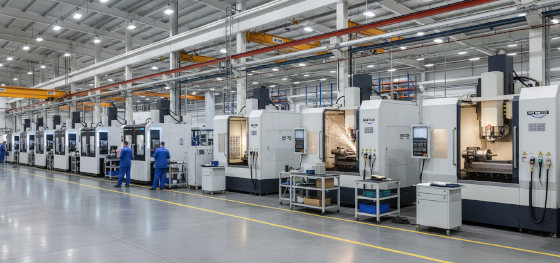

Hybrid facilities house additive, subtractive, and molding technologies under one unified roof, allowing engineers to transition seamlessly between phases without risking intellectual property leaks to third-party vendors.
Jucheng Precision operates as the ultimate validation engine for aggressive engineering programs. Submitting your conceptual CAD file to our Shenzhen facility immediately triggers a hardcore mechanical audit. We do not blindly print doomed geometries; we actively interrogate the physics of your design to guarantee downstream assembly success.
Centralizing your entire product lifecycle protects tight corporate deadlines. Transitioning your validated design from high-resolution SLA resin prints directly into our rapid aluminum tooling division requires zero logistical friction. We maintain absolute dimensional accountability from your very first visual model through your massive global launch.
Frequently Asked Questions: Prototyping Reality
Can a printed plastic prototype accurately predict how an injection molded part will warp?
No, the thermodynamic physics are entirely different. Layered extrusion cools incrementally, whereas molten injection molding cools simultaneously inside a pressurized cavity. Predicting true warpage requires specialized mold flow analysis software to simulate the exact resin flow dynamics accurately.
Why does a perfectly flat 3D printed panel suddenly bow after being painted?
Automotive paints and industrial solvents aggressively attack the microscopic layer lines of basic printed plastics. The harsh chemicals seep deep into the porous structure, causing the top layer to expand violently while the bottom layer remains rigid, resulting in a physically bowed panel.
Is it possible to directly machine extremely thin flexible rubber prototypes?
Subtractive machining soft elastomers proves incredibly difficult because the spinning cutter physically pushes and deflects the rubber away rather than cleanly shearing it. Producing complex soft parts effectively dictates utilizing advanced vacuum casting or specialized direct-drive TPU printing.
