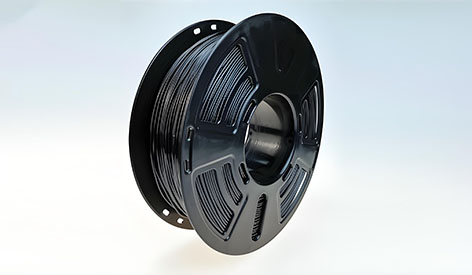

ABS and Nylon (PA) are cornerstones of engineering plastics, foundational materials for everything from automotive components to consumer electronic housings. While many designers start with these materials in filament form for desktop FDM 3D Printing, the path to a structurally sound, production-ready part requires a strategic upgrade to industrial-grade processes like high-precision CNC Machining, advanced powder-bed fusion, or Injection Molding.
The key challenge for B2B buyers is knowing when and how to transition. This guide translates the common limitations of filament-based printing (such as low strength and warping) into the precise solutions offered by professional manufacturing, ensuring your ABS and Nylon prototypes not only look right but perform under real-world stress.
content:
FDM Limitations: Bridging the Gap Between Hobbyist and Industrial Strength
CNC Machining: The Ultimate Prototype for Accuracy and Stability
Industrial Additive Upgrade: Harnessing SLS and MJF Nylon
Injection Molding: The Final Stage for Cost and Finish Excellence
FDM Limitations: Bridging the Gap Between Hobbyist and Industrial Strength
While FDM (Fused Deposition Modeling) with ABS and Nylon filament is excellent for initial form and fit checks, its layer-by-layer nature inherently introduces weaknesses that make it unsuitable for most functional components:
Anisotropy (Directional Weakness): The weakest point of an FDM part is always the bond between layers. This means the part's strength varies significantly depending on the direction of the applied load, risking catastrophic failure under stress.

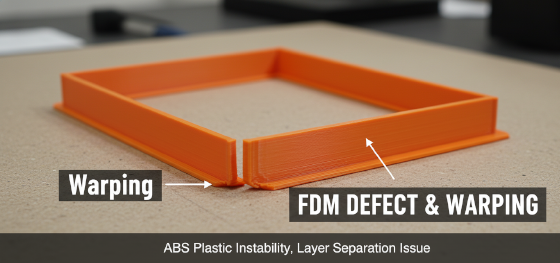

Warping and Dimensional Instability: ABS and Nylon are high-temperature plastics. As they cool on the printer bed, stress builds up, causing the lower layers to pull inward (warping) and leading to dimensional errors that make components fail assembly fit tests.
Surface Finish: FDM's visible layer lines require significant sanding or chemical smoothing for a cosmetic finish, adding labor cost and often sacrificing dimensional accuracy.

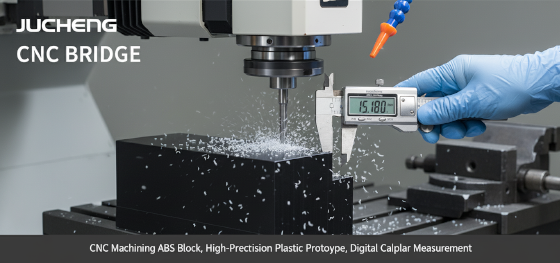

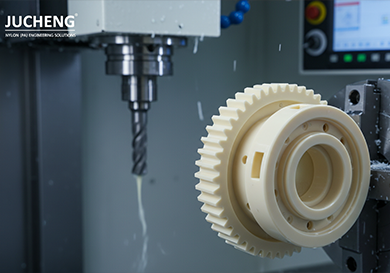

CNC Machining: The Ultimate Prototype for Accuracy and Stability
When high-precision fit, feature alignment, and true material consistency are required, CNC Machining of solid ABS or Nylon stock is the mandatory prototype method:
Isotropic Strength: Since the part is cut from a solid block of plastic, it has the same strength in all directions (isotropic), providing the highest fidelity material testing environment that matches the final injection molded part.
Dimensional Guarantee: CNC Machining provides the tightest possible dimensional tolerances, which is crucial for mating parts, tight-fit enclosures, and testing the final design before committing to expensive tooling.
Expertise Required: Machining Nylon requires specialized thermal management (e.g., air cooling) and anti-warpage clamping techniques to prevent the material from melting or distorting during the cutting process.

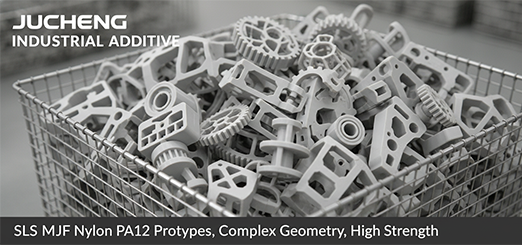

Industrial Additive Upgrade: Harnessing SLS and MJF Nylon
For complex Nylon parts that cannot be CNC machined cost-effectively and still need high strength, industrial powder-bed fusion offers the necessary upgrade over FDM:
SLS (Selective Laser Sintering): Produces Nylon parts (often PA 11 or PA 12) with near-isotropic mechanical properties and excellent surface quality, suitable for structural prototyping and end-use components in Aviation Aerospace.
MJF (Multi Jet Fusion): Produces the highest density and fastest throughput for Nylon (PA 12), with excellent chemical resistance, making it ideal for low-volume industrial prototypes and snap-fit assemblies.
Surface Finish: Both SLS and MJF parts can be chemically smoothed or vapor polished to achieve an aesthetic quality comparable to Injection Molding, making them excellent candidates for final prototypes.

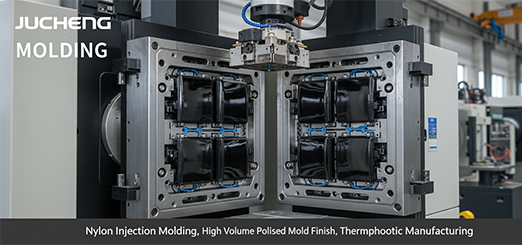

Injection Molding: The Final Stage for Cost and Finish Excellence
When production volumes scale beyond a few hundred parts, Injection Molding of ABS or Nylon is the only viable, cost-effective option. This is the ultimate goal of the prototype upgrade path:
Cost Efficiency: While requiring a significant upfront investment in tooling, Injection Molding drives the per-part cost down dramatically for high-volume production.
Finish Quality: Injection Molding delivers the highest possible surface quality, crucial for cosmetic parts and functional components requiring minimal friction, such as gears and wear pads.

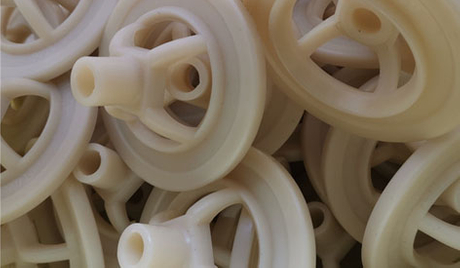

Material Diversity: Injection Molding allows the use of complex variants like glass-filled Nylon (PA+GF30), which provides extreme strength for critical structural parts.

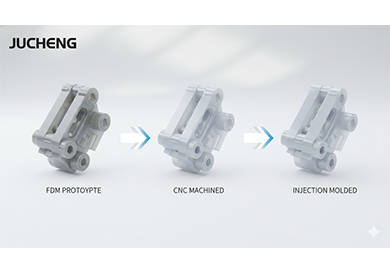

The journey from an FDM filament prototype to a high-volume part requires a specialized manufacturing partner. Jucheng Precision Technology offers the full continuum of services—from high-precision CNC Machining of solid ABS/Nylon blocks to industrial SLS/MJF and certified Injection Molding—ensuring your plastic components succeed at every stage of the product lifecycle.
Master your ABS and Nylon production path. Contact us today to discuss the optimal manufacturing strategy for your functional plastic parts.
