Ceramic Processing vs CNC Metals for High-Temp Parts

The agonizing, high-pitched screech of a diamond grinding wheel violently fighting against fully sintered alumina is a sound that translates directly into burning capital. Last month, I watched a junior programmer attempt to run a standard carbide end mill into a hardened zirconia block. Within three seconds, a two-hundred-dollar cutting tool vaporized into grey dust. Technical ceramics are not metals; they do not bend, yield, or shear. They ruthlessly destroy standard machining equipment. Mastering advanced Ceramic Processing requires decoupling your brain entirely from traditional metallurgical physics.

Procurement teams face an extreme financial crossroads when specifying non-metallic super-materials. You must navigate the fragile, chalk-like "green" state before the kiln, versus the impenetrable, diamond-hard ceramic state after thermal sintering. Milling the material while soft drastically slashes your non-recurring engineering (NRE) costs, but subjects your geometry to terrifying, volumetric shrinkage limits. Waiting to machine the material until after it hardens guarantees flawless aerospace tolerances, but demands astronomical hourly machine rates.

Evaluating this specific thermal and kinetic matrix separates amateur shops from elite fabrication hubs. Engineers must brutally analyze brittle fracture risks, diamond tooling degradation, and high-temperature geometric distortion. Surviving [2026] heavy industrial scaling demands matching the exact crystalline state of the ceramic directly to your budget constraints.

content:

Green Machining vs Hard Grinding: How Do Costs Compare?
   When Should You Specify Technical Ceramics Over Metals?
   When MUST You Avoid Ceramics in Mechanical Assemblies?
   Does Sintering Shrinkage Destroy CNC Tolerances?
   What Are the True Financial Costs of Diamond Tooling?
   How Does Jucheng Optimize Ceramic Fabrication in Shenzhen?
   What Are the Most Critical Technical Ceramic FAQs?

Green Machining vs Hard Grinding: How Do Costs Compare?

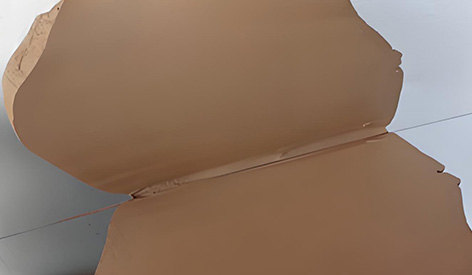

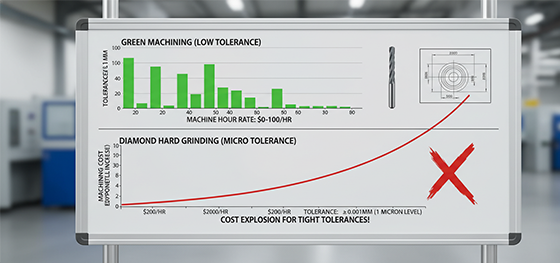

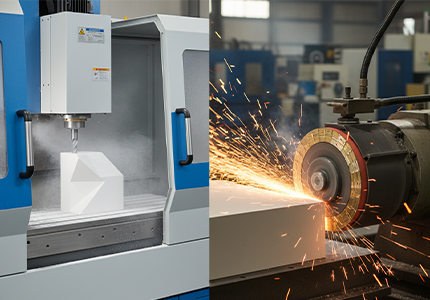

Is it cheaper to CNC mill ceramics before or after they are fired? Machining the pre-sintered "green" or "bisque" state costs drastically less because the material feels like hard chalk, allowing high-speed milling with standard carbide tools, whereas sintered ceramics mandate excruciatingly slow diamond abrasive grinding.

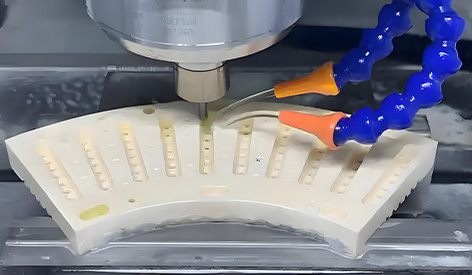

Green machining represents the economic savior of technical ceramic manufacturing. Before entering the 1500°C kiln, pressed ceramic powders are held together merely by organic polymer binders. A standard 5-axis CNC mill can effortlessly carve complex internal cooling channels, deep pockets, and fine threads into this chalky matrix. The material removal rate rivals that of cutting soft plastic, keeping machine hourly rates aggressively low.

However, if your blueprint demands an absolute flat sealing surface or an ISO H7 bearing press-fit, green machining fails. The part shrinks violently during the firing process. To hit micron-level aerospace tolerances, machinists must intentionally oversize the green part, fire it to maximum hardness, and then perform hard grinding. This secondary operation utilizes custom resin-bonded diamond wheels taking microscopic 0.002mm passes, skyrocketing the manufacturing cost exponentially.

When Should You Specify Technical Ceramics Over Metals?

Do ceramics actually outperform titanium and superalloys? Yes, exclusively in environments demanding extreme high-temperature survival, absolute electrical insulation, and immunity to caustic chemical erosion where any known metal would melt or dissolve instantly.

Semiconductor manufacturing actively weaponizes alumina (Al2O3) and silicon carbide (SiC). When processing silicon wafers inside an aggressive plasma vacuum chamber, standard stainless steel instantly sheds microscopic metallic ions, fatally contaminating the microchips. Technical ceramics remain entirely inert, surviving relentless bombardment by fluorinated gases without degrading or releasing a single atom of contamination.

Furthermore, aerospace engineers mandate zirconia for thermal standoff isolators. If a jet engine exhaust nozzle reaches 1200°C, the mounting bolts will conduct that heat directly into the delicate avionics bay. A precision-machined ceramic spacer entirely halts that thermal transfer. It acts as an impenetrable firewall, refusing to conduct heat or electricity while maintaining immense compressive load-bearing capabilities.

When MUST You Avoid Ceramics in Mechanical Assemblies?

Can a ceramic component handle extreme bending or pulling forces? Absolutely not. While ceramics possess mind-bending compressive strength, they exhibit zero ductility and will shatter instantly under severe tensile loads or kinetic shock.

Designing a ceramic structural beam or a cantilevered bracket guarantees catastrophic failure. Metals yield before they break; if you overload an aluminum bracket, it bends, warning you of the failure. Ceramics lack a plastic deformation zone entirely. If a technician accidentally drops a heavy steel wrench onto a $5,000 sintered alumina flange, the ceramic violently detonates into razor-sharp shrapnel.

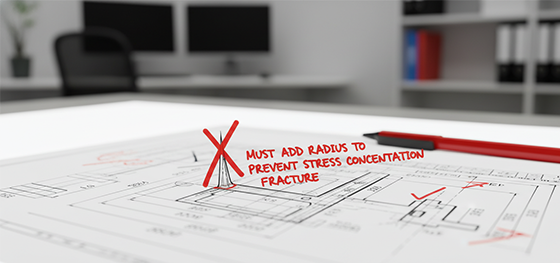

You must ruthlessly eliminate sharp internal 90-degree corners from your CAD blueprints. Because the material cannot flex to distribute stress, kinetic vibration concentrates massively at any sharp vertex. Engineers must proactively program generous internal radiuses to physically prevent stress-concentration fractures from splitting the assembly apart during operation.

Does Sintering Shrinkage Destroy CNC Tolerances?

Why do perfectly machined green parts measure undersized after the kiln? As the organic polymer binders burn off at 1500°C, the ceramic particles physically pull together and fuse, causing the entire volumetric geometry to shrink violently by up to twenty percent.

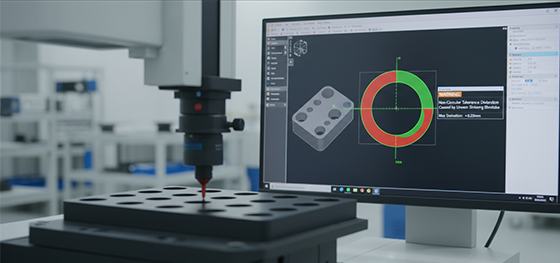

This massive thermal contraction is the ultimate nightmare for procurement managers. A CNC operator can machine a perfect 100mm circular bore into a green billet. However, during sintering, gravity and uneven part thickness cause the material to shrink asymmetrically. That perfect circle emerges from the kiln as an unpredictable, 80mm warped oval.

Mathematical compensation algorithms within CAM software attempt to predict this volumetric collapse, but they cannot defeat physics entirely. To survive this phenomenon, designers must artificially loosen all non-critical tolerances to +/- 1.5%. Any specific mating surface demanding a strict interference fit must be left intentionally oversized during the green state, forcing the client to pay for secondary diamond hard-grinding to clean up the thermal distortion.

What Are the True Financial Costs of Diamond Tooling?

Is grinding sintered ceramics really that much more expensive than milling steel? Astronomically so. Because the substrate is harder than the cutting tool, standard machining principles invert, demanding heavily degraded feed rates and extremely expensive custom abrasive wheels.

You cannot "cut" a fully sintered silicon carbide block; you can only scratch it away at a microscopic level. Standard CNC mills lack the rigidity and spindle RPM required to drive small diamond burs effectively. We must utilize specialized ultrasonic machining centers that pulse the diamond tool at 20,000 Hertz, physically hammering the ceramic dust away while rotating.

Consumable costs annihilate poorly planned budgets. A single custom-profiled resin-bonded diamond wheel can cost thousands of dollars and wear out rapidly after processing a single batch of complex aerospace insulators. If your blueprint demands a threaded hole inside a sintered ceramic block, the grueling process of helical diamond thread-milling will multiply your per-unit cost by a factor of ten.

How Does Jucheng Optimize Ceramic Fabrication in Shenzhen?

Can a single manufacturing hub execute both fragile green milling and brutal hard grinding? Yes. Operating deep within the [2026] Shenzhen precision manufacturing hub, Jucheng bridges the entire thermal lifecycle of advanced technical ceramics under one roof.

Navigating global hardware procurement demands an absolute elimination of disconnected supply chains. Shipping fragile green-machined billets to a separate thermal treatment vendor invites catastrophic handling damage. We centralize aggressive 5-axis green milling, high-temperature sintering, and ultrasonic diamond grinding to completely lock down your tolerance matrix.

Our senior engineers intervene heavily during the initial CAD phase. Backed by strict ISO9001:2015 protocols, our Free DFM reviews identify impossible thermal shrinkage vectors before the spindle turns. We proactively downgrade non-critical dimensions to green-state finishes to brutally slash your machining costs. We engineer ceramic survival without enforcing MOQ restrictions.

What Are the Most Critical Technical Ceramic FAQs?

Resolving hardcore crystalline and kinetic vulnerabilities prevents devastating mechanical failures during the extreme deployment of custom non-metallic hardware.

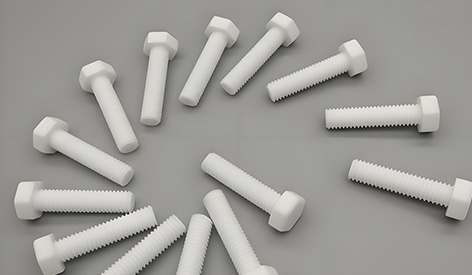

Can you tap threads into a ceramic part like you do with aluminum?
   In the soft green state, yes, you can easily tap threads. However, those threads will shrink unpredictably by 20% in the kiln, making them useless for standard metal bolts. To achieve a functional thread, engineers must aggressively oversize the green thread, or install metal helical inserts using high-temperature epoxies after the ceramic is fully fired.

What happens if the ceramic part is heated unevenly during service?
   Thermal shock destroys ceramics. If you blast one side of an alumina plate with a blowtorch while the other side sits on a block of ice, the uneven thermal expansion generates massive internal shear stress. Because the material possesses zero ductility, it cannot bend to relieve the stress; it will violently crack and split down the middle.

Why is Macor often specified as an alternative to Alumina?
   Macor is a proprietary machinable glass-ceramic that completely bypasses the green-to-sintered shrinkage nightmare. It comes in fully hardened billets but features a unique microscopic mica structure that arrests fractures. Machinists can cut it flawlessly using standard high-speed steel (HSS) tools, holding tight tolerances instantly without requiring secondary kiln firing or expensive diamond grinding.
