CNC turning machines are a cornerstone of modern manufacturing, enabling the precise and efficient production of cylindrical parts. These computer-controlled systems have revolutionized the machining industry by automating the turning process, where a cutting tool removes material from a rotating workpiece. The heart of their operation lies in programmed instructions (G-code) that dictate every movement, ensuring unparalleled repeatability and accuracy for complex geometries. From the aerospace and automotive sectors to medical device manufacturing, CNC lathes are indispensable for creating shafts, bolts, pulleys, and a vast array of other critical components with tight tolerances and superior surface finishes.

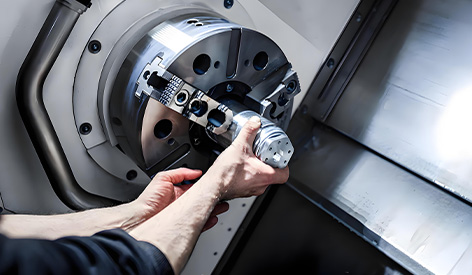

Understanding the CNC turning machine parts is essential to grasp its functionality. The major components include the headstock, which houses the main spindle and drive motor to rotate the workpiece. The chuck, mounted on the spindle, grips the raw material. Opposite the headstock is the tailstock, which provides lateral support for longer workpieces. The tool turret, a critical multi-station indexer, holds various cutting tools and can be programmed to automatically position the correct tool for each operation. The bed is the robust base that supports all these components, while the guideways allow the turret and tailstock to move precisely along the axes. Finally, the control unit is the computer that interprets the design program and executes the machining commands, coordinating all movements.
Leading Brands and Builders
The market for CNC turning machine manufacturers is diverse, ranging from industry giants to specialized builders. Globally recognized leaders like DMG MORI, Okuma, and Haas Automation are renowned for their high-performance, reliable machines that serve a wide range of industrial applications. European manufacturers such as INDEX Group and EMCO offer precision-engineered solutions, often focusing on complex multi-tasking turn-mill centers. Japanese brands like Mazak and Tsugami are celebrated for their innovation and durability. Meanwhile, a growing number of competitive CNC turning machine manufacturers from China and Taiwan, including Hardinge and Victor Taichung, provide cost-effective options without significant compromises on quality, catering to a broad spectrum of machining needs and budgets.
Investment and Cost Considerations
The CNC turning machine price is a significant variable, influenced by a multitude of factors. A basic 2-axis lathe from a value-oriented manufacturer can start from approximately $50,000. However, prices can escalate rapidly to $300,000 or more for advanced models. This wide range depends on the machine’s size (swing over bed and distance between centers), power, rotational speed (RPM), and the sophistication of its control system (e.g., Fanuc, Siemens). Additional features like live tooling for milling operations, Y-axis capability, secondary spindles, and automatic bar feeders contribute substantially to the final cost. It is crucial for buyers to perform a total cost of ownership analysis, weighing the initial CNC turning machine price against long-term productivity gains, precision, and reliability.
The Standard CNC Turning Lathe

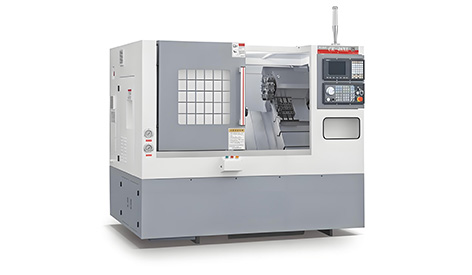

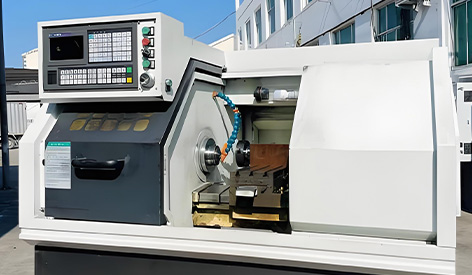

The term CNC turning lathe machine is often used interchangeably with a standard CNC turning center. These machines are primarily designed for classic turning operations such as facing, boring, grooving, and threading. A typical 2-axis CNC turning lathe machine operates with the workpiece rotating in the spindle and a stationary tool turret moving along the Z-axis (lengthwise) and X-axis (inward and outward). They are the workhorses of machine shops, ideal for high-volume production of rotationally symmetric parts. Their simplicity makes them robust, easier to program, and a perfect entry-point for shops looking to automate their turning processes and improve consistency over manual lathes.
The Power of Multi-Tasking: Turn-Mill Centers

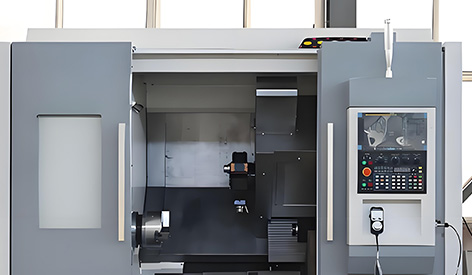

A CNC turning milling machine, more accurately called a mill-turn or turn-mill center, represents a significant evolutionary step in machining technology. This hybrid system integrates the capabilities of a CNC lathe and a CNC milling machine into a single, highly versatile platform. Equipped with live (rotating) tools and often a C-axis on the main spindle, a CNC turning milling machine can not only perform turning operations but also drill off-center holes, mill flats, cut keyways, and machine complex contours—all in a single setup. This eliminates the need to transfer a part between multiple machines, drastically reducing cycle times, minimizing handling errors, and improving overall positional accuracy.
Understanding the Turning Center Terminology
The phrase CNC turning centre machine is essentially synonymous with a CNC turning machine or lathe. The term "center" implies a level of completeness and automation that distinguishes it from basic or manual lathes. A modern CNC turning centre machine is typically a self-contained unit with an automated tool changer (the turret), a fully enclosed guarding system with coolant management, and a sophisticated CNC control. It is designed for uninterrupted production with minimal operator intervention. This terminology is widely used in Europe and Asia and is often associated with machines that have advanced software features for optimized production workflows.
Vertical Configuration for Large Parts

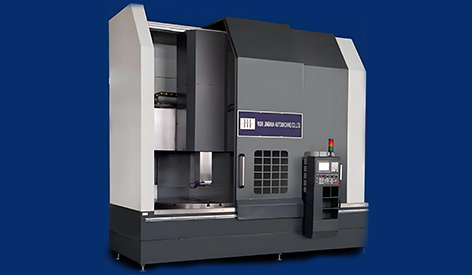

A CNC vertical turning lathe machine, or VTL (Vertical Turret Lathe), reorients the traditional turning process. Instead of the workpiece rotating horizontally, it is mounted on a horizontal chuck that rotates on a vertical plane. The cutting tools are positioned from the side and above. This configuration is exceptionally advantageous for machining very large, heavy, and bulky components—such as turbine rotors, large gears, or immense rings—because the weight of the part is supported by the massive horizontal table, eliminating issues with sagging. Gravity works with the setup, ensuring secure clamping and stability, which is crucial for achieving precision on massive workpieces.
The world of CNC turning is diverse and technologically advanced, offering a machine configuration for virtually every manufacturing requirement. From the foundational 2-axis horizontal lathe to the sophisticated multi-tasking turn-mill centers and powerful vertical turning lathes, these machines form the backbone of discrete part production. Understanding the key components, the landscape of manufacturers, and the total investment involved is critical for making an informed decision. Whether opting for a new machine from a leading builder or a carefully vetted used model, implementing CNC turning technology is a proven path toward enhanced precision, efficiency, and competitiveness in the global manufacturing arena.
