In the realm of precision manufacturing, where conventional cutting tools meet their limitations, Electrical Discharge Machining (EDM) stands as a pillar of innovation. This non-traditional machining process has revolutionized the way hard, conductive materials are shaped, carved, and drilled. Unlike milling or turning, which rely on physical force and sharp cutting edges, EDM harnesses the controlled power of electrical sparks to erode material with exceptional accuracy. This article delves into the core principles of EDM and explores the various specialized machines that make this technology indispensable in modern workshops.

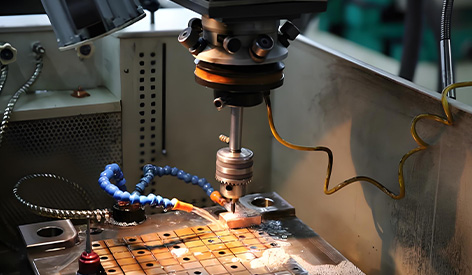

At its heart, all EDM operates on a simple yet powerful concept: thermal erosion. The process involves a tool (electrode) and a workpiece, both submerged in a dielectric fluid and separated by a tiny gap. A pulsating electrical current is passed between them, creating a series of rapid, controlled sparks. Each spark generates an intense, localized heat—reaching temperatures of 8,000 to 12,000 degrees Celsius—that vaporizes a microscopic amount of material from the workpiece. The dielectric fluid, typically a hydrocarbon oil or deionized water, serves a critical dual purpose: it instantly cools the vaporized material, flushing the microscopic debris away, and it acts as an insulator between sparks, preventing a continuous arc. This cycle of sparking and flushing repeats hundreds of thousands of times per second, allowing the electrode to progressively sculpt the workpiece into the desired form without any physical contact. This makes EDM ideal for machining hardened steels, titanium, carbides, and other super-tough alloys that would easily damage or wear down conventional tools.
Wire EDM Machine: Precision Cutting Reimagined
Imagine slicing through a block of hardened steel as if it were a loaf of bread, but with a level of precision measured in microns. This is the capability of a Wire EDM Machine. Instead of a solid electrode, this system uses a continuously fed, thin brass or stratified wire as the electrode. The wire, typically ranging from 0.02mm to 0.33mm in diameter, travels from a supply spool through the workpiece and onto a take-up spool. The cutting path is controlled by computer numerical control (CNC), guiding the wire along a programmed trajectory. As the wire never touches the workpiece, it can produce complex two-dimensional profiles, intricate shapes, and sharp internal corners with unparalleled accuracy. The primary application for a Wire EDM machine is in the production of stamping dies, extrusion dies, and fine blanking tools, where exceptional dimensional stability and surface finish are paramount. It is essentially a highly sophisticated EDM cutting machine that operates with a consumable wire electrode.

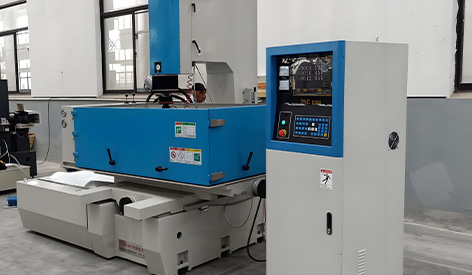

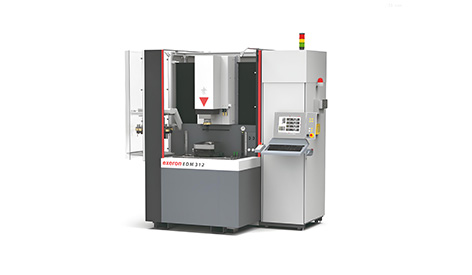

Sinker EDM Machine: Forging Complex Cavities and Forms
Also known as Ram EDM, Conventional EDM, or Volume EDM, the Sinker EDM Machine (often referred to as a die sinker) takes a different approach. Here, a pre-machined electrode, custom-fabricated from graphite or copper, is forged into the inverse shape of the desired cavity in the workpiece. This electrode is mounted on a ram and is precisely fed into the workpiece along a single vertical axis. During operation, the intricate details of the electrode are burned into the material. This process is exceptionally well-suited for creating complex three-dimensional geometries, such as plastic injection molds, die-casting dies, and forging dies. The surface finish achieved by a sinker EDM machine can be remarkably fine, often eliminating the need for secondary polishing. The versatility of this method is why many simply call it an EDM spark erosion machine, as it perfectly embodies the core erosive process. The entire setup is a classic example of an EDM spark machine where the spark gap and flushing parameters are meticulously controlled to achieve the final form.
The Rise of CNC EDM Machine Technology
The evolution of EDM is inextricably linked to the integration of Computer Numerical Control. A modern CNC EDM machine represents the pinnacle of automation and precision in this field. For sinker EDMs, CNC allows for complex orbiting patterns, where the electrode can move in multiple axes (X, Y, Z, and even C) relative to the workpiece. This orbiting motion dramatically improves flushing efficiency, enables the use of simpler and smaller electrodes to create larger cavities, and produces superior surface finishes. In the context of wire EDM, CNC is fundamental, dictating the precise path of the wire to create intricate parts. The advent of the CNC EDM machine has transformed EDM from a specialized craft into a highly repeatable, automated manufacturing process, capable of running unattended for extended periods.

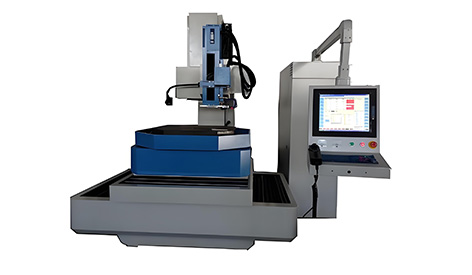

Drilling and Small-Hole EDM: Pushing the Limits of Depth and Diameter
When the requirement calls for deep, small-diameter, or angled holes in tough materials, conventional drills are prone to breakage and wander. This is where the EDM drilling machine excels. Utilizing a rotating tubular electrode made of brass or copper-tungsten, this specialized machine can drill holes as small as 0.1mm in diameter with high depth-to-diameter ratios. A high-pressure jet of dielectric fluid is forced through the hollow electrode, ensuring efficient debris removal from the deep hole. The EDM drilling machine is indispensable for creating starting holes for wire EDM, cooling channels in injection molds, and fuel injection nozzles in aerospace engines. It is a focused and powerful application of the EDM principle.
Choosing the Right EDM Process for Your Application
Selecting the appropriate EDM technology is crucial for project success. The choice fundamentally hinges on the geometry of the part to be produced.
Choose Wire EDM: For through-holes, complex 2D profiles, and punches where a through-cut is acceptable. Think of it as an EDM cutting machine for contours.
Choose Sinker EDM: For blind cavities, complex 3D shapes, and textures that need to be imparted onto a surface, such as a mold for a plastic gear.
Choose EDM Drilling: For creating small, deep, or angled holes that would be impossible or inefficient with mechanical drills.
The Future of EDM Spark Erosion
The future of EDM spark erosion technology is bright, focused on enhanced automation, improved energy efficiency, and even greater precision. Developments in additive manufacturing are being leveraged to create complex, conformal-cooled electrodes for sinker EDM. Adaptive control systems that automatically optimize sparking parameters in real-time are becoming standard, reducing operator dependency and improving consistency. Furthermore, the integration of EDM units into larger manufacturing cells and the use of robotic part loading/unloading are pushing the boundaries of lights-out manufacturing.
In conclusion, Electrical Discharge Machining remains a cornerstone of advanced manufacturing. From the precise cuts of a wire EDM machine to the complex cavities formed by a sinker EDM machine, and the specialized holes created by an EDM drilling machine, this technology provides solutions where others fall short.
