Micrometer vs Caliper: Which Tool Prevents CNC Scrap?

Views: 270     Author: Allen Xiao     Publish Time: 2025-09-19      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Procurement managers hemorrhage massive non-recurring capital when quality assurance teams accept out-of-tolerance components based on flawed analog tool readings. Relying on basic sliding calipers to verify aerospace bearing journals guarantees catastrophic assembly failures on the final production floor. Exacting metrology dictates the absolute survival rate of any tight-tolerance hardware launch.

Financial sheet calculating CNC scrap costs caused by inaccurate measurement tool readings

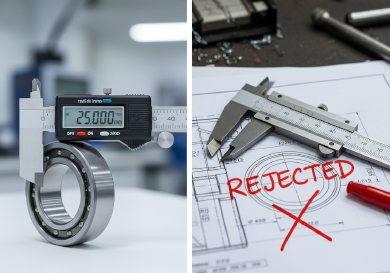

Choosing between a Micrometer and a Caliper represents the ultimate dividing line between amateur job shops and elite fabrication facilities. Calipers offer versatile, rapid speed for general dimensions, while micrometers provide the uncompromising micron-level resolution required for severe kinetic press-fits. Confusing these two distinct measurement philosophies destroys geometric dimensioning and tolerancing (GD&T) integrity.

Mastering this specific metrology decision matrix entirely prevents crippling financial scrap. Quality engineers must brutally evaluate Abbe's principle, thermal soak deformation, and human-induced parallax errors. Validating complex geometries relies strictly on deploying the correct mechanical anvil against the designated raw material.

content:

How Do Micrometer Readings Differ From Digital Calipers?

When Should You Use Vernier Micrometers for CNC Parts?

When MUST You Avoid Standard Micrometers in QA Labs?

What Causes Measurement Failures During Spindle Operation?

Analog vs Digital Micrometers: What Are the True Costs?

How Does Jucheng Execute Quality Control in Shenzhen?

What Are the Most Critical CNC Measurement FAQs?

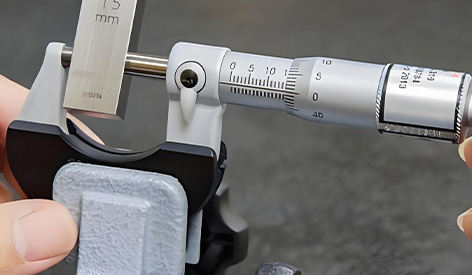

How Do Micrometer Readings Differ From Digital Calipers?

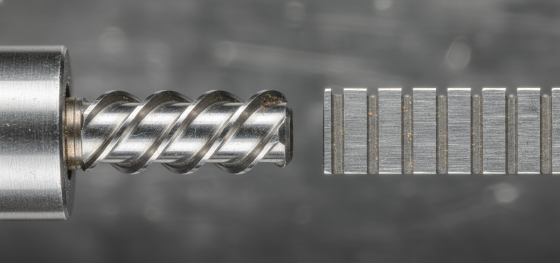

Mechanical mechanism comparison between a micrometer precision threaded spindle and a caliper sliding rack

Micrometers utilize a highly calibrated threaded spindle to generate mechanical force, delivering 0.001mm resolution that effectively quadruples the physical accuracy of standard sliding calipers.

Calipers inherently violate Abbe's principle of dimensional metrology. The measurement scale of a caliper sits entirely offset from the actual measuring jaws, inducing microscopic angular deflection and Abbe error when applying clamping pressure. This structural bending renders calipers highly unreliable for sub-micron aerospace inspections.

Conversely, an outside micrometer aligns the measuring axis perfectly with the measurement scale along its rigid C-frame. The rotating thimble translates rotational motion into linear displacement across an ultra-precise internal screw thread. This in-line mechanical advantage eliminates jaw deflection, allowing machinists to definitively verify strict interference fits.

When Should You Use Vernier Micrometers for CNC Parts?

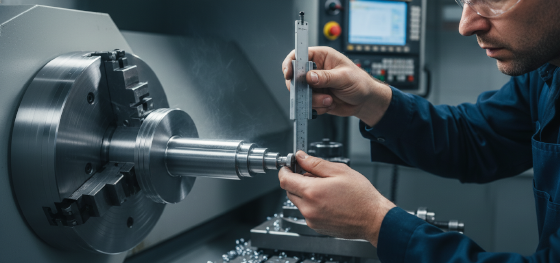

CNC operator using an outside micrometer to verify the outer diameter tolerance of a steel drive shaft

Specify vernier micrometers exclusively for verifying external bearing journals, rigid cylindrical shafts, and critical outer diameters (OD) demanding absolute micron-level repeatability.

CNC lathe operators battle continuous tool wear during high-volume turning operations. As the carbide insert degrades microscopically, the component's outer diameter inevitably swells. Relying on a caliper to catch a 0.005mm dimensional drift guarantees failure. The micrometer's anvil locks securely onto the cylindrical curve, providing instant, irrefutable tool-wear feedback.

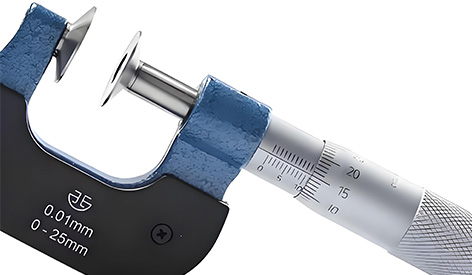

Heavy industrial applications require exact predictability. If a hydraulic piston rod measures slightly undersized, the high-pressure seals will blow out under kinetic stress. Quality assurance technicians must deploy dedicated 0-25mm and 25-50mm micrometer sets directly on the shop floor to mathematically intercept these machining deviations before the part leaves the chuck.

When MUST You Avoid Standard Micrometers in QA Labs?

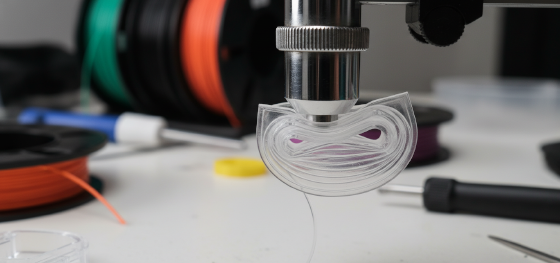

Catastrophic crushing deformation of a thin-walled plastic prototype caused by excessive micrometer spindle pressure

Standard micrometers physically fail when attempting to measure deep internal bores, asymmetrical 3D freeform contours, or highly flexible plastic prototypes that crush under spindle pressure.

Applying the ratchet stop mechanism on a thin-walled FDM 3D printed part or a soft urethane casting violently compresses the material. The measurement you read reflects the crushed, deformed state of the plastic, not its true geometric dimension. Engineers must utilize optical comparators or laser scanners to verify yielding substrates.

You cannot verify the internal pitch diameter of a tapped hole using an outside micrometer. Measuring complex internal geometries or checking the concentricity of two distinct features absolutely mandates an advanced Coordinate Measuring Machine (CMM). Forcing a micrometer into a non-linear application yields dangerously deceptive data.

What Causes Measurement Failures During Spindle Operation?

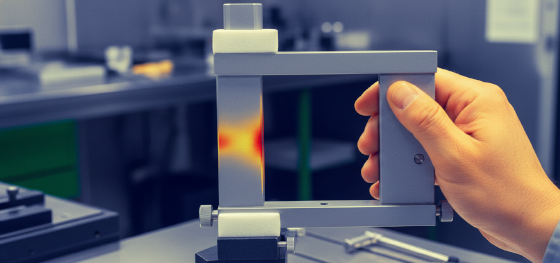

Thermal imaging showing body heat transferring into a micrometer frame causing thermal expansion and measurement errors

Thermal expansion fundamentally distorts both the raw metallic workpiece and the micrometer's steel frame when attempting to verify freshly machined, uncooled components.

Heavy CNC roughing passes pump massive kinetic heat into a steel billet. If a machinist immediately measures this glowing-hot part, the micrometer will register an artificially oversized dimension. Once the part returns to ambient room temperature, the metal shrinks violently, rendering the component entirely undersized and useless.

Human body heat poses an equally fatal risk. Holding the bare metal C-frame of a micrometer for ten minutes transfers immense thermal energy from the operator's hand directly into the tool. The frame expands, actively shifting the zero-point calibration. Elite inspectors hold micrometers strictly by the engineered plastic thermal insulator pads to prevent thermal soak.

Metrology Tool Type Typical Resolution Primary Vulnerability Optimal Industrial Application
Digital Outside Micrometer 0.001 mm Thermal expansion, narrow range Bearing journals, rigid OD press-fits
Analog Vernier Micrometer 0.010 mm Severe human parallax reading error Harsh shops (oil/coolant proof)
Digital Sliding Caliper 0.010 mm Abbe error (Jaw bending) Rapid multi-feature general inspection
Optical CMM 0.0001 mm Astronomical capital investment Complex 3D contour verification

Analog vs Digital Micrometers: What Are the True Costs?

Cost analysis board comparing expensive digital micrometers against the financial loss of scrapped parts due to analog reading errors

Digital micrometers demand higher initial capital and strict calibration maintenance but aggressively slash the severe financial costs of human reading errors during high-volume batch inspections.

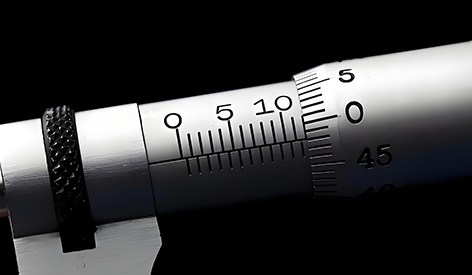

Equipping a machine shop with traditional analog vernier micrometers seems fiscally responsible until operator fatigue sets in. Misinterpreting the microscopic thimble lines by a single revolution means a machinist cuts 0.50mm too deep. Destroying a custom aerospace titanium billet over a misread scale instantly incinerates ten thousand dollars of raw material.

Upgrading to digital metrology removes parallax interpretation entirely. Operators read a bold LCD screen directly. Furthermore, high-end digital units feature Bluetooth output, beaming dimensional data instantly into Statistical Process Control (SPC) software. Eliminating manual data entry prevents catastrophic typo-induced assembly line recalls.

How Does Jucheng Execute Quality Control in Shenzhen?

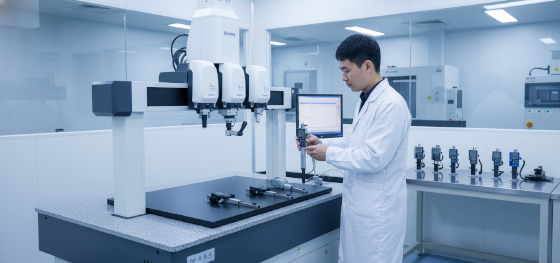

Senior inspector calibrating digital micrometers inside Jucheng's temperature-controlled quality assurance lab in Shenzhen

Operating within the Shenzhen precision manufacturing hub, Jucheng Precision centralizes advanced optical CMMs and calibrated digital metrology to brutally eliminate human measurement variances.

Navigating [2026] hardware procurement requires an absolute rejection of subjective tool readings. We do not rely on "feel." Every Mitutoyo micrometer on our 8000-square-meter shop floor undergoes rigorous daily verification against certified gauge blocks within a strict temperature-controlled 20°C laboratory.

Our quality assurance engineers intervene immediately during the first-article inspection phase. Backed by uncompromising ISO9001:2015 and IATF16949 protocols, our Free DFM reviews identify untestable geometries before production begins. We manufacture and verify intelligent hardware without MOQ restrictions, ensuring your exact CAD reality survives the shipping crate.

What Are the Most Critical CNC Measurement FAQs?

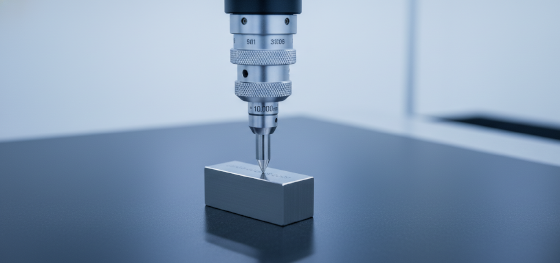

Micrometer undergoing morning zero-point calibration verification using a high-precision industrial gauge block

Resolving hardcore metrology uncertainties prevents devastating batch rejections when verifying tight geometric dimensioning and tolerancing specifications.

What is the purpose of the ratchet stop on a micrometer?
   The ratchet thimble guarantees consistent, uniform measuring force across multiple users. It prevents an aggressive machinist from over-tightening the spindle and physically crushing the anvil into the metal, which inherently distorts the final numeric reading and permanently damages the delicate internal screw threads.

How often must an industrial micrometer be calibrated?
   Elite ISO-certified facilities mandate daily zero-point verifications using an optical flat or gauge block before a shift begins. Full mechanical teardown, cleaning, and absolute recalibration by a certified third-party metrology lab must occur annually, or immediately if the tool is dropped onto the concrete floor.

Can an outside micrometer measure the thickness of automotive sheet metal paint?
   No. While it can measure the total thickness of the substrate plus the paint, it cannot isolate the coating depth. Measuring exact paint or anodizing thickness absolutely requires specialized ultrasonic or magnetic induction coating thickness gauges to prevent scratching the Class-A finish.
